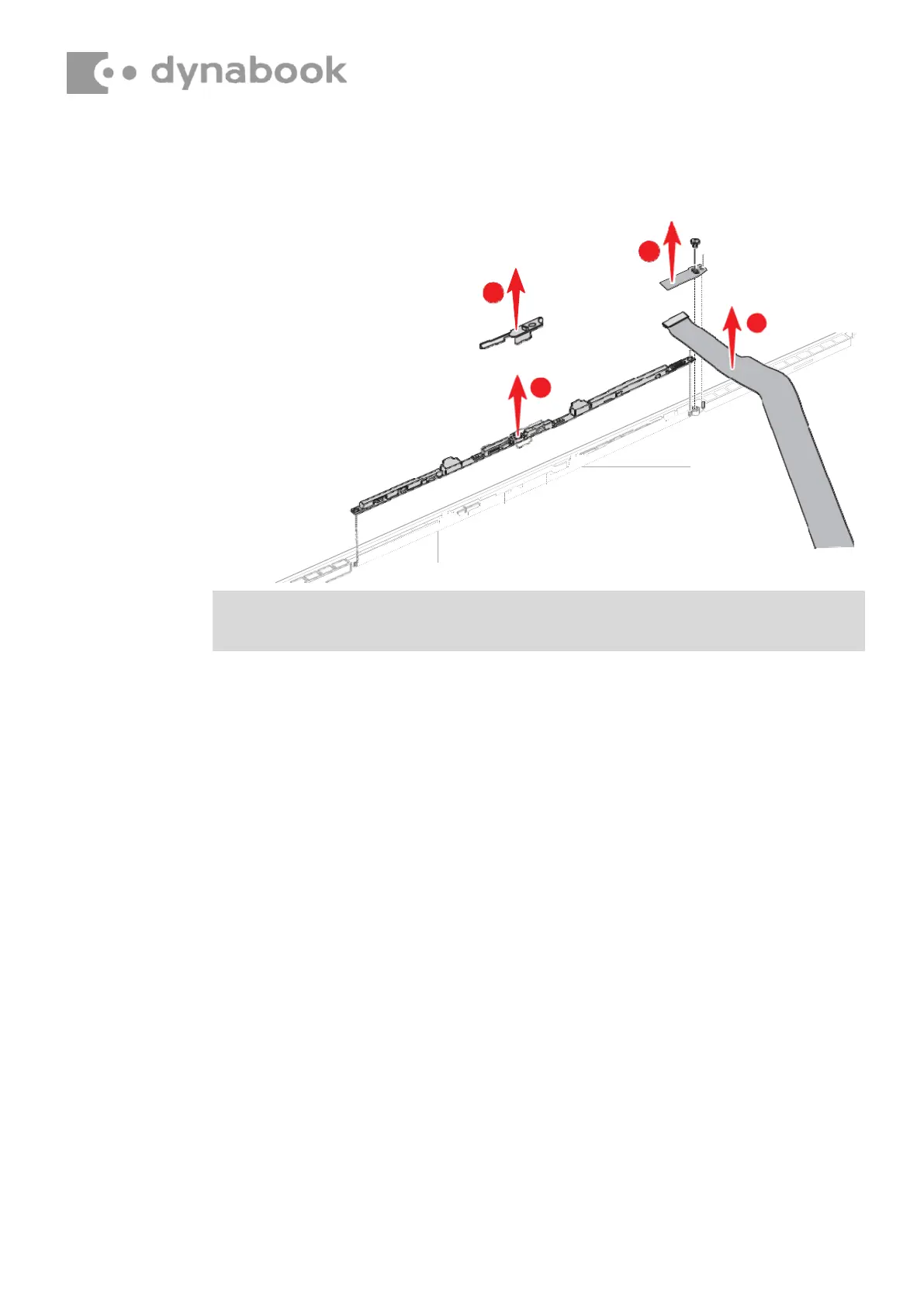

Figure 4-34 Removing the camera module (1)
4.22.2 Installing the Camera module
To install the camera module, follow the steps below.
1. Connect the Camera FPC to the connector on the camera module.
2. Peel off a protection sheet from a new camera module and stick the
new camera module to the LCD cover.
3. Set the Plate in place and secure it with the screw.
4. Set the Camera Shutter in place.
S1.4X2BT
2
Plate
1
Camera Shutter
3
4
Camera module
Camera FPC
Do not reuse the removed camera module. Be sure to use new camera
module.
