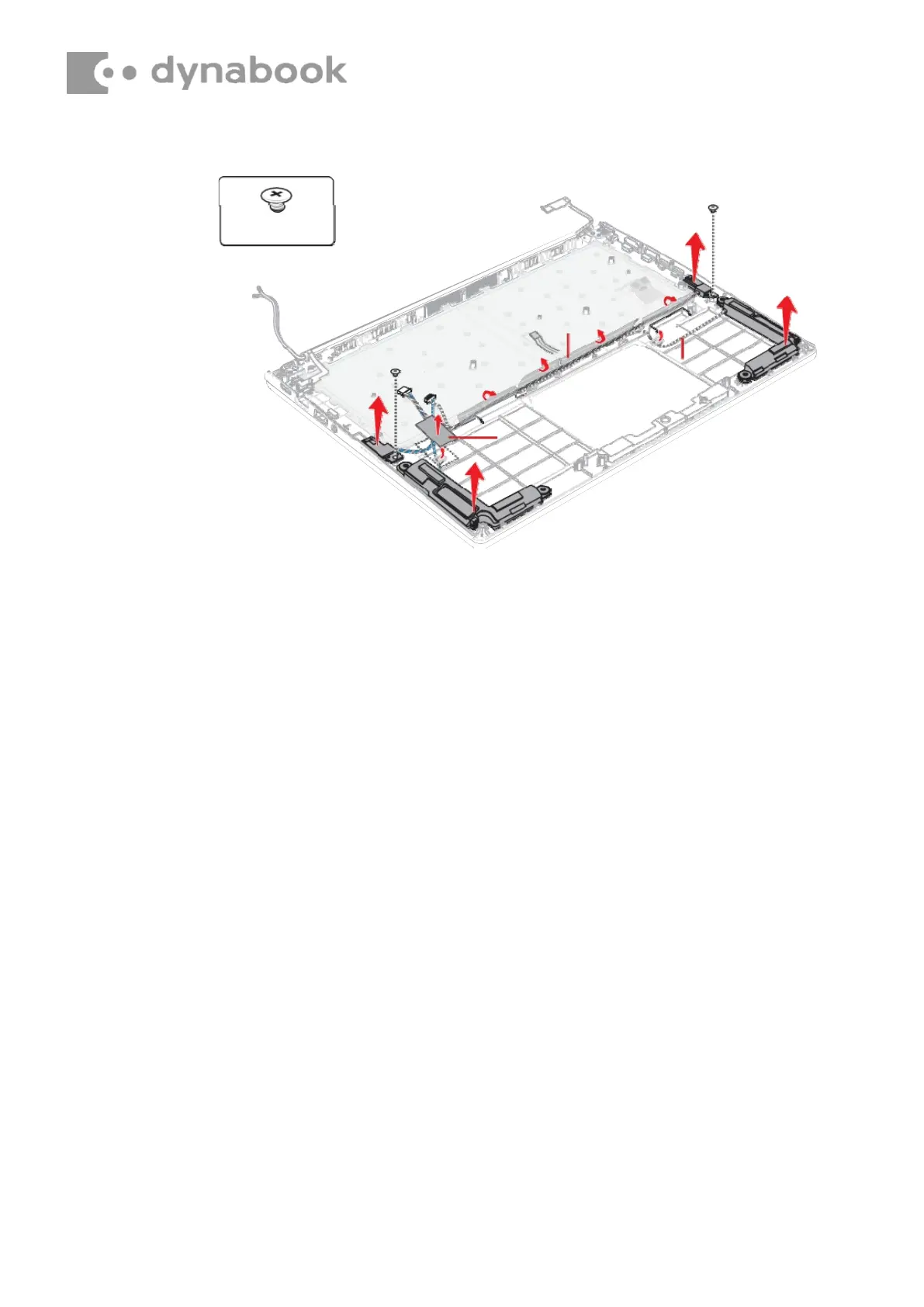

Figure 4-17 Removing the Speaker
4.17.2
Installing the Speaker
To install the Speaker, follow the steps below.
1. Set the speakers to the slots of the Cover Assembly and secure it with
the screws.
2. Arrange the Speaker harness under the guides and fix it with the new
INSU and stick tape.
3. Connect the Speaker harness to the connector CN6290 and CN6291
on the system board.
S2x3CT
INSU
Speaker harness
stick tape
