POWERMATE
3
38
6.5 Active 2-way stereo configuration
This example uses the internal power amplifier of the PowerMate to drive the HI/MID cabinets. The full-range signal is
fed via MASTER A OUT L/R to an active crossover, e. g. the DYNACORD DSP 260. The LO signal outputs of the crossover
are connected to an external power amplifier, driving the woofer cabinets. The signal of the crossover’s HI/MID-signal
outputs is fed back to the PowerMate’s internal power amplifier via POWER AMP INPUTS. Compared to the passive con-
figuration, the overall sound gains transparency and higher sound pressure levels are possible, since the HI/MID cabi-
nets do not have to deal with the low frequency signals.

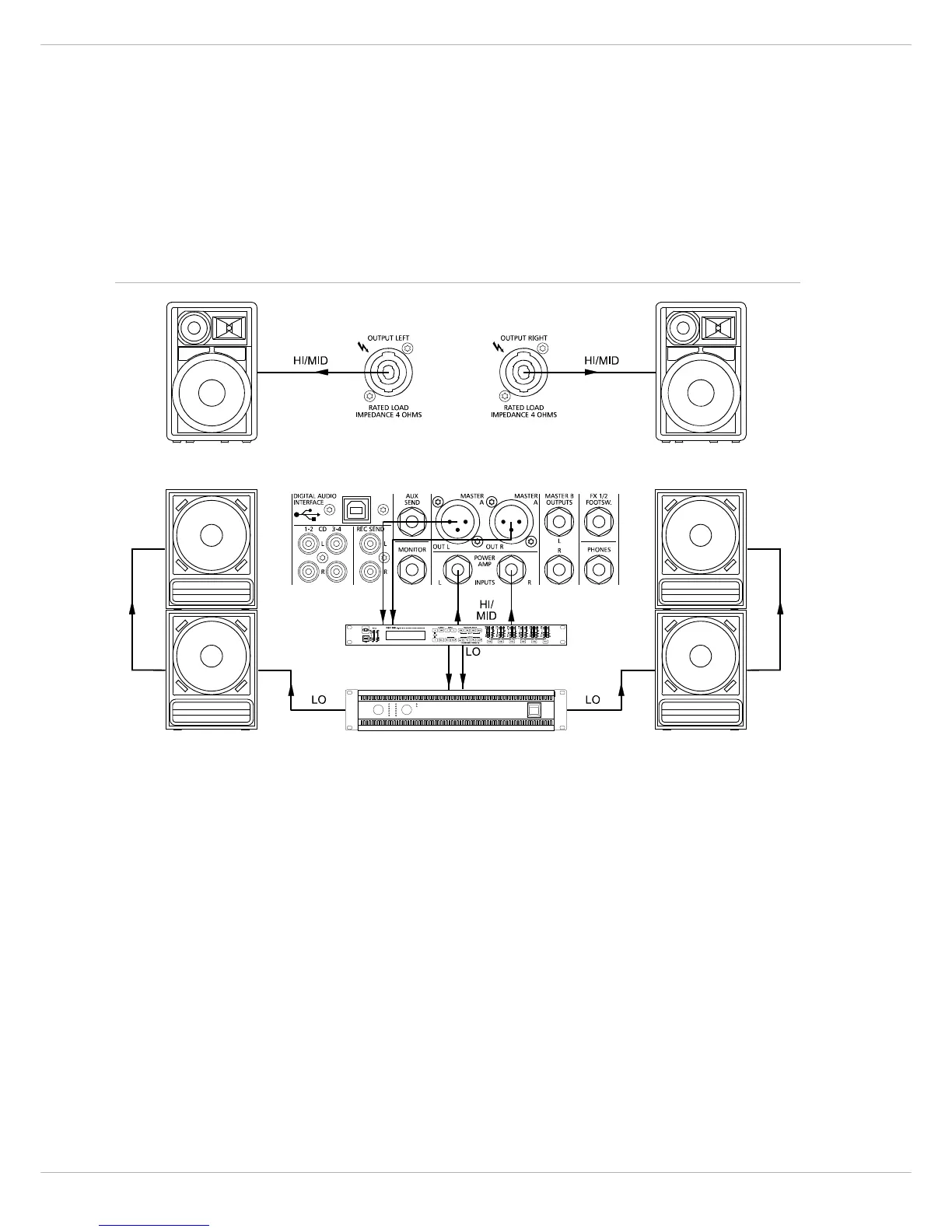

Illustration 6-5: Active 2-way stereo configuration
