Dynamic Rhino User Manual

Rhino to RHINO2 Conversion Guide Page 13

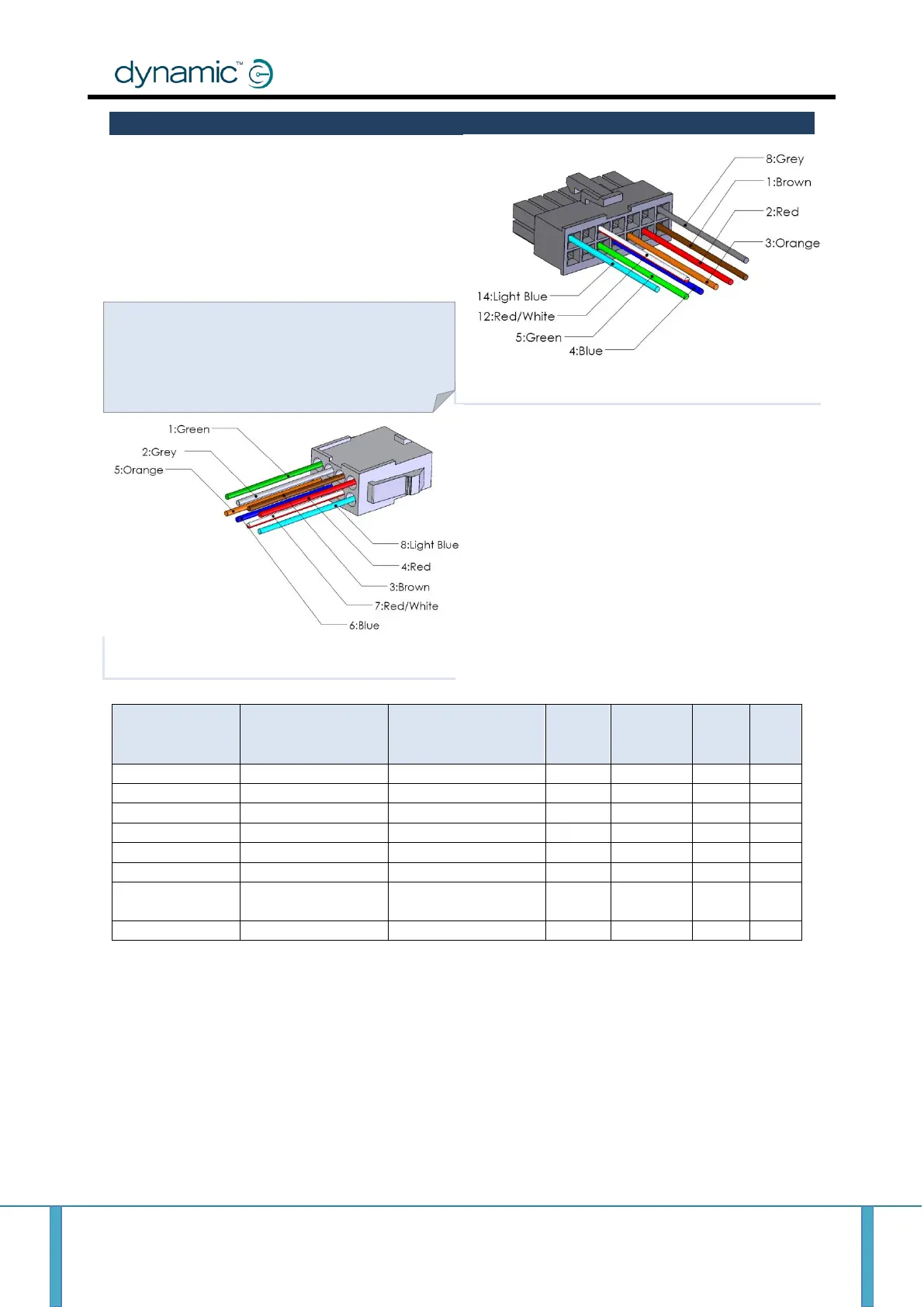

Install the logic cable adaptor
For all RHINO2 variants, connect the RHINO2
LOGIC ADAPT LOOM (part no., GLM51987)
between the RHINO2 controller (14-way
connector) and the existing tiller head
connector (8-way). The table below shows the
corresponding mapping between the two
connectors.
GLM51987: Fit to RHINO2 tiller connector
GLM51987: Fit to existing Rhino 8-way tiller
connector
Rhino
8-way
Logic Connector
RHINO2
14-way
Logic Connector
Function
Active
Slow To
Latch
Flash
Pin 1
Pin 5
Key switch, Status LED
-
-
-
-
Pin 2
Pin 8
Throttle -
-
-
-
-
Pin 3
Pin 1
Throttle Wiper
-
-
-
-
Pin 4
Pin 2
Throttle +
-
-
-
-
Pin 5
Pin 3
Beeper
-
-
-
-
Pin 6
Pin 4
Slow/Stop, SRW
Low
50%
No
No
Pin 7
Pin 12
Reverse Drive,
Actuator Select
Low
-
-
-
Pin 8
Pin 14
Charging Inhibit
Low
-
No
No
For more information, see the RHINO2
Installation Manual, section 3.9 and the
Logic connector section in this guide.
