29CA 252/302/402 M252EN6
EVERY 1000 HOURS OF OPERATION (Every six months)r)

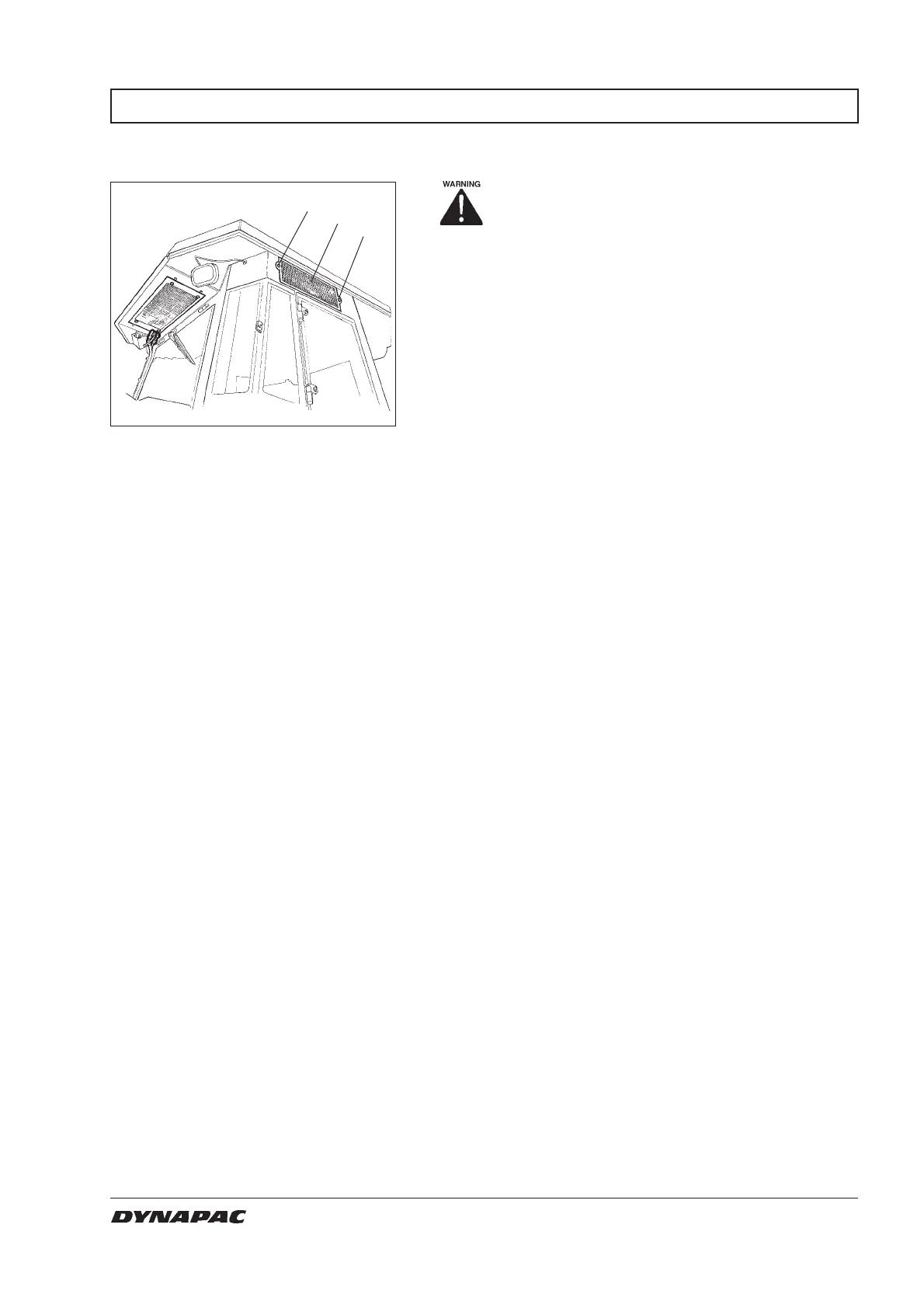

Fig. 49 Cab
1. Fresh air filter
2. Screw (x2)
Fresh air filter – Replacement
1
2
2
Use a stepladder to reach the filter (1).
As an alternative the filter can be reached
via the cab window on the right side.
Loosen the two screws (2) at the rear of the cab roof.
Take down the whole holder and remove the filter
insert.
Replace with a new filter.
It may be necessary to replace the filter more often if
the machine is used in a dusty environment.
