ELECTRICAL SYSTEM, FUSES
2, 3
4
1

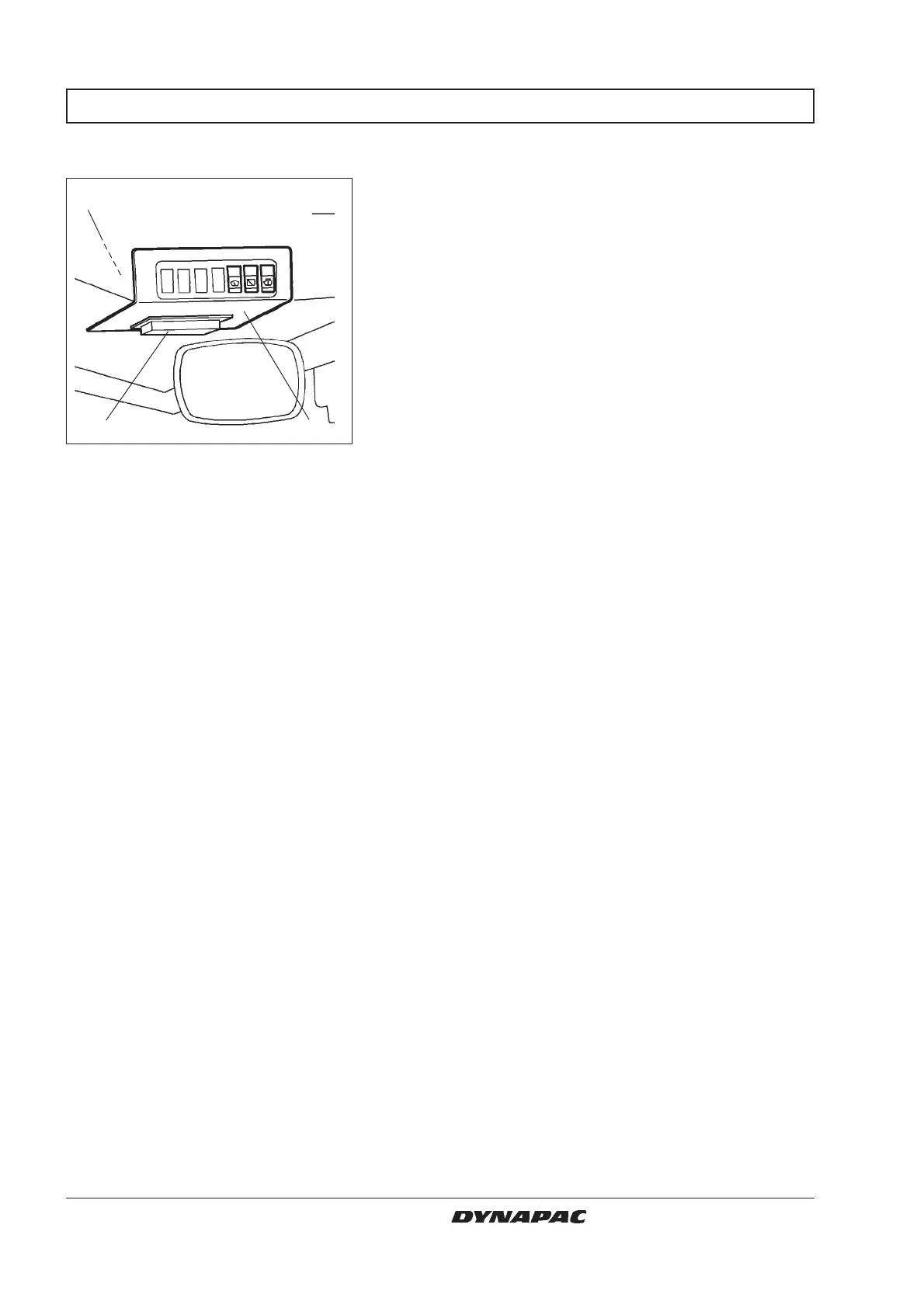

Fig. 66 Cab roof, front
1. Instrument plate
2. K30 Relay for air conditioner fan
3. K31 Relay for condenser fans + radio
4. Fuse box
Unscrew the instrument plate (1) to replace the relays
for air conditioner fan and condenser fan on the cab
roof, and radio.
Relays in cab
