Dynapac CP2100 - Semiannually (Every 1,000 hours of operation); Replace the main air filter; Replace the secondary air filter

Maintenance - Every 1,000 hours
2018-02-08 4812325555EN 93
Semiannually (Every 1,000 hours of
operation)
Park the roller on a level surface.
When checking and adjusting the machine,
always turn off the engine and make sure the
forward/backward lever is in the neutral
position.
When the engine is off in enclosed places,
make sure there is a good ventilation, to
prevent carbon monoxide poisoning.
Replace the main air filter
Replace the air filter (1) every 1,000 hours of operation, even if
it was not cleaned 5 times. For further information about the
filter's replacement, refer to the "Maintenance - Every 50 Hours
of Operation" section.
If the filter is not replaced when it is obstructed, the
engine will lose power and the exhaust will let the
smoke black, besides the risks of damaging the
engine.
Replace the secondary air filter
Replace the secondary air filter for a new one when you clean
or replace the main filter for the fifth time. The secondary air
filter shall not be cleaned.
To replace it for a new one, follow the instructions below:
1. Remove the old backup filter (1) from the holder, install a
new one and fix the components in the reverse order used
to remove them.
Replace the air dryer filter
To replace the filter, empty the compressed air and unscrew the
cartridge with suitable tool.
Clean and grease the sealing surfaces and the fixing screw.
Manually screw the cartridge until there is resistance, and
tighten half turn.
1

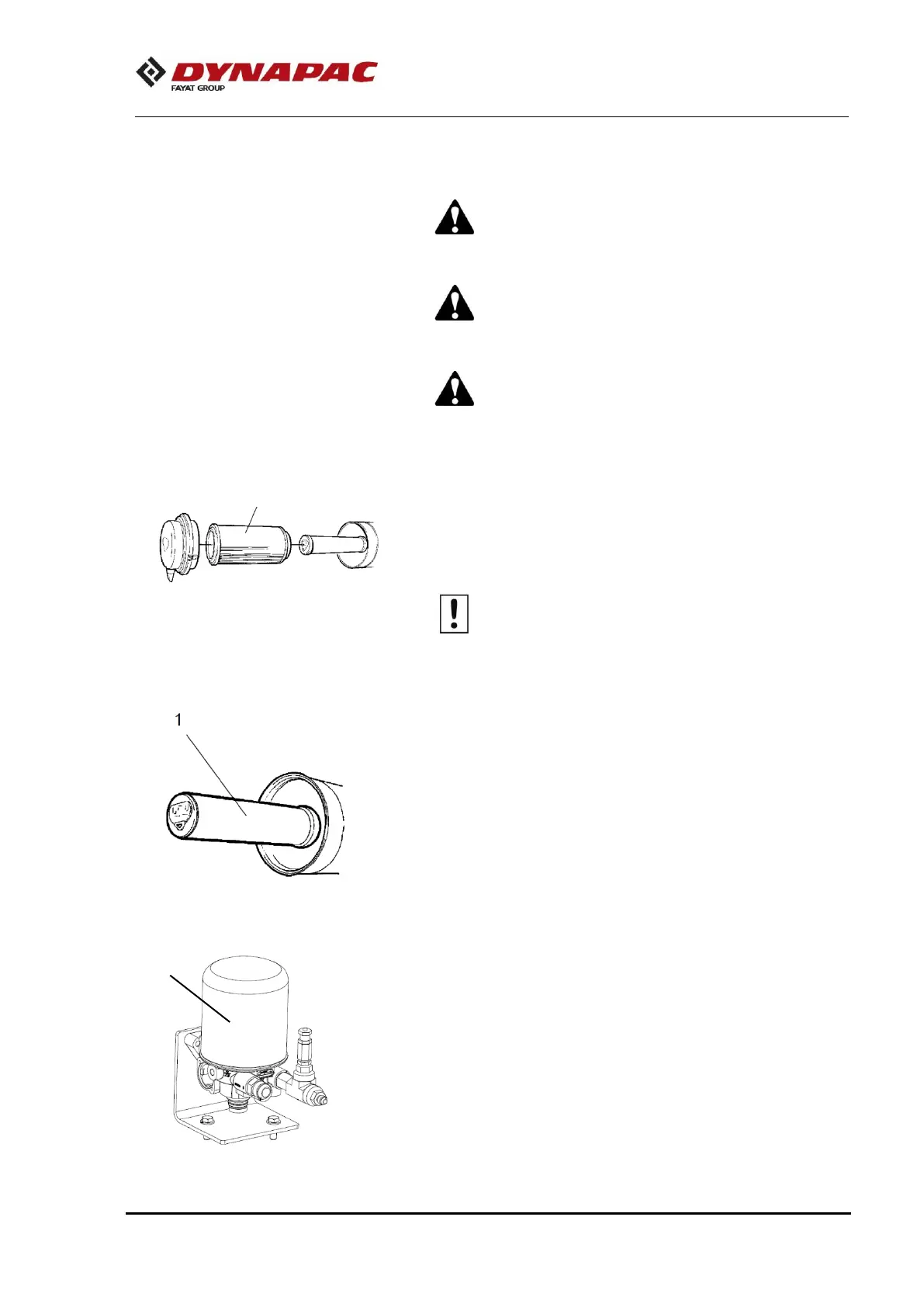

Fig. – Air filter
1. Main filter
Fig. – Air filter
1. Secondary filter
1
Fig. – Air dryer filter
1. Cartridge
