Electrical system

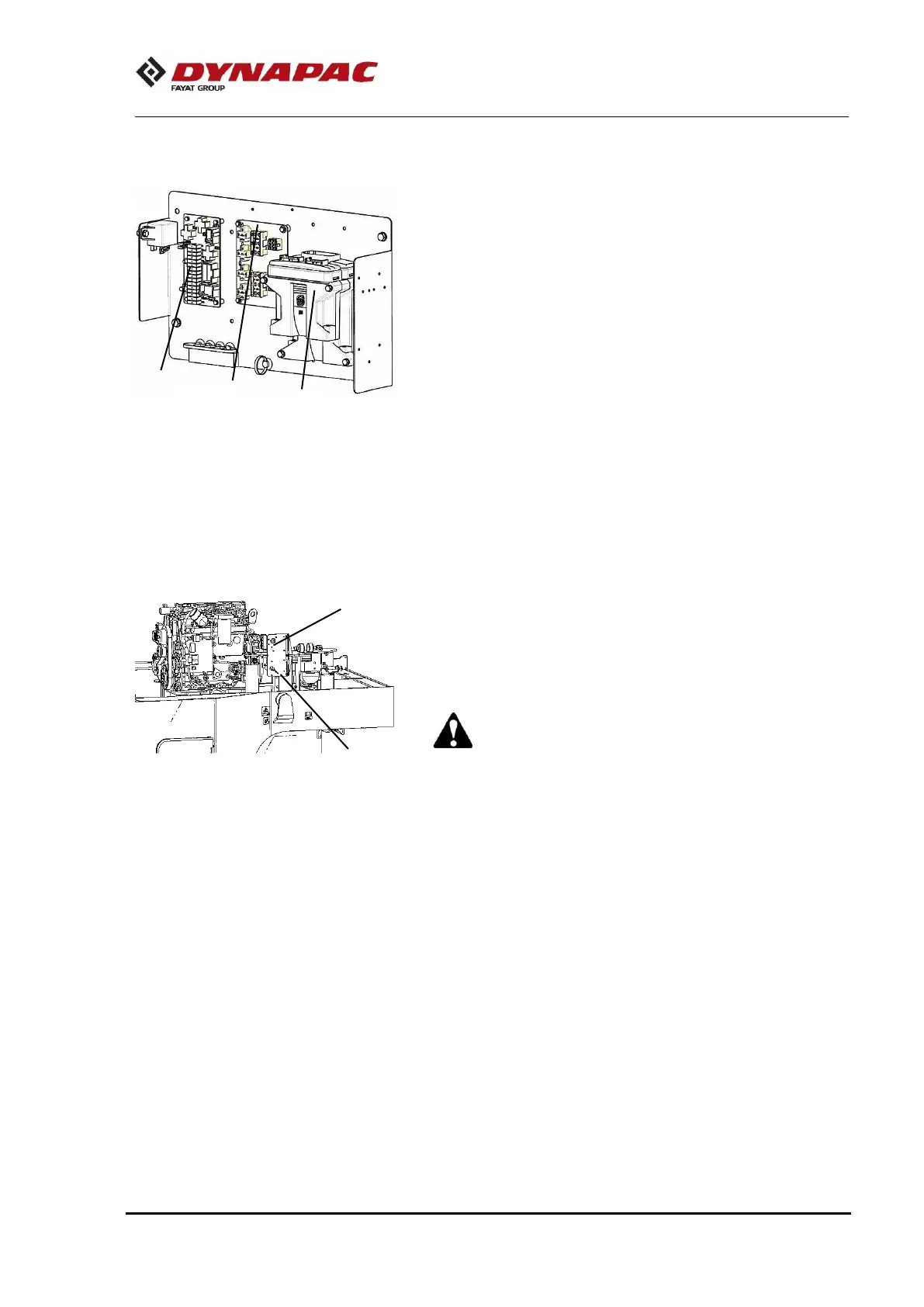

The machine's main control box (1) is located on the rear of the
operator platform. There is a plastic cap over it and the fuses.
A 24V jack is available in the plastic cap.
The fuses inside the engine compartment are located alongside
the battery master switch.
The roller is equipped with a 24V electrical system, supplied by
an AC alternator.
Connect the batteries to the correct polarities
(negative posts to the mass). NEVER
disconnect the cable between the battery and
the alternator when the engine is operating.
