Dynapac CP2700 - Operator Station Controls Overview; Control Panel, Side Panel, Keyboard

Identification plates
18 4812325557EN 2018-02-19
Instruments/controls
Control panel, side panel and command
keyboard.
1. Ignition key
2. Forward/reverse lever
3. Command keyboard
4. Direction lights (OPTION)
5. Warning lights
6. High beam lights (OPTION)
7. "+" increase in the tire pressure (OPTION)
8. "-" decrease in the tire pressure (OPTION)
9. High/low speed
10. "MAN" manual sprinkler (OPTION)
11. "AWC" automatic sprinkler (OPTION)
12. "+" increase of the sprinkler interval (timer) - OPTION
13. "-" decrease of the sprinkler interval (timer) - OPTION
14. Working lights (OPTION)
15. Horn
16. Emergency stop button
17. Eco-mode
18. Enable regeneration (Tier iV engine)
19. Disable regeneration (Tier iV engine)
20. Hazard warning lights (OPTION)
21. Rotating beacon (OPTION)
22. Control panel
23. Function buttons (5)
24. Brake test pedal
25. Parking brake
26. Edge cutter (OPTION)
27. Edge cutter sprinkler(OPTION)

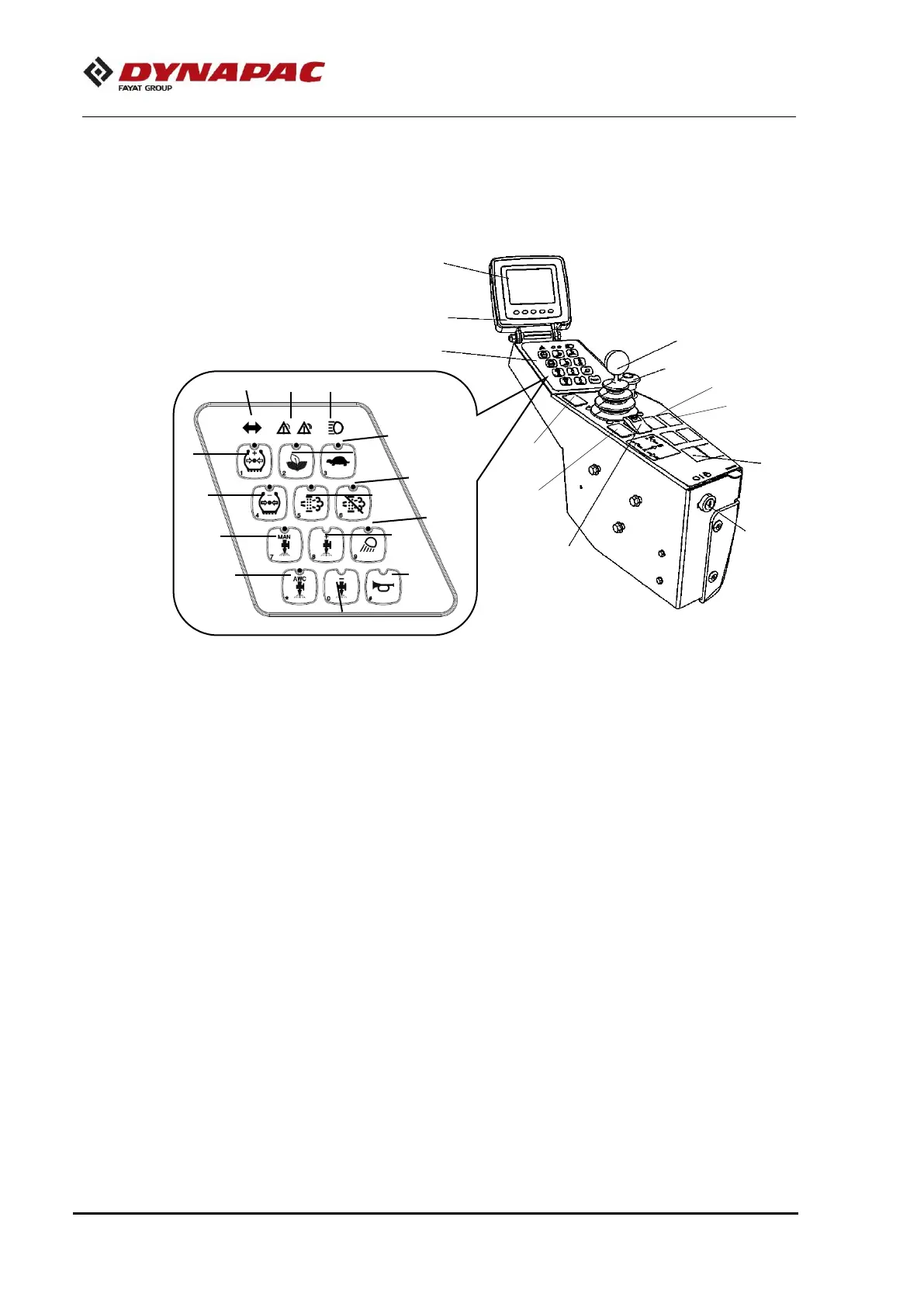

Fig. Control panel, side panel and command keyboard.
1
2
3
4
5
6
7
8
10
11
13
15
12
18
17
9
19
14
20
21
22
23
25
24
16
26
27
