Maintenance and lubrication points
2018-02-19 4812325557EN 69
Maintenance and lubrication points
Read carefully this manual section before carrying out
any maintenance or lubrication on the machine.
Always check the areas around and under the
equipment. It is an easy way to detect earlier leakages
and possible damages.

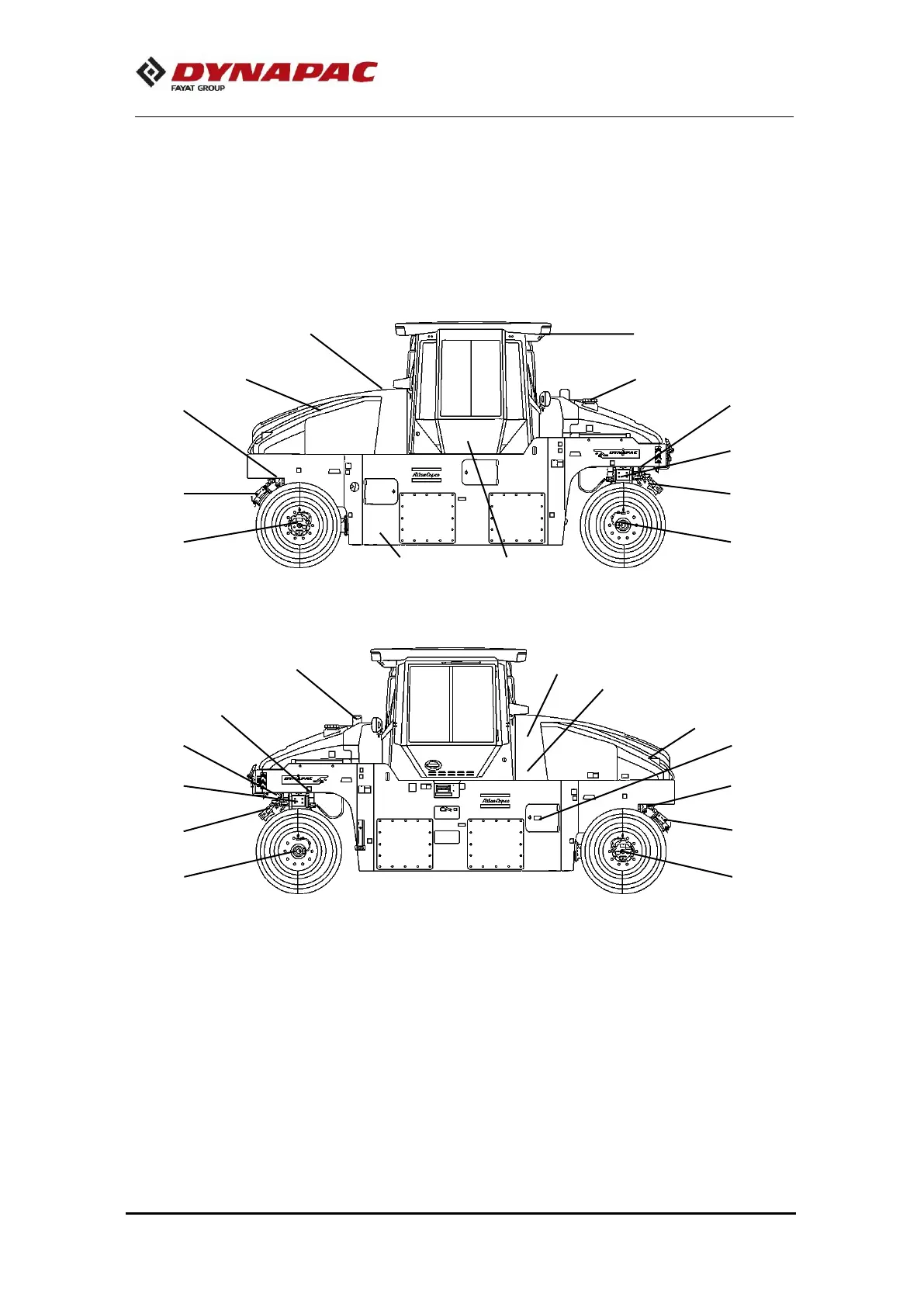

Fig. Service and lubrication points.
1. Engine oil
9. Coolant
17. Cab air filter
2. Oil filter
10. Engine air filter
18. Cab air conditioning
3. Fuel filter
11. Fuel supply
19. Edge cutter
4. Hydraulic oil filter
12. Scrapers
20. Lower pivot bearing
5. Hydraulic oil level
13. Water supply system
21. Upper pivot bearing
6. Hydraulic oil supply
14. Sprinkling system
22. Pivot bearing
7. Hydraulic oil reservoir
15. Seat bearing
23. Wheel gear
8. Hydraulic oil cooler
16. Battery
9
4
1, 2, 3, 10
5, 6, 7
17, 18
14
21
12
14
12
23
20
13
8, 9
11
16
14
12
23
14
12
20
21
22
19
15
