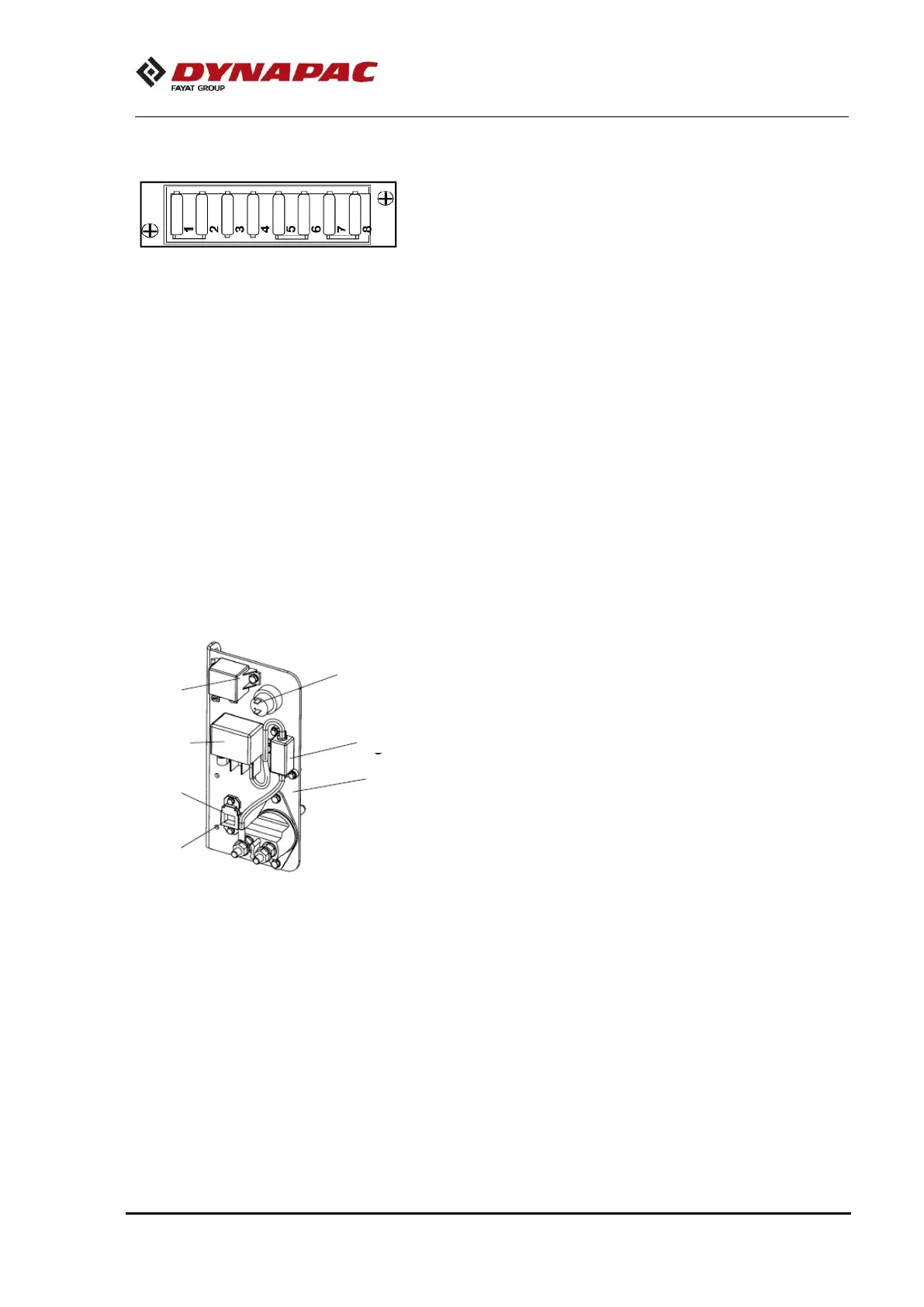

Cab fuse box
1. Indoors lighting (10A)
2. Radio/CD player (10A)
3. Air conditioning (15A)
4. Heating (15A)
5. Windscreen wiper/washers, front/rear (10A)
6. Windscreen wiper/washers, right (10A)
7. Empty
8. Empty
Main fuses panel
The main fuses panel is behind the battery master switch, on the
battery compartment.
1. General key
2. Pre-heating relay (120A)
3. F20 fuse (pre-heating 120A)
4. Starting relay (50A)
5. F13 fuses (engine ECU: 30A), F10 (main: 50A) and F11
(cab: 50A)
6. F5 fuse (cab/Radio/CD player 10A)
7. 24V jack
