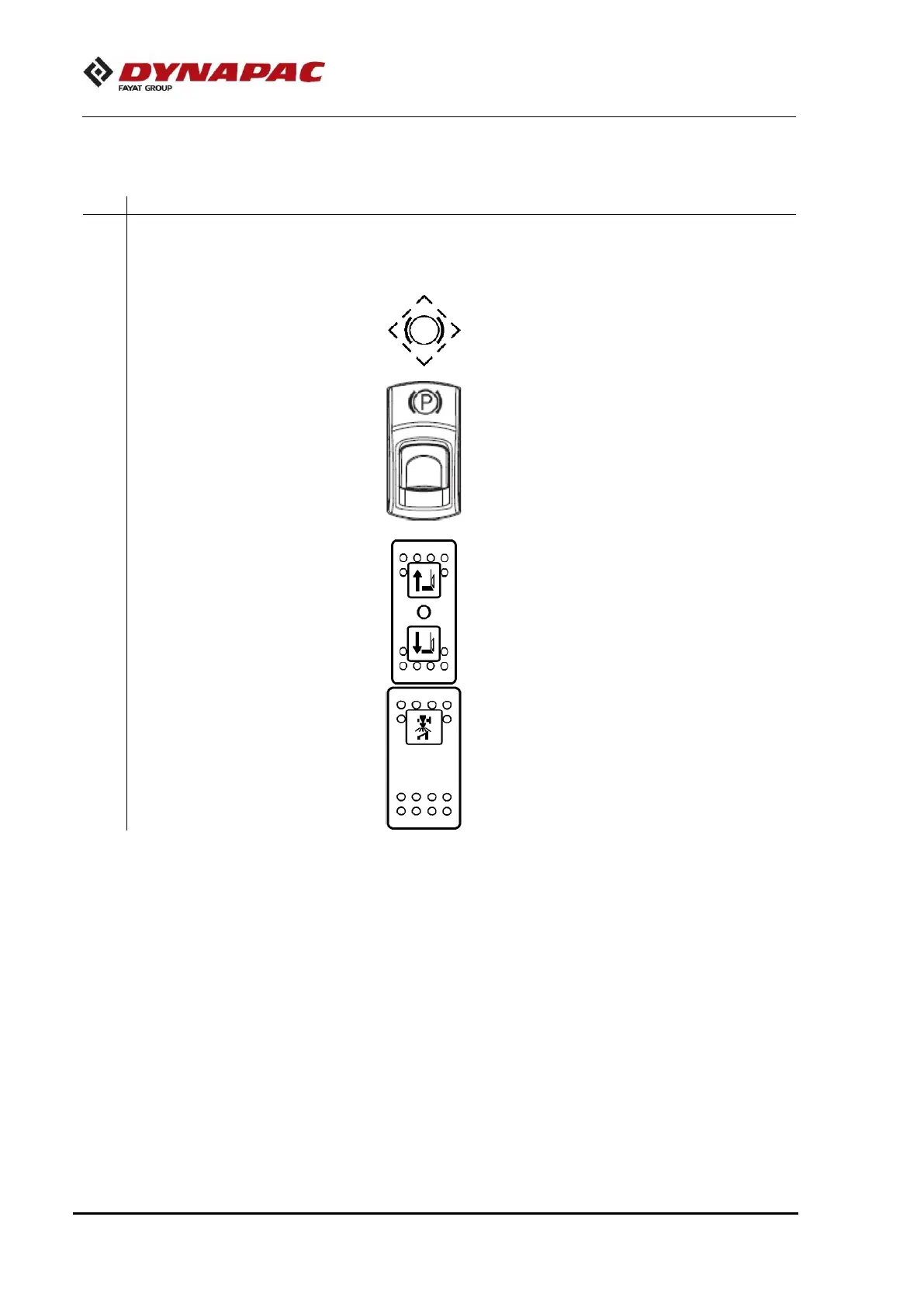

Instrument/controls - Description and function
22 4812325557EN 2018-02-19
Instrument/controls - Description and function
(cont.)
No.
DESIGNATION
SYMBOL
FUNCTION
22
Control panel
-
It shows the engine and transmission
functions. Refer to the Section: "Before
Starting".
23
Function buttons (5)
-
24
Brake test pedal
Press it to test the brakes.
25
Parking brake
When it is pressed, the parking brake is
activated.
To turn it off, slide the red part backwards
(towards you) and change the switch
position.
NOTE: to start the machine, the parking
brake shall be activated.
26
Edge cutter
The edge cutter can be moved up and down
when machine is in work postion.
27
Edge cutter sprinkler
Press to activate the edge cutter sprinkler.
