Instruments/controls - Cab
2018-02-19 4812325557EN 35

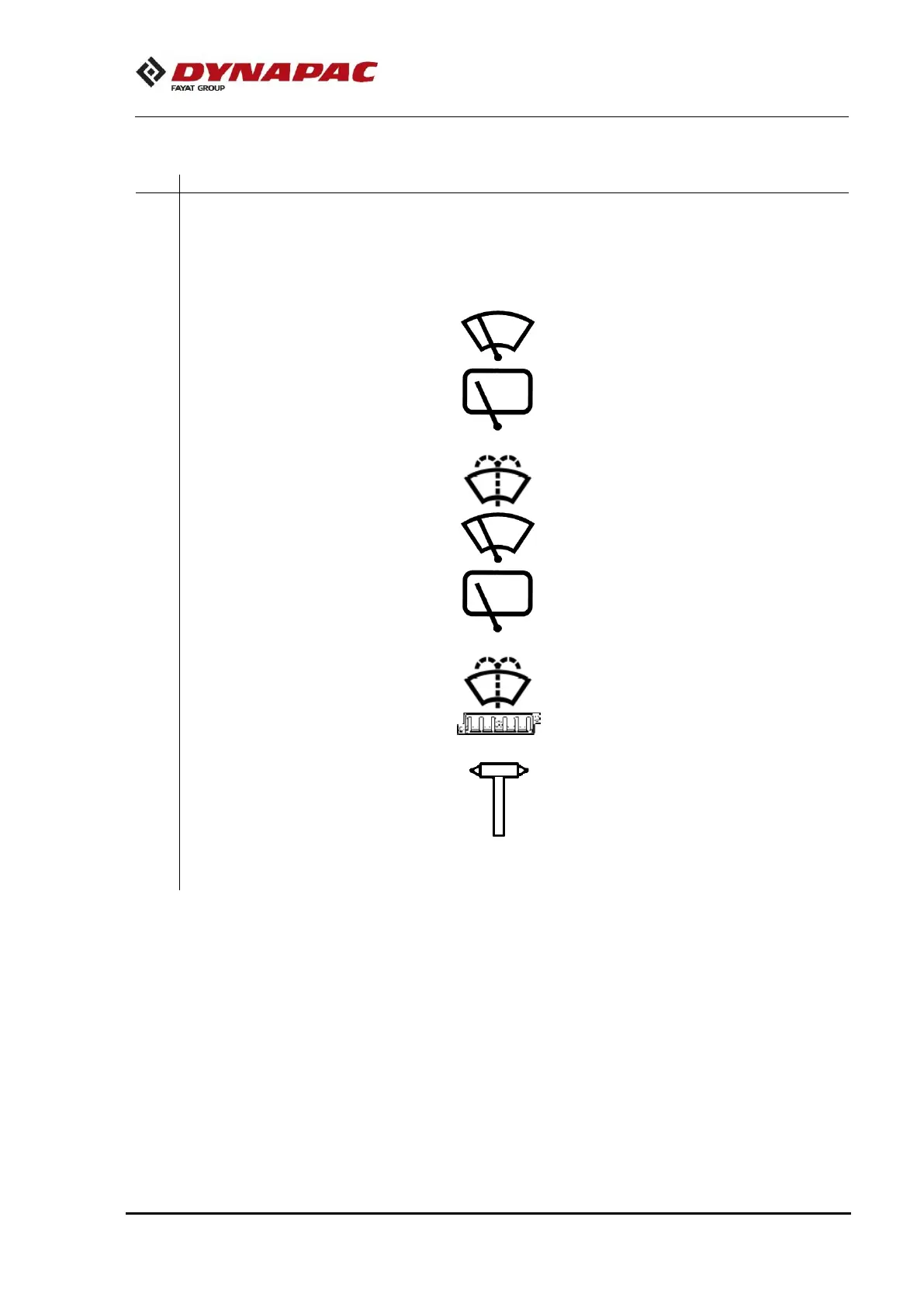

Instruments and controls - Cab
No.
DESIGNATION
SYMBOL
FUNCTION
1
Automatic Climate Control
-
Air conditioning automatic control (see
A/C operation for detail).
2
Front wiper, intermittent
-
Intermittent function for front wiper.
3
Front wiper switch
Press to operate the front windshield
wiper.
4
Rear wiper switch
Press to operate the rear windshield
wiper.
5
Front and rear windshield washers
switch
Press the top to activate the front
washers. Press the bottom to activate the
rear washers.
6
Asymmetric front wiper switch
Press to operate the front side windshield
wiper.
7
Asymmetric rear wiper switch
Press to operate the rear side windshield
wiper.
8
Asymmetric side windshield
washers switch
Press the top to activate the front side
washers. Press the bottom to activate the
rear side washers.
9
Fuse box
Contains fuses from the electric system
in the cab.
10
Hammer for emergency exit
If it is necessary to leave the cab during
an emergency, release the hammer and
break the right side windows.
11
Defroster nozzle
-
Turn the defroster nozzle to direct the air
flow.
