Maintenance - Every 10 hours
76 4812325557EN 2018-02-19
Fill the water tanks
There are two filling caps above the water tank (1).
Unscrew the tank cap and fill with clean water. Do
not replace the filter.
1. Fill the tank; it holds 110 gal. (415 liters).
Only recommended additive: small quantity of
environmentally-friendly antifreeze.
Check the sprinkler system
Fill the tank with emulsion fluid, e.g. water mixed with 2% of
cutting fluid.
Check if the sprinkler injectors (3) are not blocked, and if
necessary, clean them, as well as the filter.
Check periodically if there is excessive wear on the
roller tires.
Do not add flammable fluids or those which are
hazardous to the environment in the emulsion
tank.
Clean the sprinkler injector
Dismantle the blocked nozzle by hand (1).
Use compressed air to clean the nozzle (1) and the strainer (2).
It is also possible to use the spare parts and to clean the blocked
ones later on.
NOZZLE
COLOR
Ø (mm)
l/min
(2.0 bar)
gal./min
(40 PSI)
Standard
Yellow
0.8
0.63
0.20
Option
Blue
1
1
0.31
Option
Red
1.2
1.25
0.39
Option
Brown
1.3
1.63
0.50
After checking and cleaning, turn on the system and inspect if it
is working correctly.
Use protective goggles when working with
compressed air.

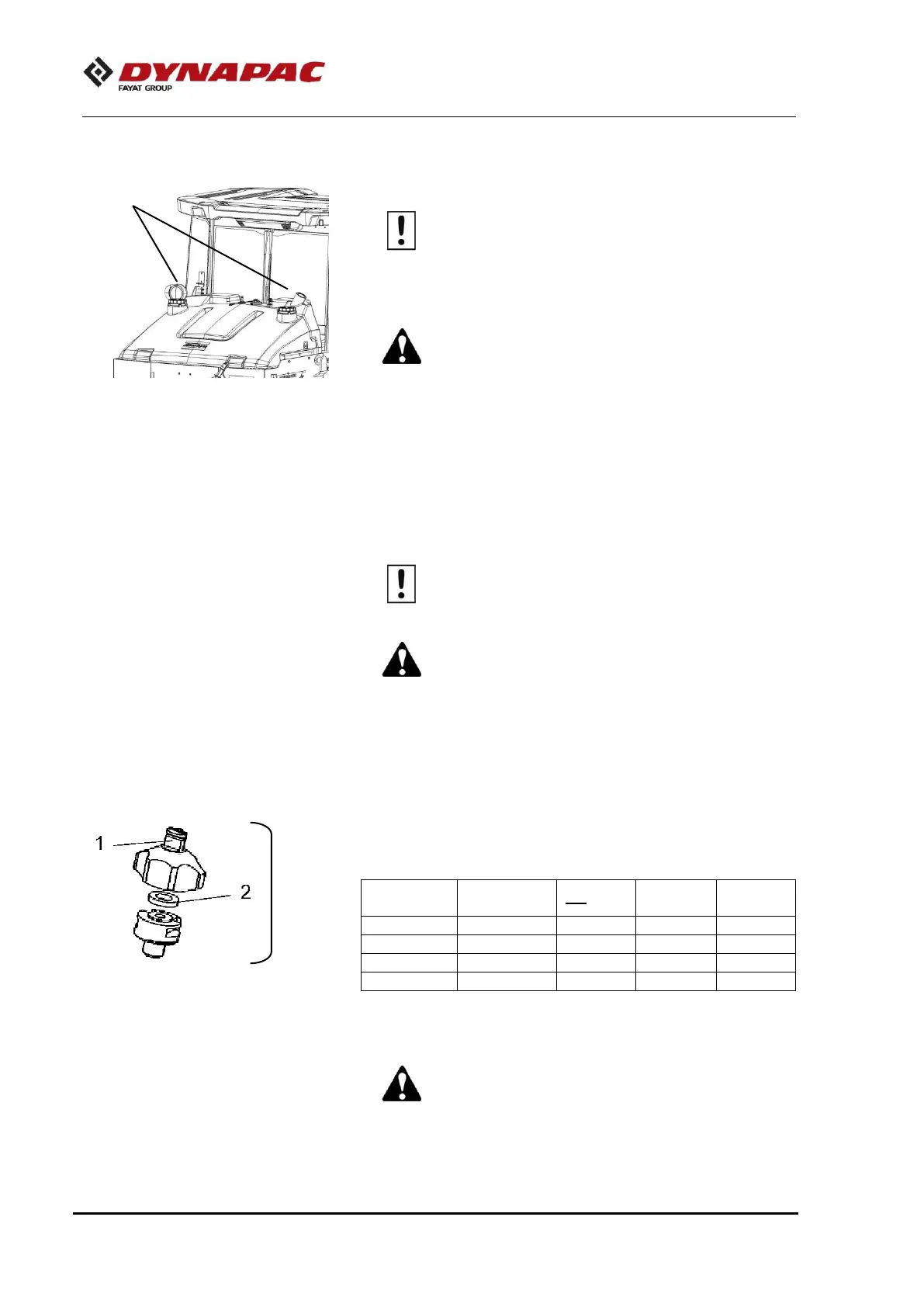

Fig.– Sprinkler injector
1. Nozzle
2. Strainer
3. Sprinkler injector assembly
1
Fig. - Filling the water tanks
1. Caps
3
