Dynaudio 9S User Manual

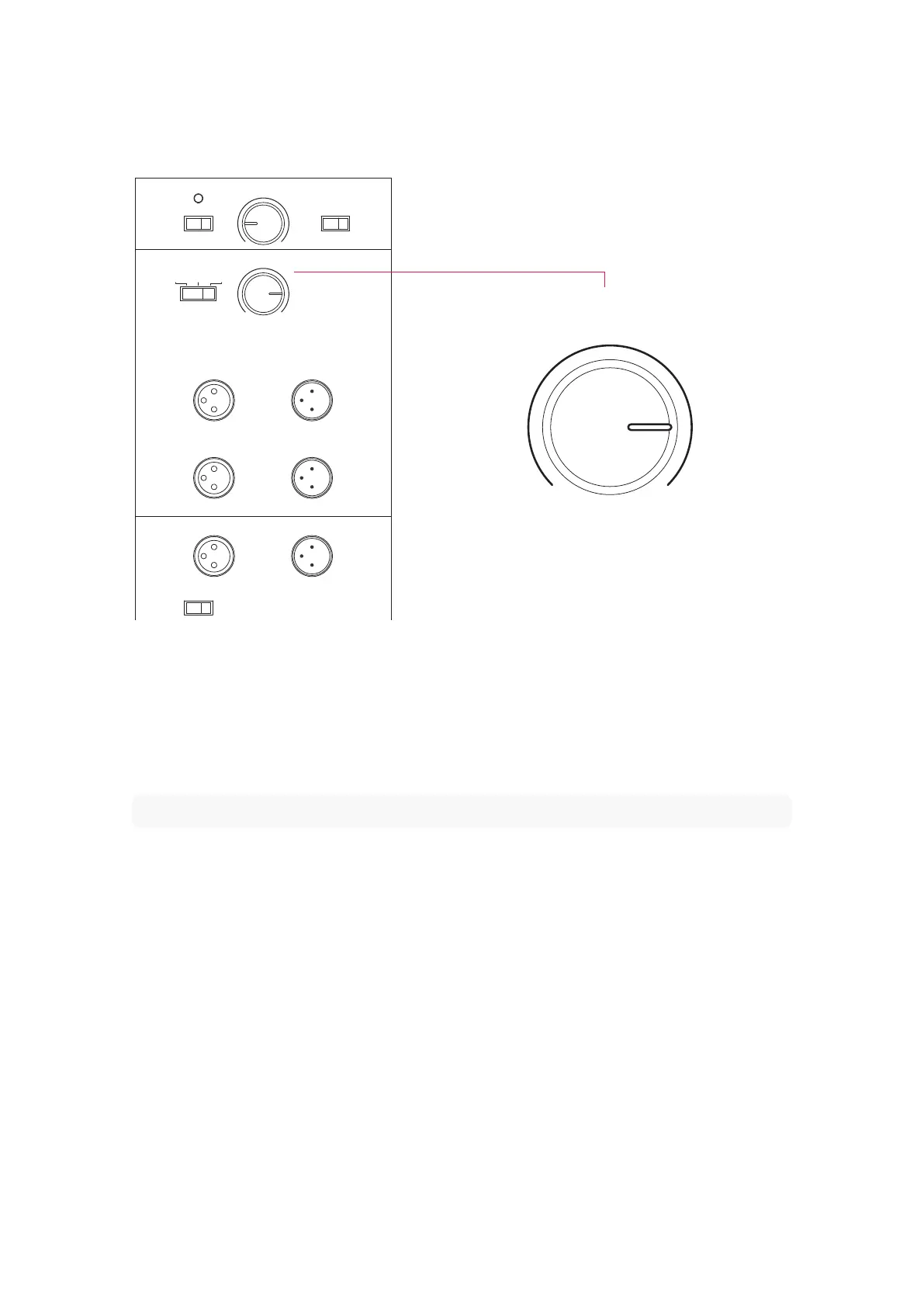

Selecting the subwoofer filter frequency (low-pass)
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
SUB Lowpass
50Hz 150Hz
60HzFlat 80Hz
The Low-pass control allows the frequency range of the subwoofer to be defined. Above the selected frequency
the sound level decreases rapidly. The correct setting of this filter frequency is important for a well balanced
combination of subwoofer and speakers.
To select the filter frequency
Set the Low-pass control to the desired frequency between 50 and 150Hz.
Note
The Low-pass only works on SAT/SUB input.
The subwoofer filter frequency may already be set by the source component bass management. Refer to the
operating manual of the source component. In general use only one bass management system.
You should also heed the instructions given in the operating manual of your loudspeakers.
16 Professional Audio Subwoofers User manual

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
