Dynaudio 9S User Manual

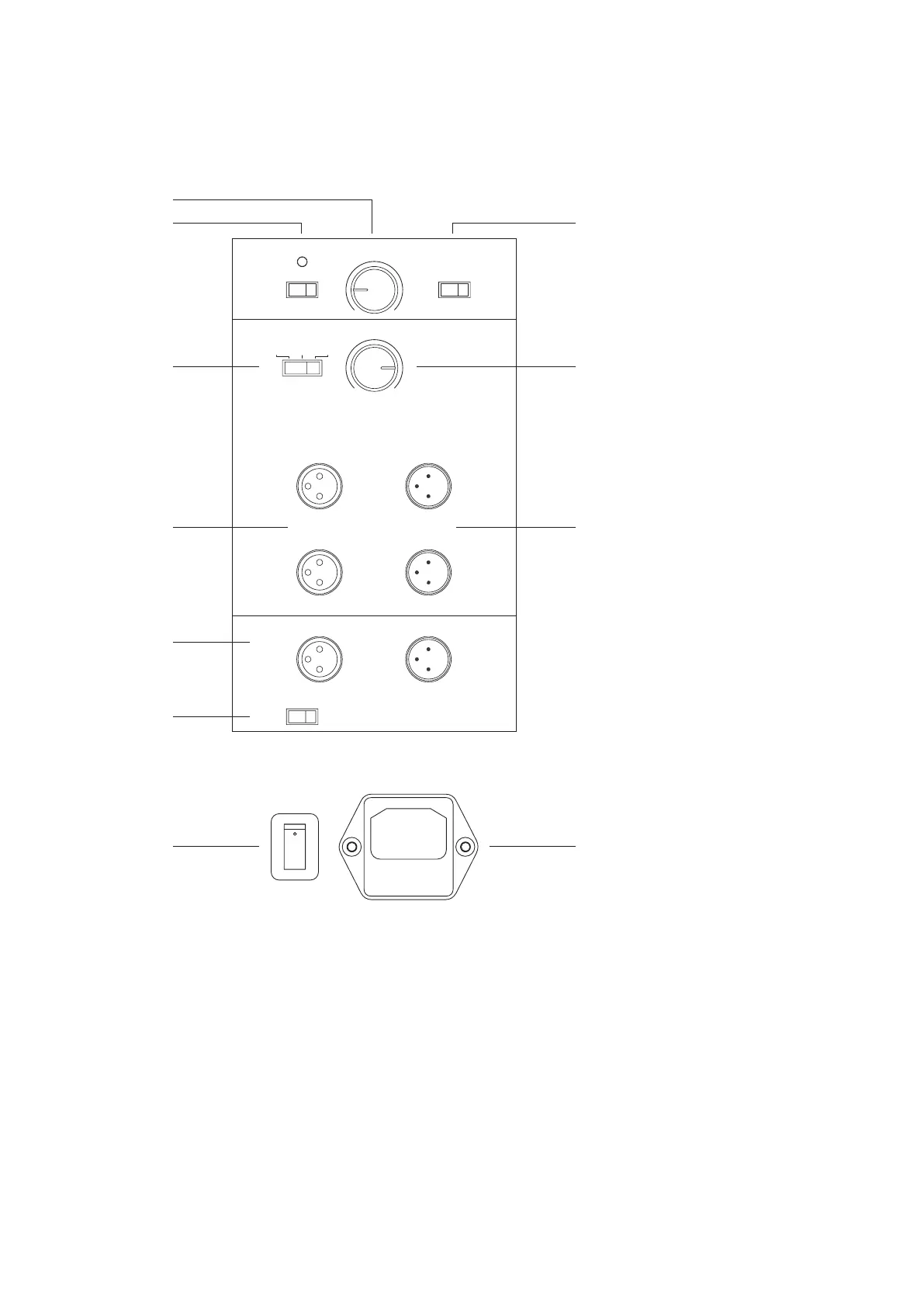

Controls and connections
ON AUTO
GAINPHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
MinMax
50Hz 150H z
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
~ 50/60Hz 3.15A
FUSE T3.15A L 250V
OFF
ON
60HzFlat 80Hz
5.
1.
8.
9.
11 .
10 .
3.
2.
7.
6.
4.
1. POWER ON (Main)
Mains power switch (to switch the subwoofer manually on and o). The LED indicates the operational mode:
▪ red: the subwoofer switched on and in mute (Standby) mode
▪ green: the subwoofer is active
2. AC IN
Mains power input.
8 Professional Audio Subwoofers User manual

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
