been completed.
Subwoofer inputs
Highpass
Lowpass
+
Gain
+
LFE/Slave
Mode
Phase
+
SAT/SUB
SAT/SUBSlave

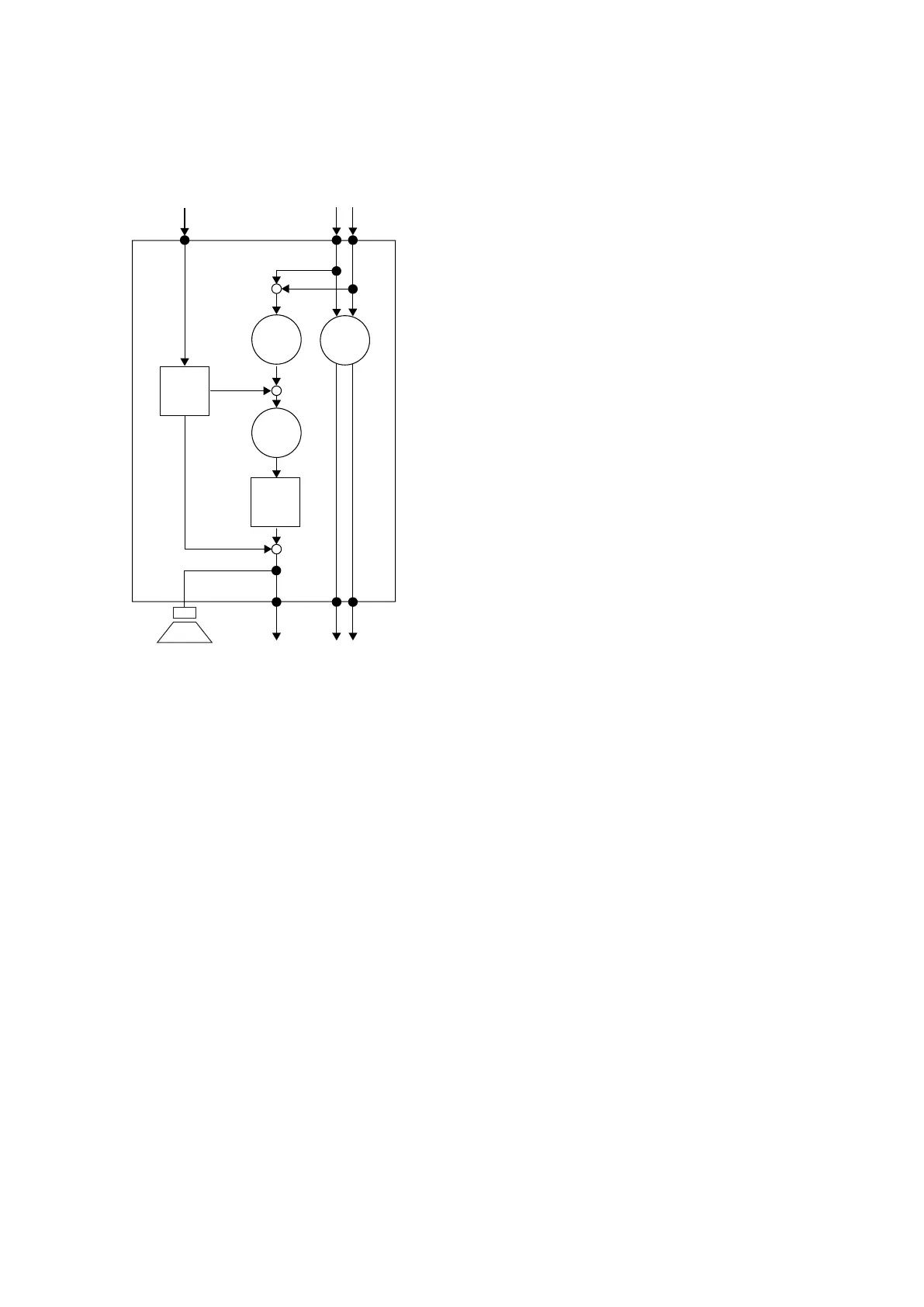

The 9S provides two dierent signal inputs:
LFE/Slave
This input allows the LFE (Low Frequency Eect) channel to be connected. The signal is:
▪ reproduced by the subwoofer
▪ routed to the Slave output for a second subwoofer to be connected.
The low-pass control has no impact on this input.
SAT/SUB
This input allows the connection of a full bandwidth signal. The signal is:
▪ reproduced by the subwoofer
▪ routed to the SAT output terminals. Low frequencies are filtered according to the high-pass setting
▪ routed to the Slave output for a second subwoofer to be connected.
▪ High frequencies are filtered according to the low-pass setting.
10 Professional Audio Subwoofers User manual

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
