Dynaudio 9S User Manual

Adjusting the volume (Gain)
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
GAIN
Min Max
60HzFlat 80Hz
CAUTION
High Sound Levels!
High sound levels can cause hearing damage. Do not listen to high sound levels for extended periods of time.
The correct volume setting is an important aspect of achieving a well balanced speaker combination.

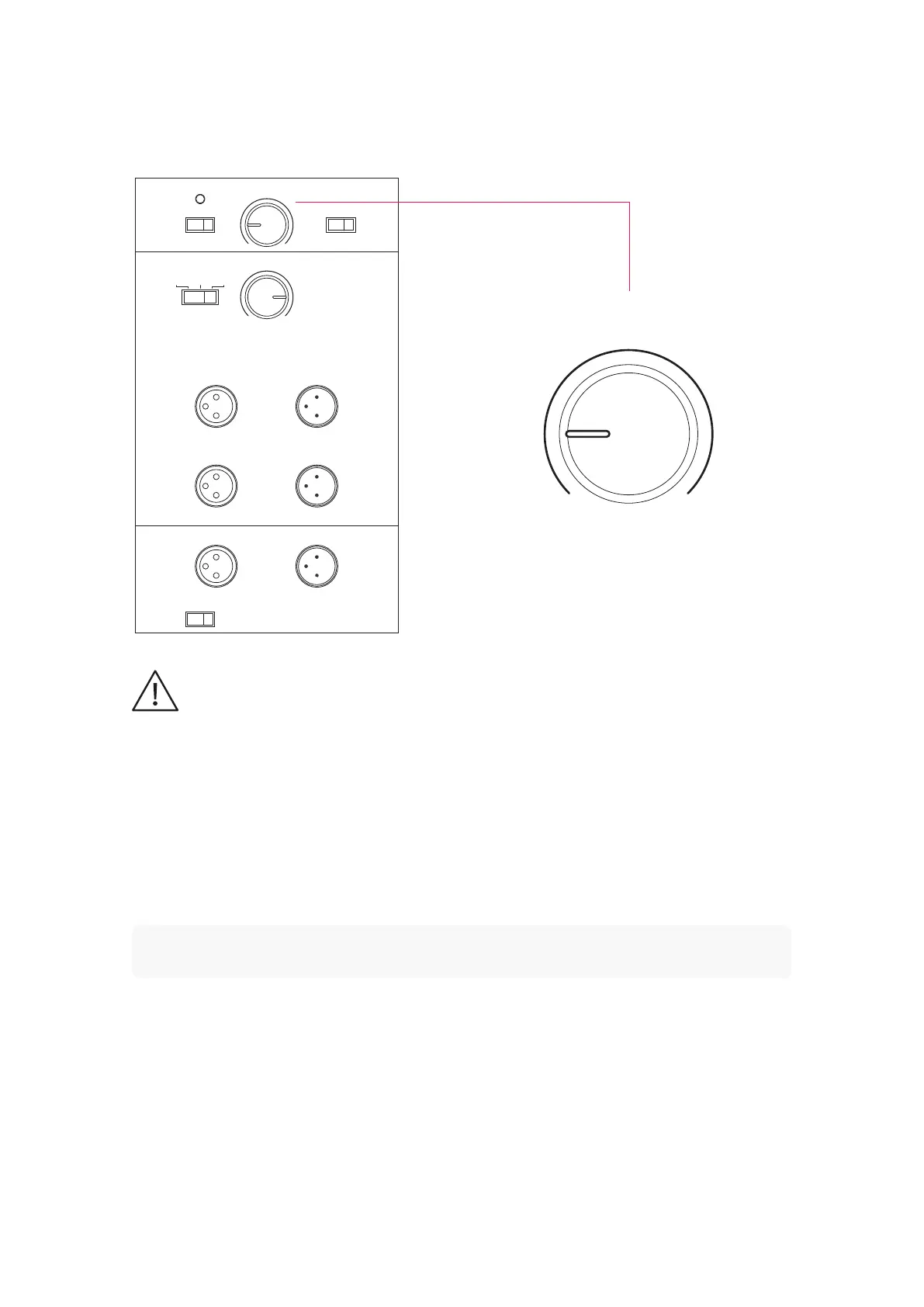

To adjust the gain
Adjust the Gain control until the appropriate setting is reached.
Note
You cannot adjust the volume when the subwoofer is in slave mode. In this case the volume is controlled by
the setting of the master subwoofer.
Operation 15

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
