Dynaudio 9S User Manual

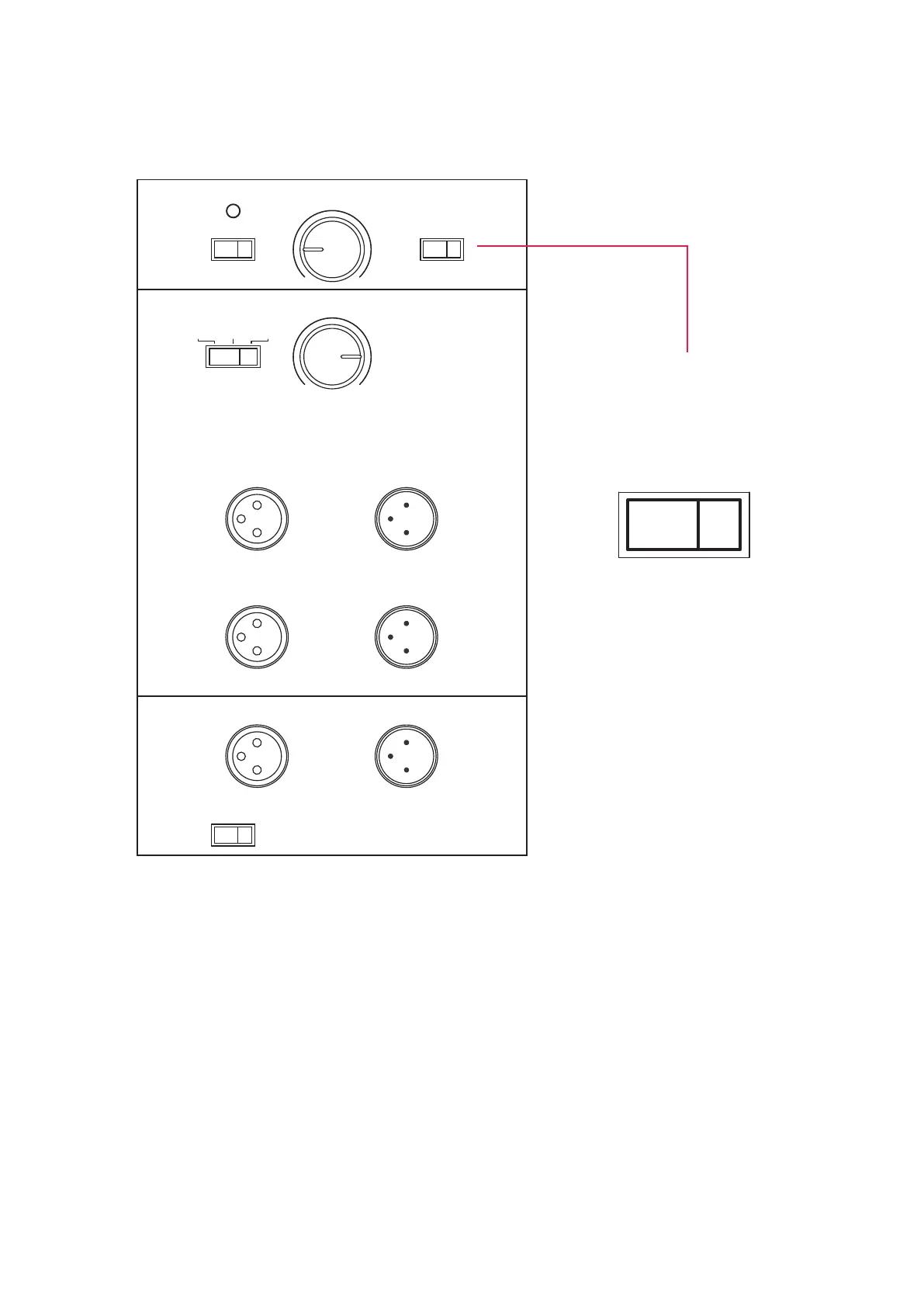

Setting the phase (Phase)
ON AUTO
GAIN PHASEPOWER
SUB LowpassSAT Highpass
SAT/SUB Input SAT Output
LFE / Slave IN OUT
60HzFlat 80Hz
Min Max
50Hz 150Hz
0° 180°
LEFT
RIGHT
SUB I/O To Slave
LFE Slave
PHASE
0° 180°
With the phase settings you can adjust the phase relationship between the subwoofer and main speakers. If
either subwoofer or main speaker are slightly out of phase in relation to the other, it can result in decreased bass
output in the frequency response area where they overlap each other.
Operation 17

Dynaudio 9S Specifications

General

System	Single driver, active 9, 5 in subwoofer
Analog inputs	1 x XLR LFE, 2 x XLR Stereo
Analog outputs	1 x XLR Slave Out, 2 x XLR SAT Out
XLR Pinout	1 = 0 / 2 = + / 3 = –
Input impedance – + branch	20 kOhm
Input impedance – - branch	10 kOhm
Frequency response (± 3 dB)	22 Hz – 175 Hz
Box principle	Sealed
Max. input voltage	10 VRMS
Auto ON/OFF	Yes
Amplifier power	300 W
AC power input	100-120 V/200-240 V 50/60 Hz
Standby power consumption	< 0.5 W
Maximum power consumption	350 W
Output impedance	100 Ohm (each branch)
Max SPL	106 dB
High pass filter	Flat / 60 / 80 Hz
Low pass filter	50 Hz -150 Hz
Phase adjustment	0/180 degrees
Woofer	24 cm MSP
Mode selector	LFE, Slave (Phase and volume controls are bypassed in slave mode)

Weight and Dimensions

Weight	10.5 kg / 23.1 lb
Dimensions (W x H x D)	266 x 276 x 320 mm / 10.5 x 10.9 x 12.6 in
Shipping box dimensions (W x H x D)	400 x 430 x 400 mm / 15.7 x 16.9 x 15.7 in
