Dynaudio LYD Series User Manual

P12

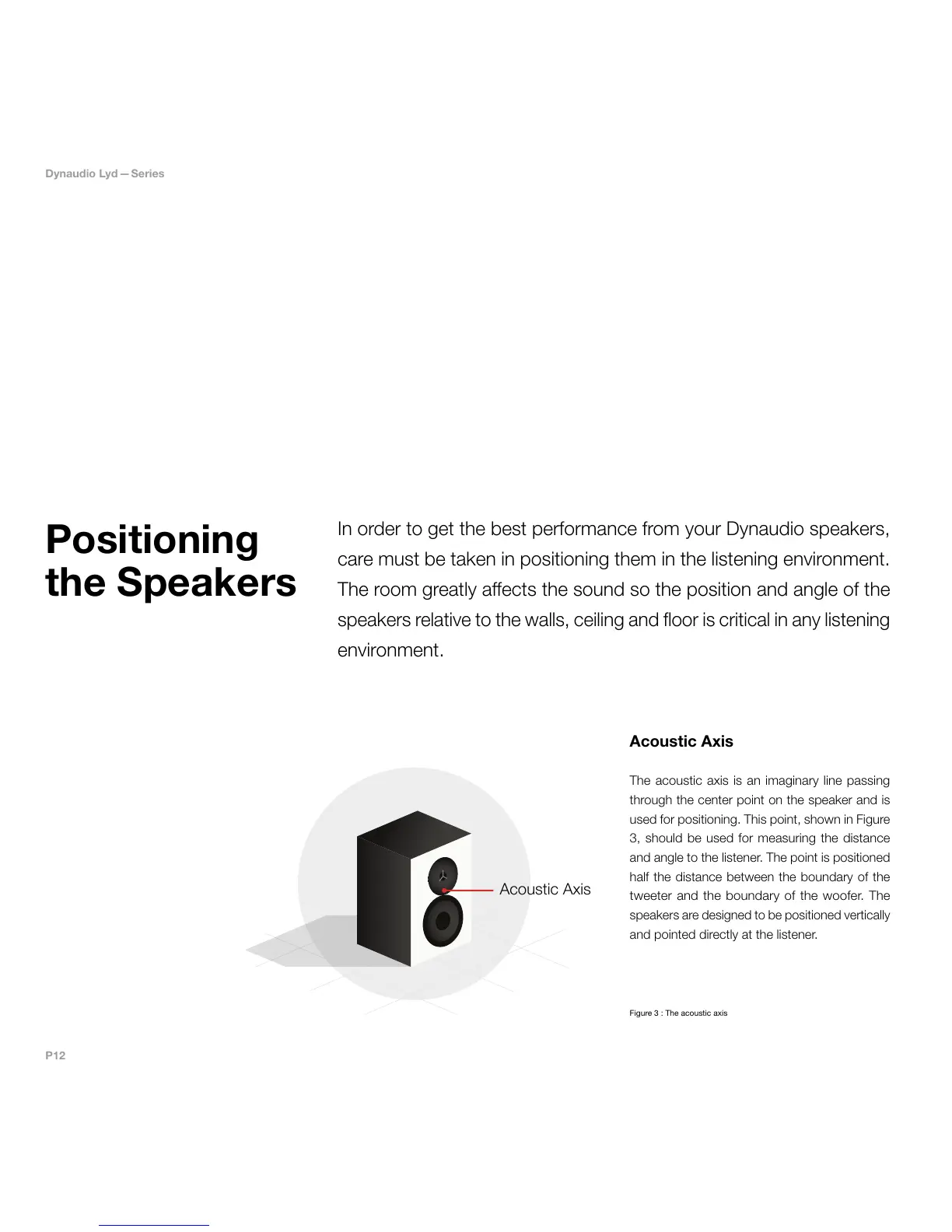

Dynaudio Lyd—Series
Acoustic Axis
Positioning
the Speakers
In order to get the best performance from your Dynaudio speakers,
care must be taken in positioning them in the listening environment.
The room greatly affects the sound so the position and angle of the
speakers relative to the walls, ceiling and floor is critical in any listening
environment.
Acoustic Axis
The acoustic axis is an imaginary line passing
through the center point on the speaker and is
used for positioning. This point, shown in Figure
3, should be used for measuring the distance
and angle to the listener. The point is positioned
half the distance between the boundary of the
tweeter and the boundary of the woofer. The
speakers are designed to be positioned vertically
and pointed directly at the listener.
Figure 3 : The acoustic axis
