Dynisco 1490 1/8 User Manual

From lab to production,
providing a window into the process
-12-
www.dynisco.com
Rev: n/aP/N: n/a ECO: n/a

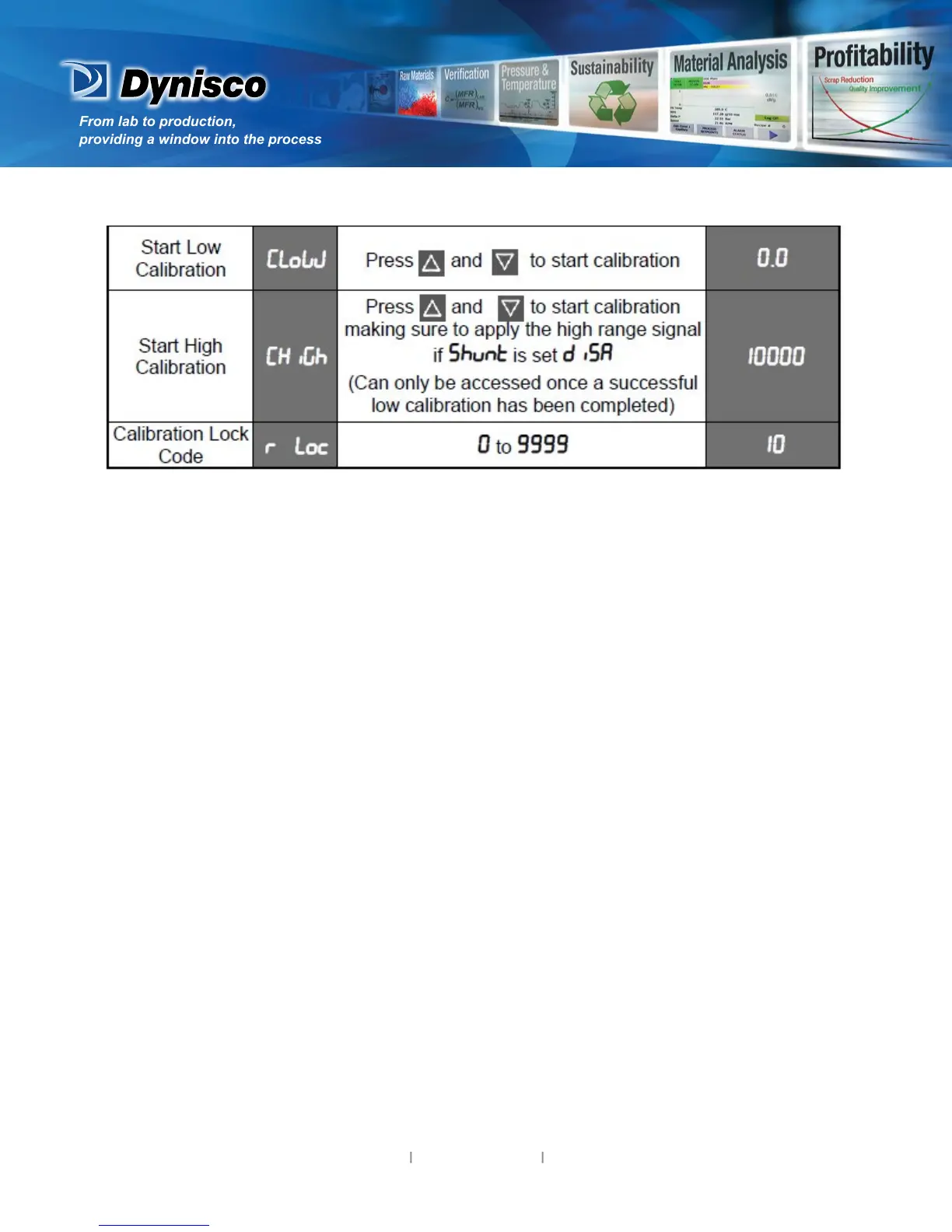

When the calibraon procedure begins ---- appears on the screen. Once the calibraon is complete
donE appears on the screen.
If there are faults detected with the calibraon the error message ErCAL will
appear.
ErCAL appears during the low calibraon step if the oset is greater than -10mV, for example -11mV.
This could signify a faulty sensor.
ErCAL appears during the high calibraon step if the count value is greater than +50mV. Again this
could signify a faulty sensor.
Note: Performing a calibraon with less than a 10mV dierence between the high and low
calibraon values will compromise the accuracy of the instrument.
6. Special Mode
7. Messages & Error Indicaons
Note: Conguraon must be completed before adjusng Special parameters.
This mode enables special features with the correct code entered; enter a value of 0 as default
otherwise please refer to your supplier for informaon on what special features are available and
which numbers invoke these.
These messages indicate that the instrument may require aenon, or there is a problem with the
signal input connecon. The message legend is shown for 1 second, followed by its value.
Cauon: Do not connue with the process unl the issue is resolved.
