Dynojet Power Commander 3r User Manual

4
9
Fig. D

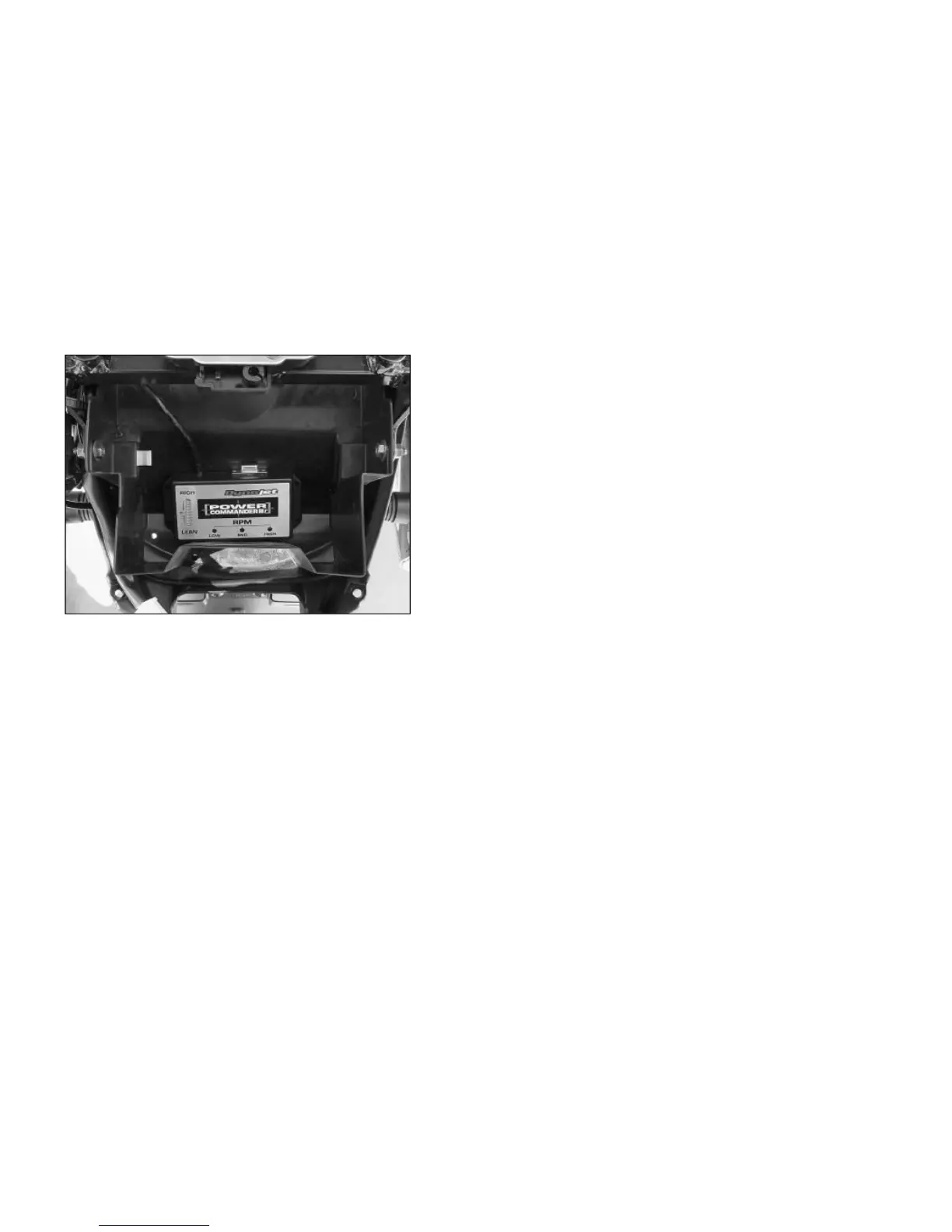

7 Install the PCIII in the rear section of the trunk using
the supplied velcro (Fig. D). Make sure to clean both
surfaces with alcohol first.
8 NOTE: FOR PCIIIr ONLY.
If you are installing the PCIIIr with ignition adjustment
locate the black connector from the generator cover
(Fig. E). This connector has blue and green wires.
9 Unplug this connector and plug the small red connectors
from the PCIIIr in-line of the stock wiring harness (Fig. F).
This page intentionally left blank

Dynojet Power Commander 3r Specifications

General

Brand	Dynojet
Model	Power Commander 3r
Category	Motorcycle Accessories
Language	English
