2 POWER VISION 4
INSTALLATION AND USER GUIDE
INTRODUCTION

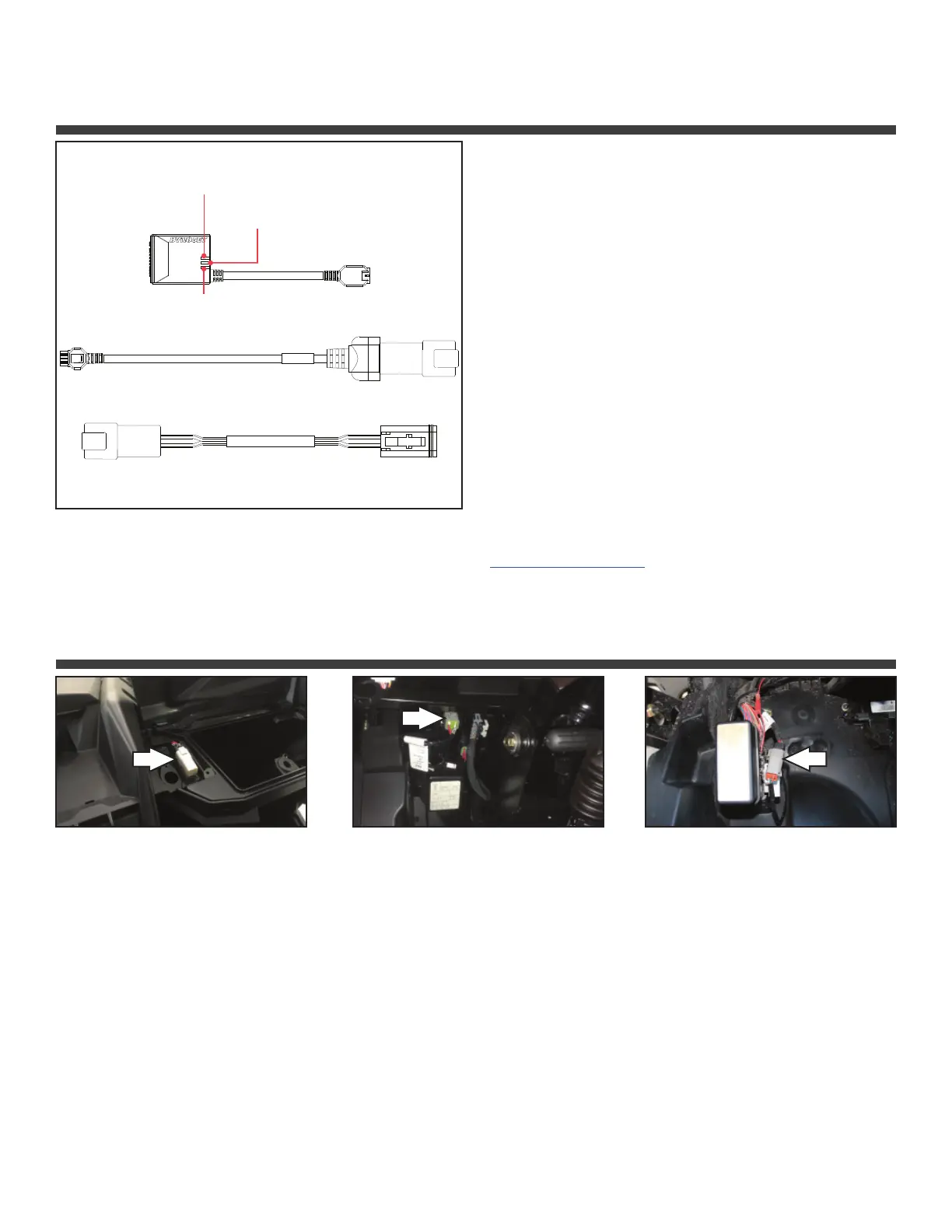

LOCATING THE DIAGNOSTIC CONNECTOR
Maverick X3 Models
The diagnostic connector is located
under the glove box lid. Note: Remove
the diagnostics port holder and insert
the Power Vision cable to hold the cable
securely in place.
Trail Models
The diagnostic connector is located under
the dash to the left of the steering column.
Maverick Models
The diagnostic connector is located
near the fuse box. Note: Remove the
diagnostics port holder and insert the
Power Vision cable to hold the cable
securely in place.
Thank you for purchasing the Power Vision 4 (PV4) from
Dynojet Research. The Power Vision 4 is the most fl exible
and powerful fl ash tuning device in the world. The Power
Vision 4 uses refl ash technology to change the parameters
inside the stock Engine Control Unit (ECU) that affects the
way the engine will run.
The Power Vision 4 has three indicator lights:
• Red LED—Communication. Solid red is communication on
bus; rapid fl ashing is recovery mode.
• Green LED—Power. Short blink is power; long blink is
connected to ECU.
• Blue LED—Bluetooth status. On is connected to Bluetooth;
off is not connected.
After the vehicle has been fl ashed, the Power Vision 4
does not need to remain connected to have full benefi ts of
the device, however, the Power Vision 4, paired with your
phone and the Dynojet PV4 app, provides a window into
your vehicle. Gain access to customizable gauge screens,
along with data logging screens and troubleshooting of
Diagnostic Trouble Codes.
For state of the art technical support, please email
pv4tech@dynojet.com.
Blue LED—Bluetooth Status
On is connected to Bluetooth.
Off is not connected.
Red LED—Communication
Solid red is communication on bus.
Rapid fl ashing is recovery mode.
Green LED–Power
Short blink is power.
Long blink is connected to ECU.
76951077 Can-Am
Refl ash Harness
76950998 Can-Am
Adapter Cable
X3 to Maverick
