Fitting notes
Service manual
10

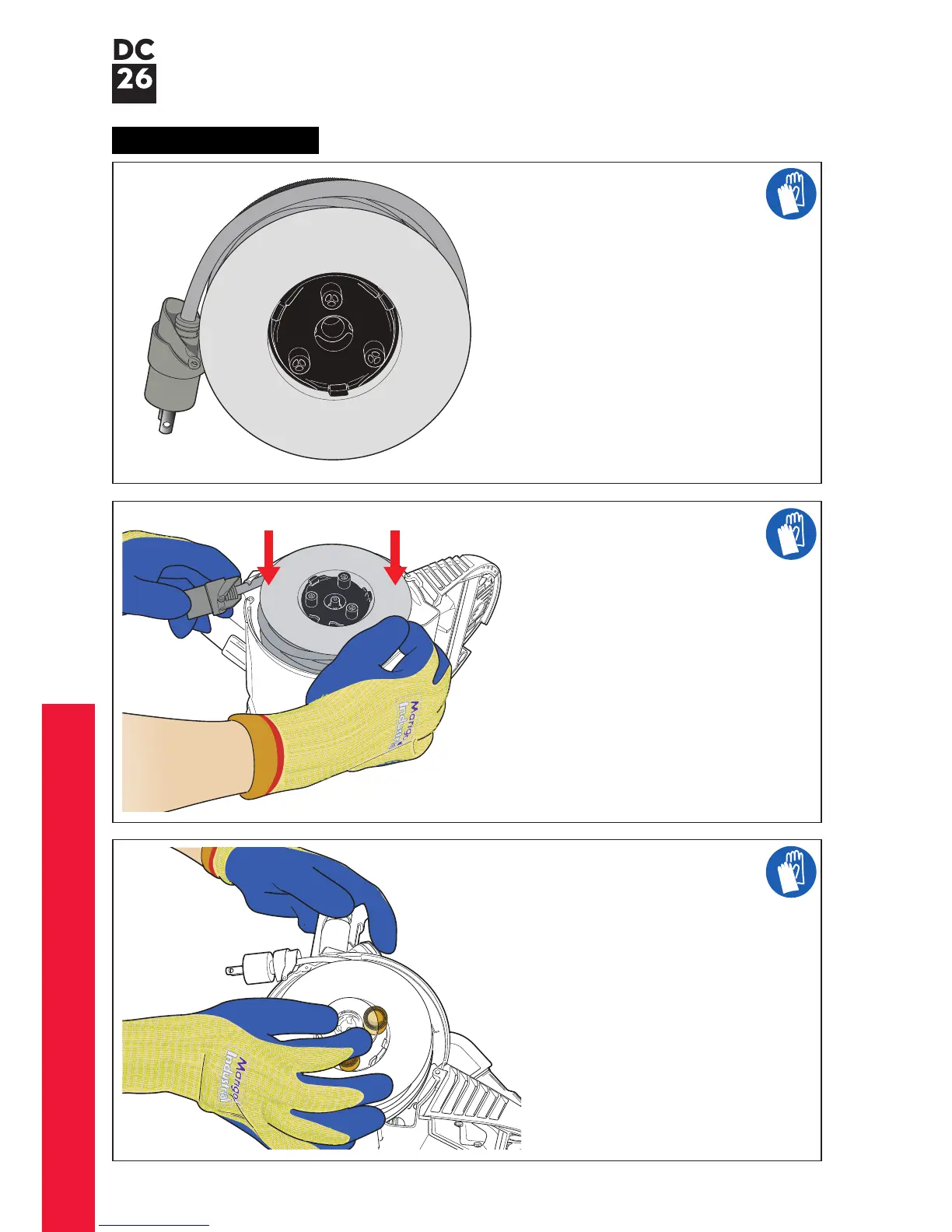

14 Important: ensure the entire
length of the cable is wound onto
the cable rewind assembly before
fitting onto the product. Failure to
do so will result in the cable not
adequately rewinding.
15 Lower the cable rewind assembly
onto the spindle in the chassis.
16 Ensure the entire length of cable is
wound onto the cable rewind
assembly.
Locate the cable rewind spring
assembly onto the cable rewind
(any one of three orientations).
Fit the screw.
Cable rewind - fitting
