48 If previously removed, fit the brake
wheel assembly into the brake
housing.
Slide the housing into the chassis
ensuring it locates over the
retaining ribs. If fitted correctly,
the housing will sit square within
the chassis.
49 Locate the brake wheel stopper
into the chassis.
Fit the Torx T-8 screw.

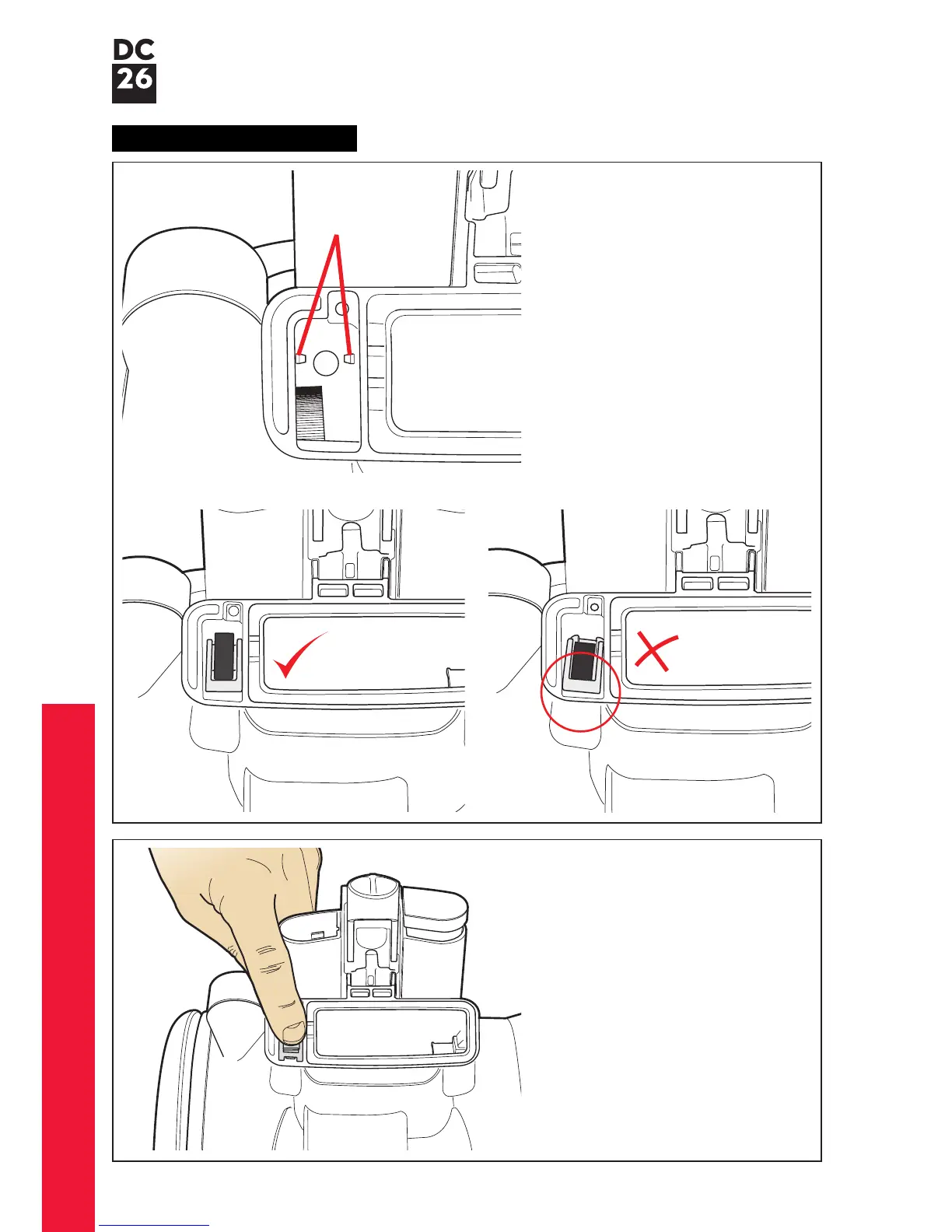

Brake wheel assy - fitting
Retaining ribs
To Next Page
