Fitting notes
Service manual
Sub assemblies - wand handle, hose and extension tube assemblies

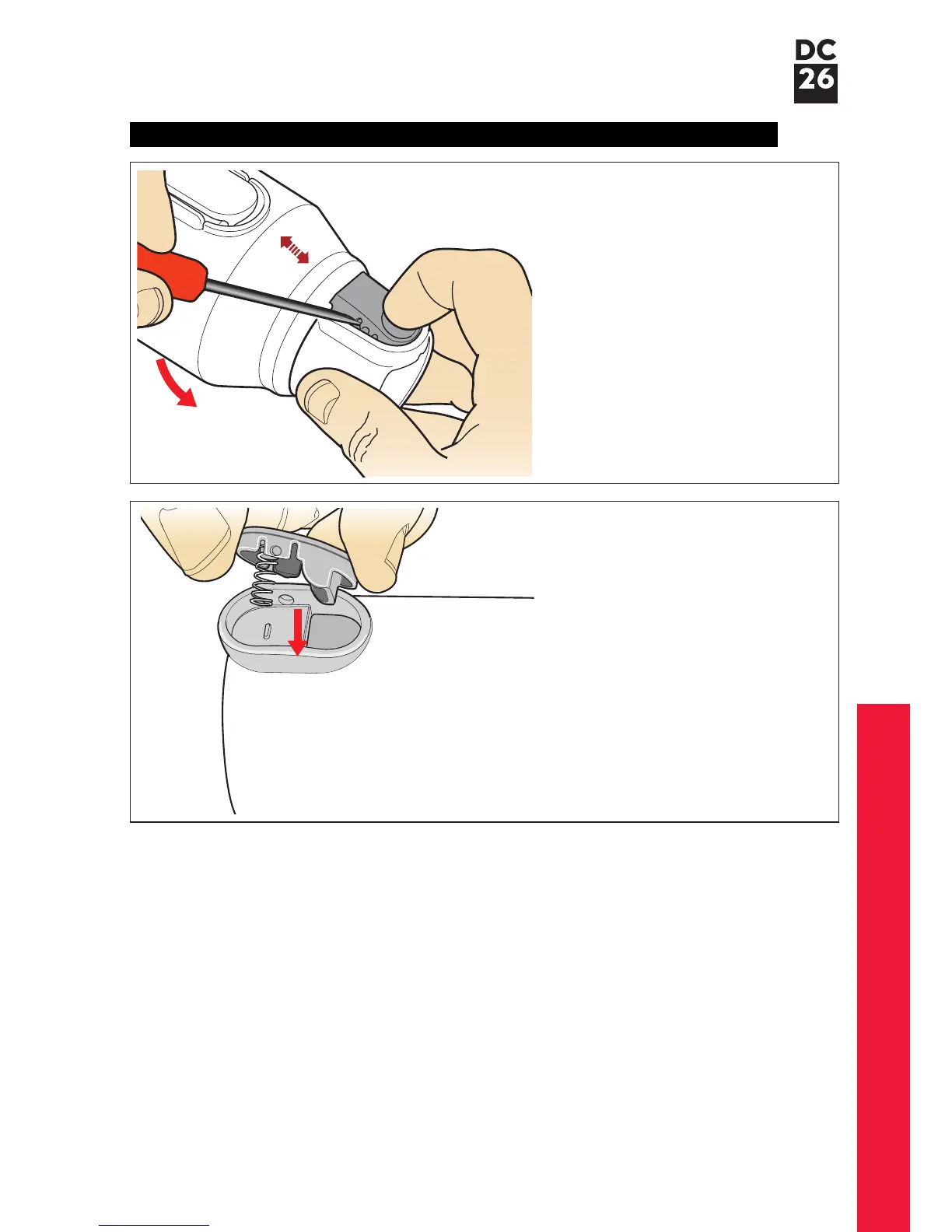

85 To fit, locate the spring onto the
rear of the swivel catch. Firmly
press the catch into the retainers
on the handle, hose or extension
tube.
84 The swivel catch can be removed
from the end of the handle, hose
or extension tube by prising off
with a thin flat bladed screwdriver.
