Cyclone inlet, chassis and motor assembly replacement - fitting

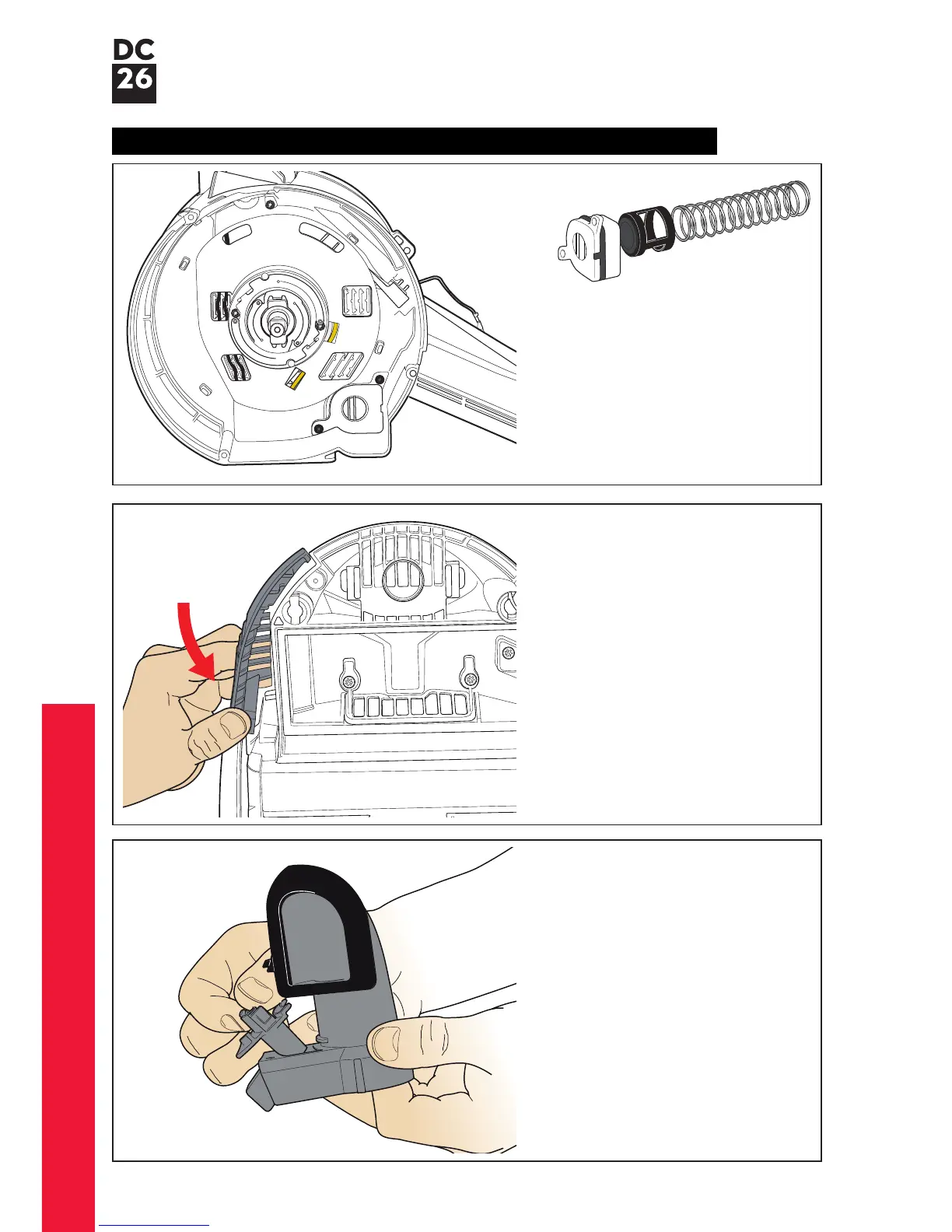

66 Locate the components that make
up the bleed valve into the new
chassis and motor assembly in the
orientation shown.
Fit the screws.
67 Locate the exhaust grille onto the
side of the chassis.
Fit the screw in the underside of
the chassis.
68 Locate the connector housing
into the cyclone inlet assembly
(screw holes aligned).
