Power System Installation
Required Parts
Assembled airframe
Motor offset shim (2)
Stick mount w/hardware
Brushless motor
20-Amp Brushless ESC (EFLA311B)
910–1320mAh 3-Cell 11.1V Li-Po (THP13203SPL or
THP9103SJPL)
11 x 3.8 Electric Prop (APC11038SF)
EC3 Device & Battery Connector, Male/Female
(EFLAEC303)
Required Tools and Adhesives
Razor saw
Medium CA
Ruler
Hook and loop tape
Drill
Drill bit: 1/16" (1.5mm)
Note: The following steps show the installation
procedures using our E-flite Outrunner BL motor.
You can use an Inrunner motor with a gearbox
as an alternative setup.

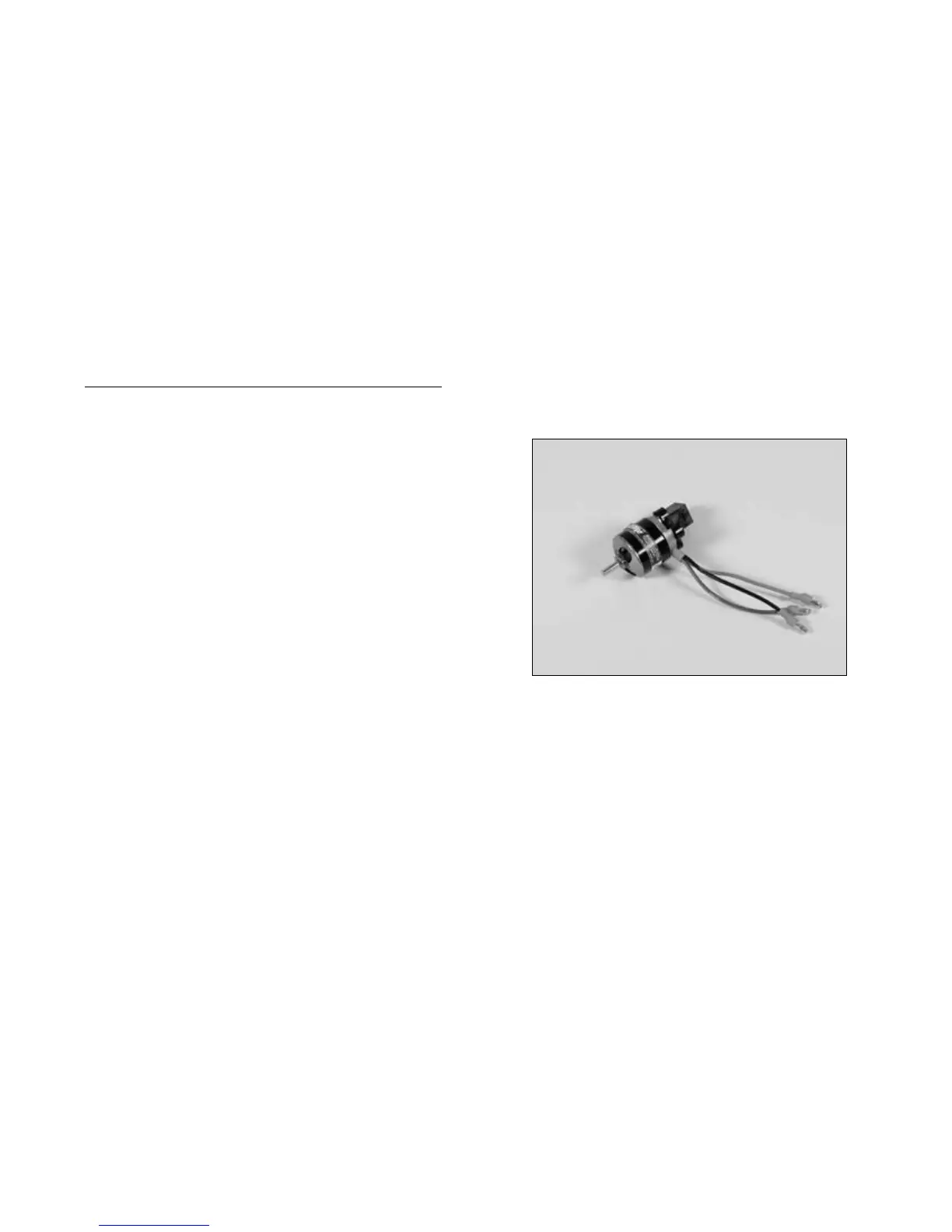

1. Mount your particular motor to the stick
type mount using the hardware provided with
the mount.
33
