E Instruments E4500 User Manual

Name: E Instruments E4500
Brand: E Instruments
Rating: 4 (1 reviews)

144 pages

To Next Page

To Previous Page

K000000000EJ 023826A0 100714

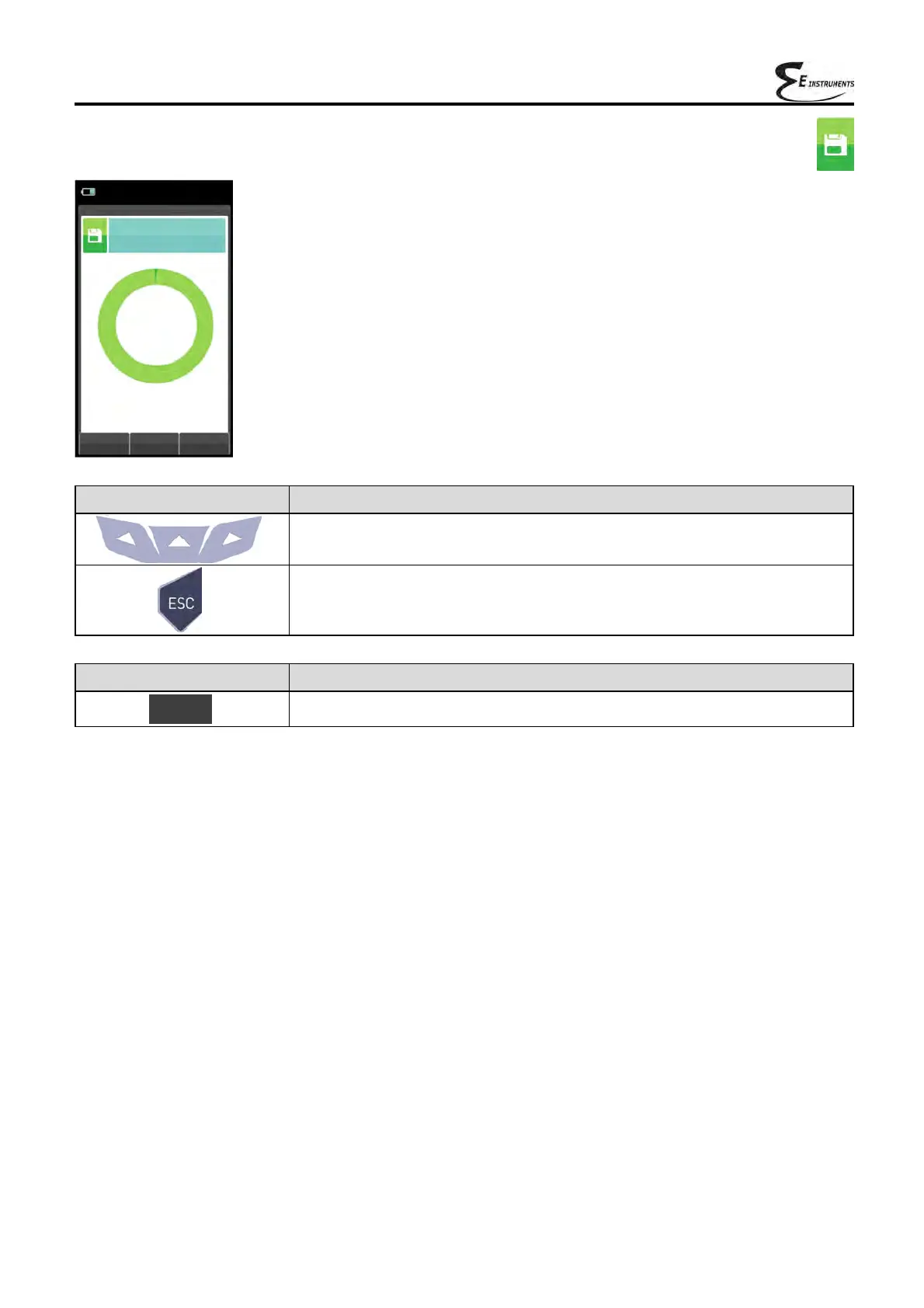

KEY FUNCTION

Activate the context keys shown on the display.

Returns to the previous screen.

CONTEXT KEY FUNCTION

Returns to the previous screen.

10.7 Memory→Usage %

Esc

Memory

Usage %

07/08/14

10:00

Esc

Default Chapter3
- Table of Contents3
Important Information7
- Introduction7
- Safety Warnings7
Safety8
- Intended Use of the Product8
- Improper Use of the Product8
Working Principle9
- Measuring Sensors9
Description of the Product10
- General Description of the Combustion Analyzer10
- General Characteristics of the Combustion Analyzer10
- Description of the Components of the Combustion Analyzer12
Main Configurations15
Technical Specifications16
- Measurement and Accuracy Ranges17
Startup18
- Preliminary Operations18
- Warnings18
- Power Supply of the Analyzer18
  - Checking and Replacing the Batteries18
  - Use with External Power Pack19
- Connection Diagram20
Power on - off23
- Starting the Device23
Configuration24
- Configuration Menu24
- Analysis Menu25
- Instrument Menu34
- Configuration=>Operator41
- Configuration=>Alarm43
- Information Menu44
- Configuration=>Diagnostic48
- Configuration=>Language58
- Configuration=>Restore59
Memory60
- Memory Menu60
- Memory=>Save62
- Memory=>Average64
- Memory Select65
  - Memory=>Memory Recall66
- Memory Data Logger69
- Memory=>Delete70
  - Memory=>Delete=>Single71
  - Memory=>Delete=>All72
- Memory=>Usage73
Print74
- Print Menu74
- Print=>Report75
- Print=>Configuration76
- Print=>Test77
- Print=>Header78
- Print=>Printer80
  - Print=>Printer=>Pairing81
- Print=>Measures List83
Measurements85
- Measurements Menu85
- Measurements Draft87
- Measurements Smoke88
- Measurements Ambient CO89
- Measurements Temperature90
- Measurements Pressure91
- Measurements=>Tightness Test92
  - Connection of the Tool Tightness Test Kit92
- Measurements=>Tightness Test=>New System93
  - Performing Tightness Test According to UNI 712995
- Measurements=>Tightness Test=>Existing System98
  - Configuration of Tightness Test According to UNI 11137102
  - Performing Tightness Test According to UNI 11137106
- Measurements=>Tightness Test=>Results of the Tightness Test108
Combustion Analysis110
- Startup and Auto-Calibration of the Device110
- Inserting the Probe in the Chimney110
- Combustion Analysis111
- End of Analysis111
- Combustion Analysis - Preliminary Operations112
- Combustion Analysis - Manual Mode114
- Combustion Analysis - UNI 10389 Mode116
- Combustion Analysis - Bimschv Mode117
- Combustion Analysis - Data Logger Mode118
Sensors119
- Sensors Arrangement119
- Sensor Types and Relevant Positioning119
- Gas Sensors Life120
- Table of Gas Sensor Life120
- Expandability to 4 Sensors121
- Cxhy Sensor for Measurement of the Unburned Hydrocarbons122
- Installing the Cxhy Sensor122
- CO Sensor for Carbon Dioxide Measurement in Combustion Processes123
- Installing the CO123
  - Sensor123
- Maintenance124
Troubleshooting131
- Troubleshooting Guide131
Spare Parts and Technical Assistance133
- Spare Parts133
- Accessories133
- Service Centers133
ANNEX a - Analysis Report Examples134
ANNEX B - Coefficients of the Fuels and Formulas137
ANNEX C - Declaration of Conformity139

Other manuals for E Instruments E4500

Quick Guide2 pages

Questions and Answers:

E
elizabethmillsAug 14, 2025
What to do if the sample pump is running slowly on my E Instruments E4500 Measuring Instruments?
- J
  Jenny RivasAug 14, 2025
  If the sample pump in your E Instruments Measuring Instruments sounds slow, stops, or doesn't start, several issues could be the cause. First, ensure the water filter is clean and not soaked, and check the hose connected to the probe for any crushing. Next, verify the particulate filter is clean. After that, remove the rear flap and confirm the pump's electrical connector is properly connected to the printed circuit board. If these steps don't resolve the issue, the pump may be faulty and require replacement. Finally, the pump may be disabled; try switching the instrument off and then on again to re-enable it.
L
ltuckerAug 17, 2025
Why are the values unreliable on the analysis screen of my E Instruments Measuring Instruments?
- T
  Thomas WoodAug 17, 2025
  If your E Instruments Measuring Instruments shows unreliable values on the analysis screen, there might be several reasons. Start by checking that the sensors are correctly installed via the sensor diagnostics menu. Then, inspect all joints and the hose for leaks in the sample probe connection. If those aren't the issue, the pump may be faulty and need replacement. As a last resort, the instrument itself might be faulty, requiring service center repair.

E Instruments E4500 Specifications

General

O2 Range	0-25%
Data Logging	Yes
Wireless Communication	Bluetooth
Accuracy	±2% of reading
Response Time	< 30 seconds
Power Supply	Rechargeable Battery
SO2 Range	0-5000 ppm
CxHy Range	0-10, 000 ppm
Measurement Range	Depends on gas
Resolution	1 ppm
Temperature Range	-4 to 1472°F (-20 to 800°C)
Operating Temperature	32 to 122°F (0 to 50°C)
