E-Mon D-Mon Class 1000 Installation Manual

Page 9
4.0 Meter Installation (Continued)
4.3 Current Sensor Installation & Wiring (Continued)

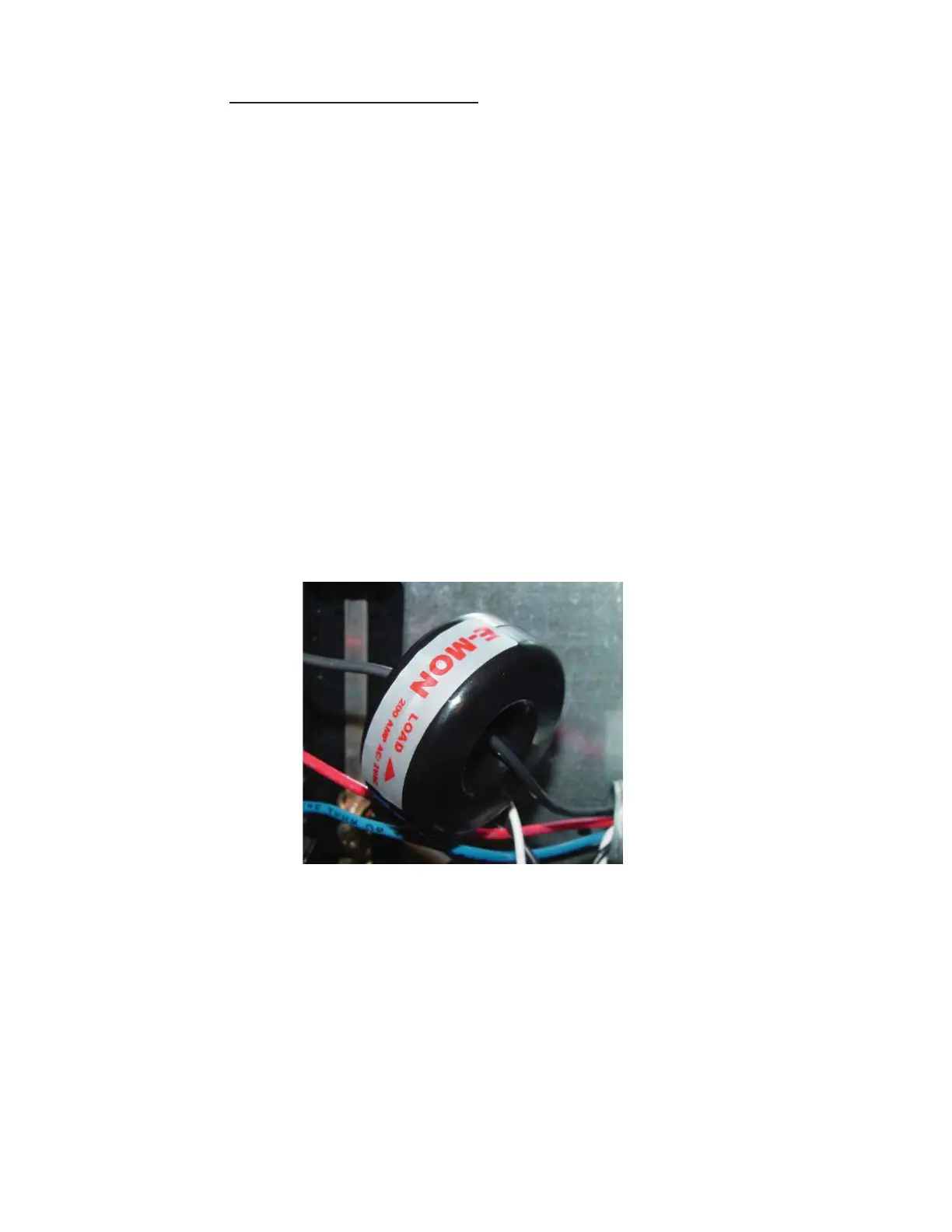

Installing the Solid-Core Current Sensor Assembly
The optional solid-core current sensors can be installed in the same applications
as the standard split-core units, however, the conductors that they are monitoring
must fi rst be disconnected.
NOTE: Under no circumstances is this operation to take place without
shutting off the power to the conductor(s) being monitored.
With the power off, disconnect the conductor from its breaker or terminal. Slide
the solid-core current sensor over the conductor, making sure that the indicator
on the sensor is pointing in the direction of the load. After this is done, reconnect
the conductor and verify that it is properly installed.
Run the black and white wires from the solid-core current sensors and install
them according to the standard installation diagram. When this is completed, the
power to the monitored conductor can be turned back on.
