Basic Operations
E-MU Systems 28
To Select 16 Channel Control Mode:
1. Press the 16 Channel button. The 16 Channel LED illuminates.
2. Press the button again to exit 16 Channel Control Mode. The LED goes off.
To Set the 16 Channel Control Number:
1. Press the Edit button. The Edit LED illuminates.
2. Press the keyboard key marked 16-Ch. CC Number.
3. Select a CC number from 0-127 using the Data Slider, the Octave Transpose
buttons, or the Numeric Keyboard keys. The Enter button flashes.
4. Press Enter to confirm the operation. Press Home to cancel the operation.
Working With Zones
To Enable or Disable the Zones Function:
•Use the ZoE function in the X2 menu. See page 43.
• For the Xboard 25, 49, or 61, use the Zones Enable button in the Xboard
Control software. See
page 56.
• On the Xboard 61, press the Zones Enable button. When enabled, the LED
illuminates.
Note: Semitone Transpose is disabled when Zones are enabled.
To Enable or Disable a Specific Zone:
• On the Xboard 61, press the corresponding button for Zone 1, 2, 3, or 4.
When a zone is enabled, its LED illuminates.
• For the Xboard 25, 49, or 61, Enable Zones in the Xboard Control software.
See
page 58.

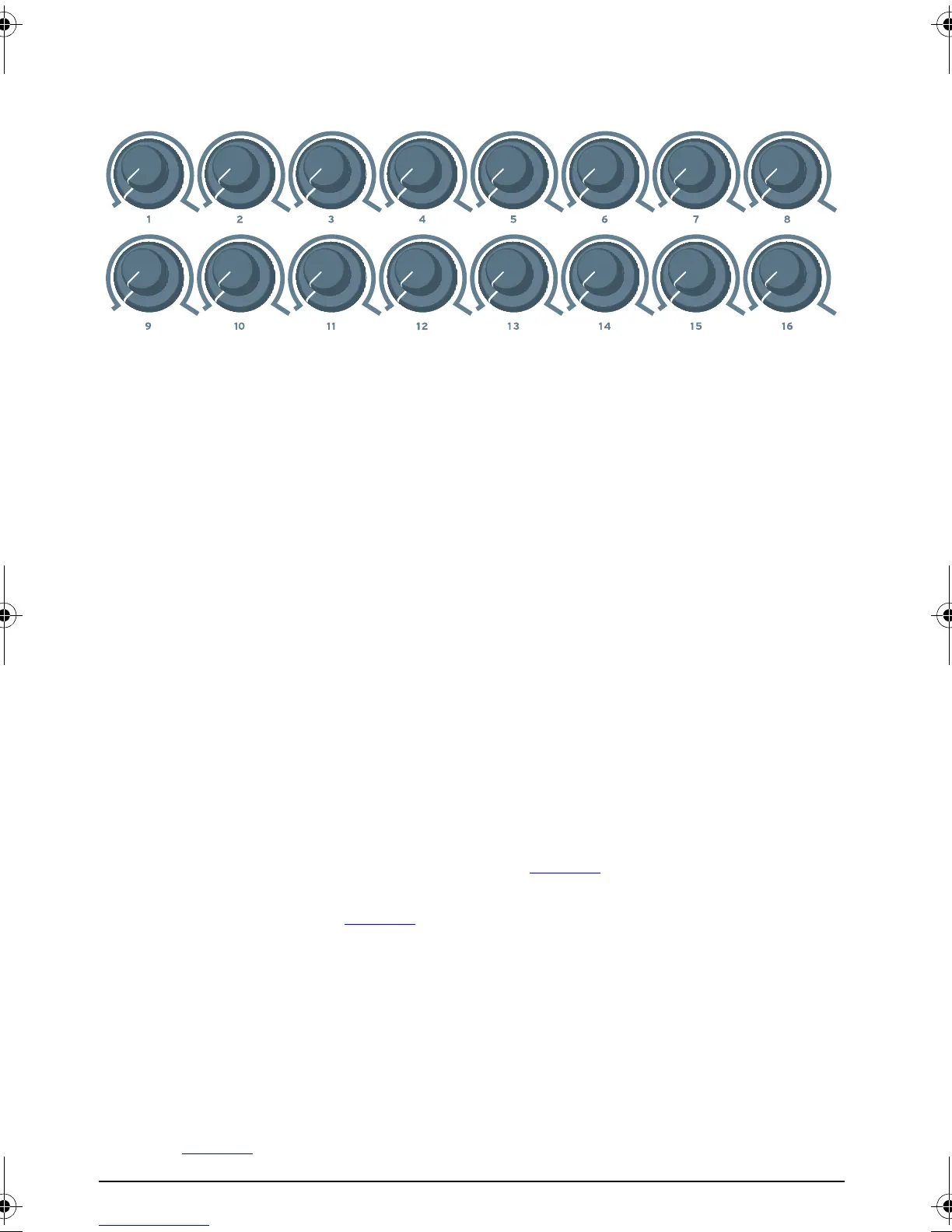

In 16 Channel Control Mode, each knob transmits on its same-numbered MIDI Channel.
All knobs transmit the same MIDI Controller Number.
X Board.book Page 28 Wednesday, April 12, 2006 10:44 AM
