E-MU Xboard Control
Xboard 49

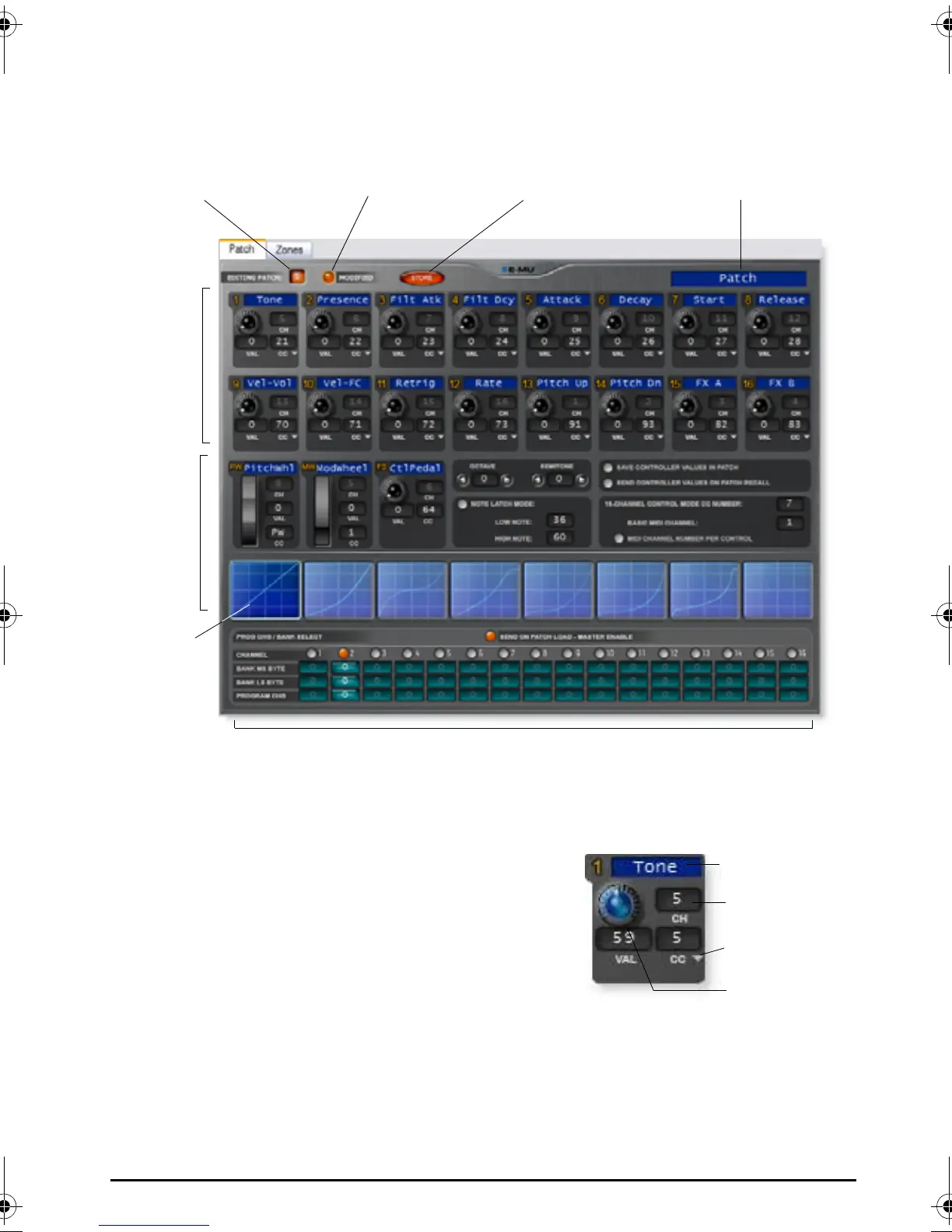

Patch Editor Tab
MIDI Controller Knob Settings
This group of 16 controls corresponds to the 16
controller knobs on the Xboard. The 8-character
label is visible only in the Xboard Control.
Initial Knob Settings
Turning the knob on the screen won’t affect your
soft-synth since this doesn’t cause any CC
messages to be sent. Instead, you can set the value
using the Xboard knob, which does send CC messages, then select Refresh from
the View menu to update the screen.
NOTE: NRPN Mode does not have initial knob settings.
Current Patch
Number
Store Current
Patch Button
Patch Modified
Indicator
MIDI
Controller
Knob
Settings
Patch
Name
Velocity
Curves
Stored Program Changes Sent on Patch Recall
Keyboard
Settings
Value Knob
MIDI Channel
CC Type Drop-
down
Label Field
X Board.book Page 49 Wednesday, April 12, 2006 10:44 AM
