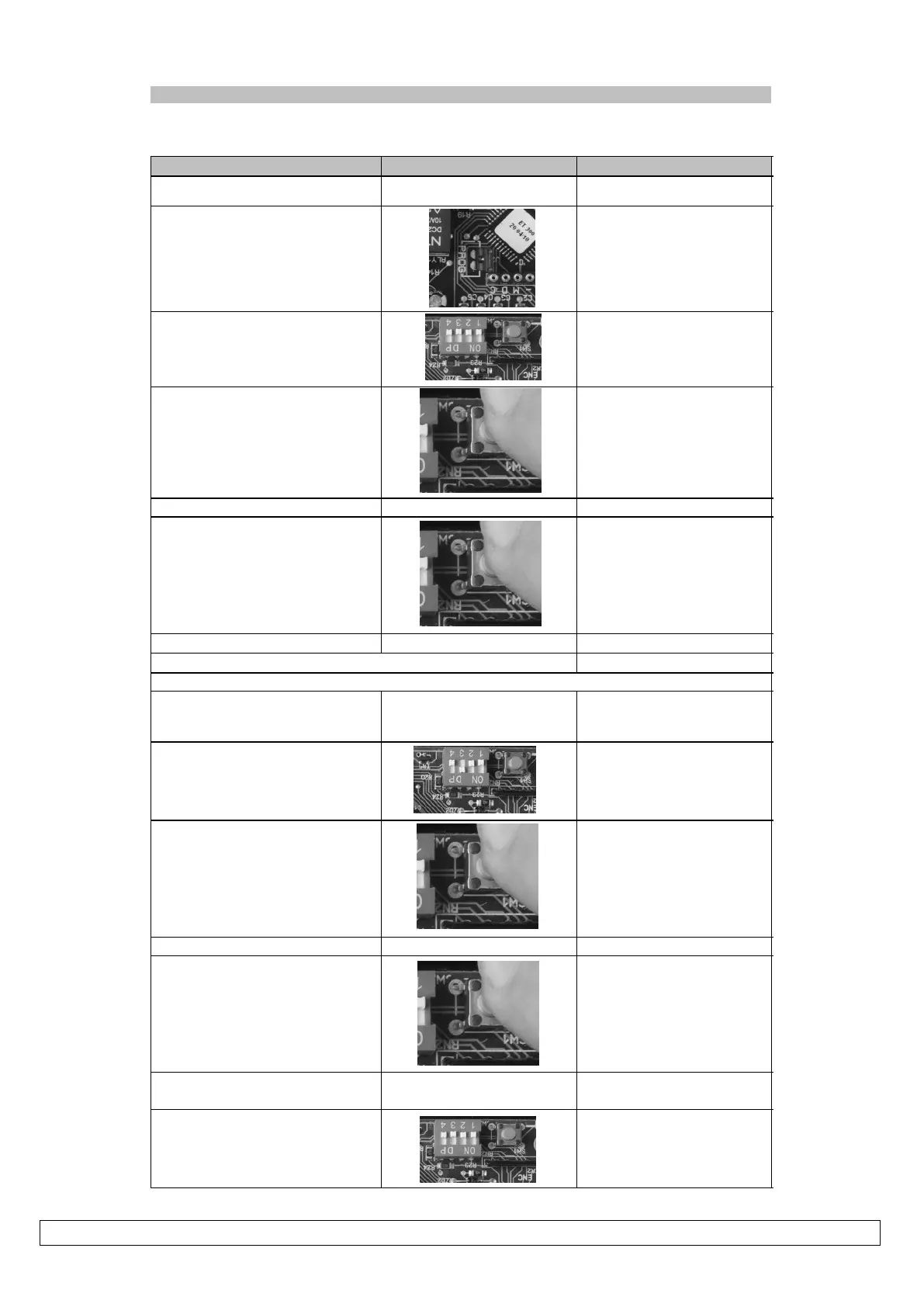

Runtime Setup
Action Response
Gate starts opening
Gate stops and closes
1 beep
Remove program jumper or continue to next feature
Gate stops, 1 beep
Gate will now close correctly
Gate starts opening
Gate stops and closes
Continuous beep off
The run- time routine must be completed before attempting to continue with any other routine! The closed
limit actuator must be installed correctly before starting this routine!
1. Gate midway and engaged.
2. Program jumper on
2 beeps
3. All dip-switches off.
4. Press and release Set button
Gate must close. If gate opens first
press and release set button then
see A below!
5. At closed limit
6. Press and release Set button at
required full open position (± 25mm short
of physical stopper)
7. At closed position
*** Changing gate direction if it opens first above.
A) On pressing and releasing the set
button while gate was opening first
B) Dip-switch 3 on
C) Press and release Set button
D) At closed limit
E) Press and release Set button at
required full open position (± 25mm
short of physical stopper)
F) At closed position
1 beep, pause, continuous
beep.
G) Dip-switch 3 off
