UMPETHA 082009/072010.014

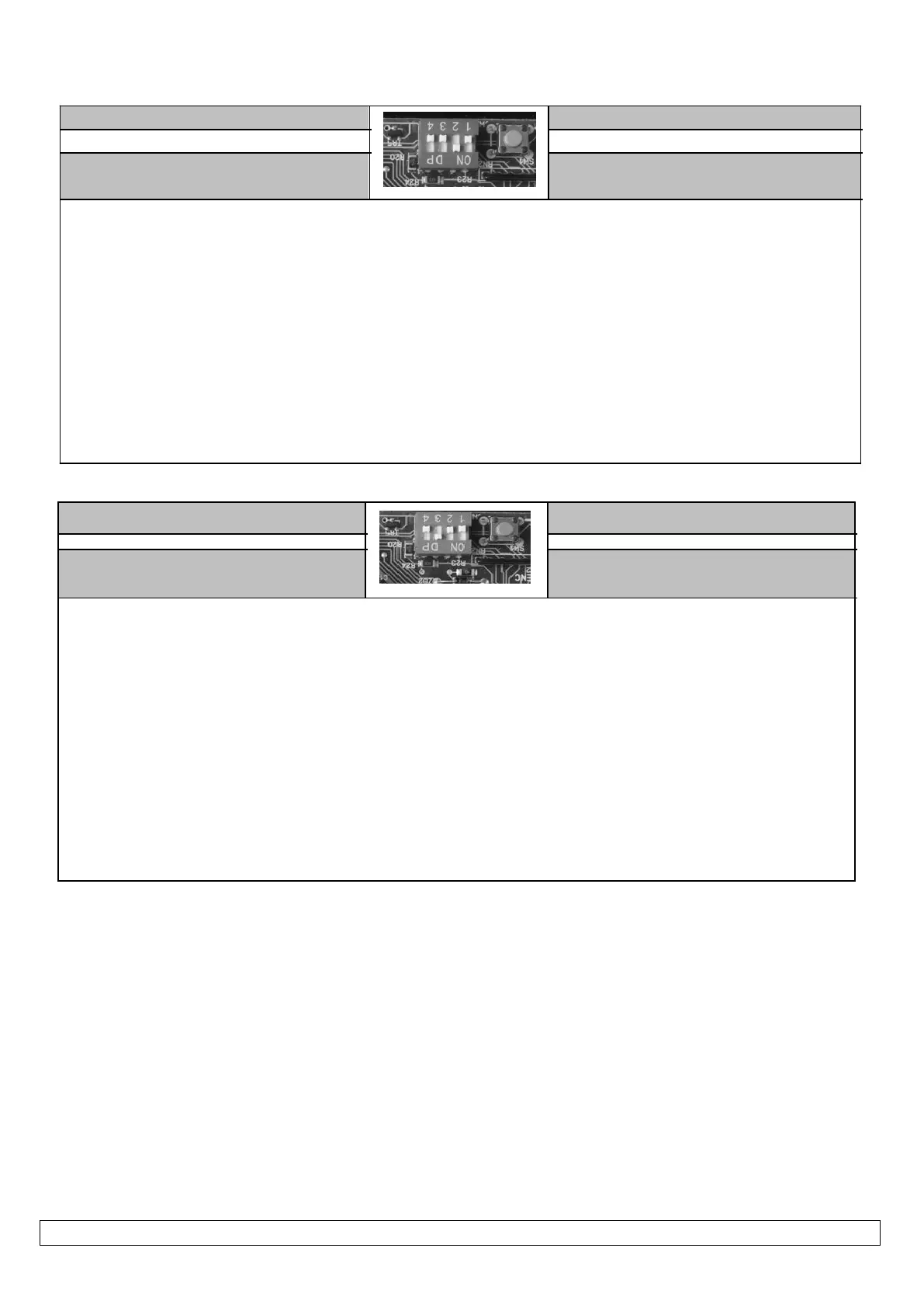

Dip-switch selection Mode
Dip-switch 2 ON (only)
Complex Auto-close/Condominium
(select when using a loop detector)
In this mode any BT (full opening) input trigger is treated as an opening trigger. On reaching the full open
position the unit times out the pre-programmed auto-close time after which it will begin closing the gate.
If the BM (beam) or BT (full opening) input is activ ated while the auto-close timer is running the time will
simply reset.
On closing any BT (full opening) input or BM (beam) input will re-open the gate to the full open position.
USE THIS MODE WHEN CONNECTING A LOOP DETECTOR.
Auto-close ov erride/Party mode is NOT av ailable in this mode. (See additional features below)
Holiday lock out is NOT av ailable in this mode. (See additional features below)
Master remote programming is NOT av ailable in this mode. (See page 23)
Dip-switch selection Mode
Auto-close ov erride/Party mode is av ailable in this mode. (See additional features below)
Holiday lock out is av ailable in this mode. (See additional features below)
Master remote programming is av ailable in this mode. (See page 23)
Dip-switch 3 ON (only)
P.I.R.A.C. Auto-close
(Passiv e-infra-red access control)
In this mode the unit will operate as per Simple auto-close abov e. The added feature here is quick closing
once the BM (beam) input has been activ ated and cleared.
I.e The gate is opening; a car enters the beams and passes right through. The BM (beam) input is now clear
again and the gate immediately closes.
If the gate reaches the full open position the pre-programmed auto-close timer times out after which the
gate will begin closing.
Except when used in conjunction with Complex auto-close mode.
