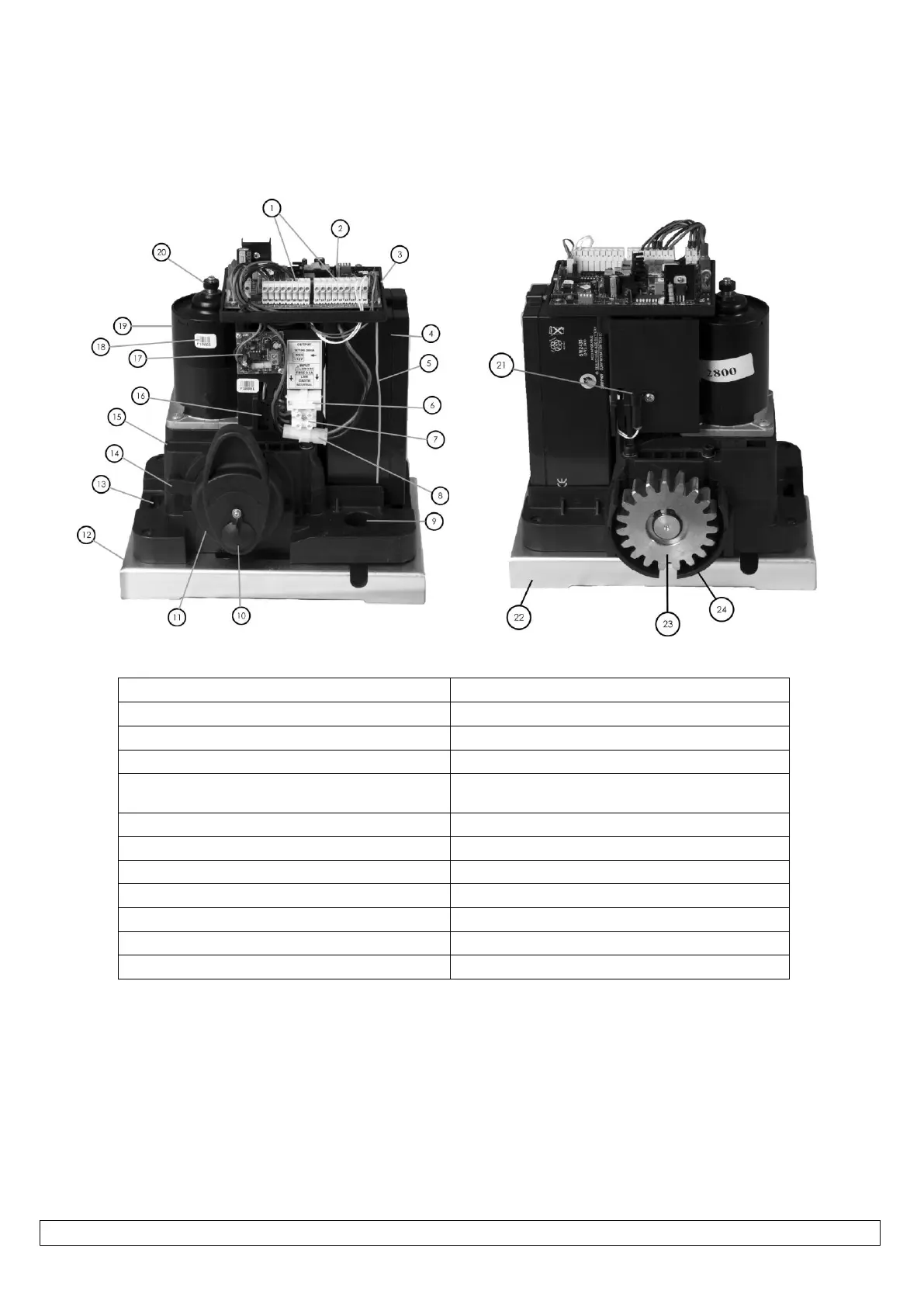

E.T. Systems UMPETHA - Component Identification

UMPETHA 082009/072010.014
4
1. Plug in terminal connectors
13. Motor mounting slot
2. Control card
14. Manual override cam sensor magnet
3. Control card holder
15. Gearbox housing
4. Battery
16. Manual override cam reed switch sensor
5. Antenna
17. DC to DC switch-mode 12V Aux supply module
(300mA peak)
6. 220Vac 500mA fast blow fuse for primary supply*
18. Serial number
7. 220Vac 15A fixed terminal connections*
19. 24Vdc Fixed magnet motor
8. Inline unidirectional battery plug (polarized)
20. Revolution counter magnet
9. Cable entry point
21. Closed limit reed switch sensor
10. Manual override lock with protection flap
22. Base plate
11. Manual override cam
23. Pinion gear
12. Base plate
24. Pinion gear protection flange
*For built in transformer model.
