E-Z-GO MPT 800 Technician's Repair And Service Manual

ELECTRONIC SPEED CONTROL (48V)
Page F-36
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings

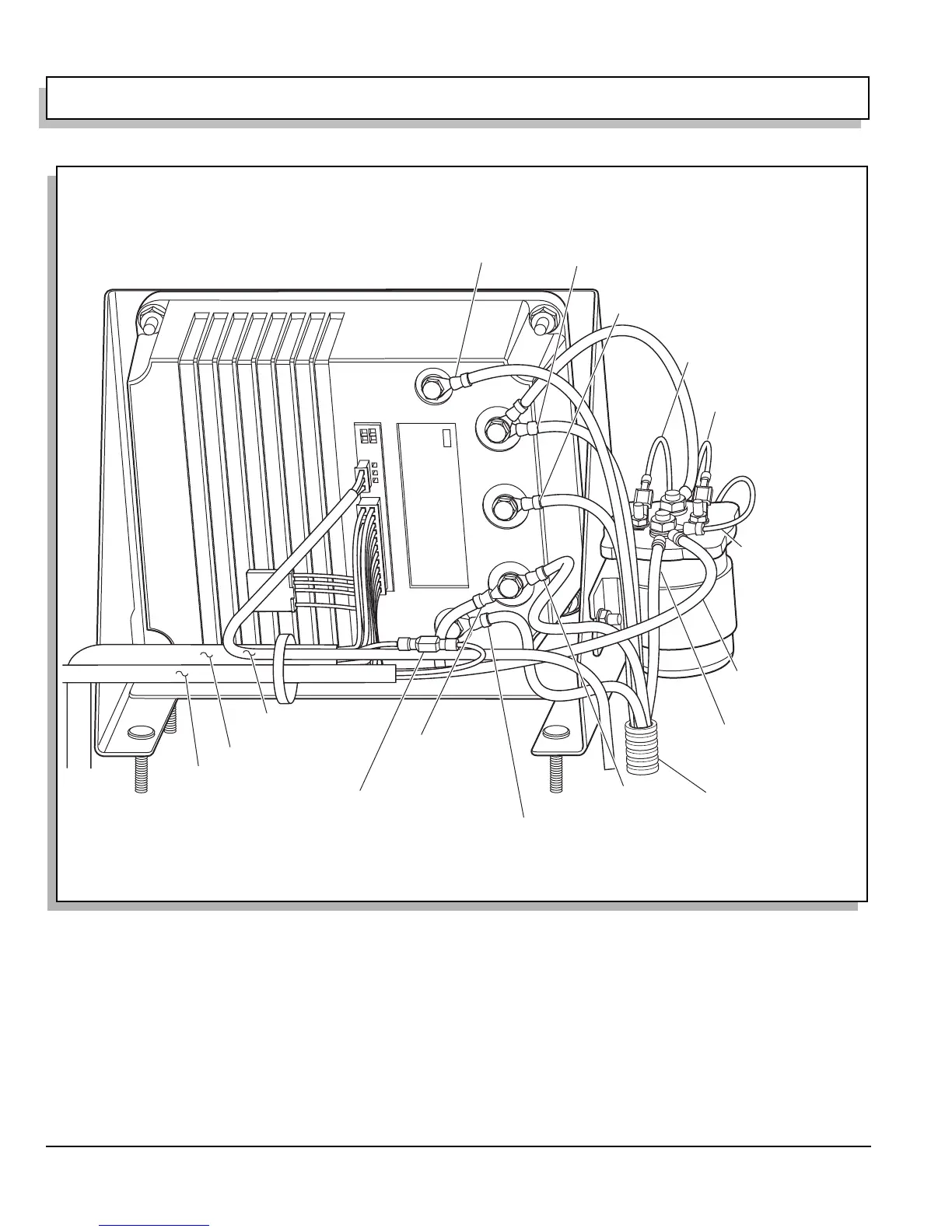

Fig. 17 Controller Wiring
J1
J2
J3
F1
F2
B+
B-
M-
#10 Black
From Motor F2
(Power Harness)
#4 Black
From Motor A1
(Power Harness)
#10 White
From Motor F1
(Power Harness)
#4 Black
From Motor A2
(Power Harness)
#18 Yellow
From J1 Pin 5
(Control Harness)
#18 Blue
From J1 Pin 17
(Control Harness)
#18 Red
From Tow
Switch and
Reverse Buzzer
(Control Harnes
s)
#10 White
From Charger
Receptacle
#4 Black
From Battery (-)
(Power Harness)
#4 Black
From Battery +
(Power Harness)
#10 Black
From Charger
(Charger Harness)
#18 Red/White
From Tow Switch
(Control Harness)
To Ignition Interlock
(Charger Receptacle)
Control Harness
Charger Receptacle
Harness
Speed Sensor
Harness
Power Harness
