E-Z-GO MPT 800 Technician's Repair And Service Manual

K
BRAKES - REAR MECHANICAL
Page K-1
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
BRAKE SYSTEM OVERVIEW
General Description
This vehicle is equipped with a mechanically activated
rear drum brake system. The brake system consists of a
service brake and parking brake pedal, parking brake
release linkage, compensator assembly, equalizer link,
brake cables and self adjusting wheel brake assemblies
(Ref Fig. 1 on page K-1).
Although the brake system is similar to an automobile, it
is different in important ways. The system operates in
a very severe environment. Fertilizer, dust, grass clip-
pings, tree roots and other objects can cause corrosion
and physical damage to the brake components. Unlike
automotive hydraulic brakes, mechanical brakes depend
on the travel of the brake cables to move the brake
shoes against the brake drums. The travel of the brake
cables is governed by the brake pedal. If the cables can-
not travel far enough to absorb the slack (free travel) in
the system and still apply the shoes to the drums, the
braking effort at the wheel brake will not be adequate.
The self adjusting mechanism in the wheel brakes

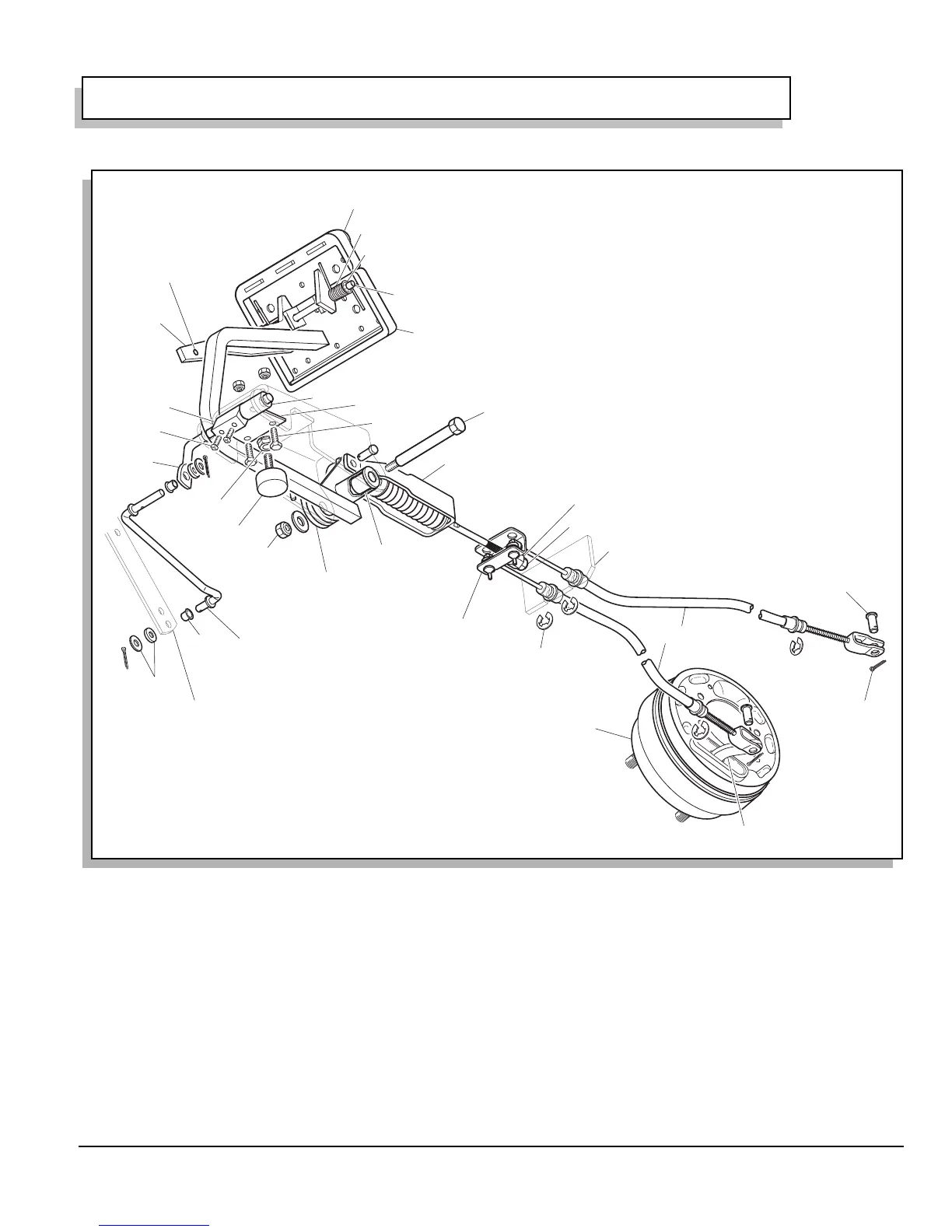

Fig. 1 Mechanical Brake System
Brake Cables
Retaining
Ring
Cotter Pin
Clevis Pin
Brake Lever
Self Adjusting
Wheel Brake
Spherical Nut
Jam Nut
Brake Pedal Pivot Bolt
Brake Pedal
Bushing
Compensator
Assembly
Pedal
Latch
Arm
Kick Off
Cam
Torsion Springs
Washers
Bushing
Cam
Pivot
Spacer
Torsion
Spring
Cap Screw
Equalizer
Link
Set
Screw
Pedal Bumper
Nylock Nut
Lock Nut
Identification
Hole
Parking Brake Pedal
Catch Bracket
Part of Frame
Parking Brake
Release Linkage
Part of
Accelerator Pedal
Push Nut
Hinge Pin
Service
Brake Pedal
