FRONT SUSPENSION AND STEERING
Page E-5
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
FRONT SUSPENSION
Front Shock Absorber Replacement
Tool List Qty. Required
Wrench, 9/16" ............................................................. 1
Remove the nut (1) from the bottom of the shock
absorber (2) at the front axle (3) (Ref Fig. 6 on page E-5).
Compress shock absorber to clear the mounting bracket.
Loosen the nut securing the top of the shock absorber to
the vehicle frame and then rotate the shock absorber
while holding the nut in place with a wrench.
Remove the shock absorber.
Installation of shock absorber is reverse of disassembly.
Mounting nuts should be tightened until rubber bushings
(4) expand to diameter of shock absorber washers (5).

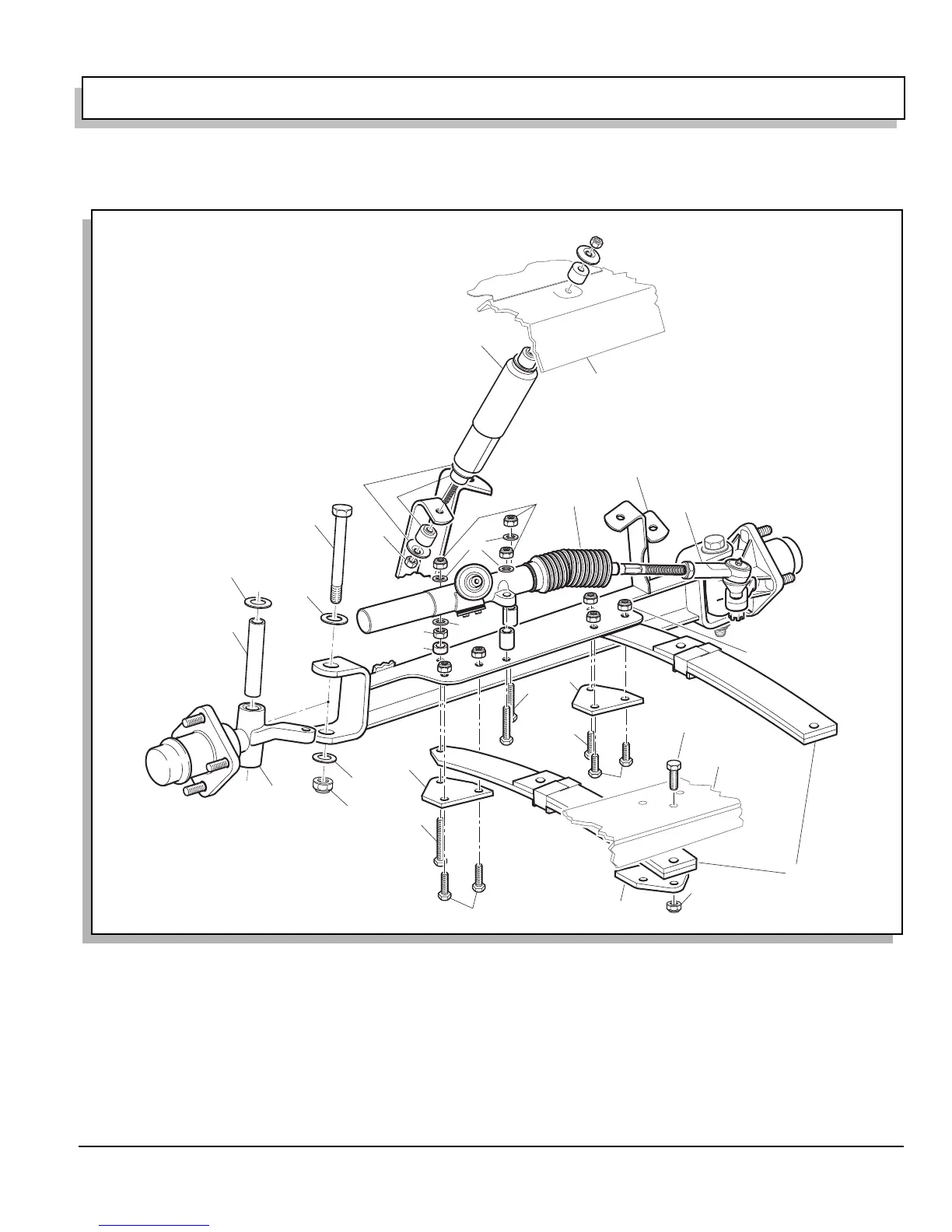

Fig. 6 Front Suspension Components
27
8
6
18
17
11
*NOTE: Tie Rod Not
Shown for
Clarity
29
20
13
14
3
25
Part of
Frame
1
5
4
9
10
16
15
2
Part of
Frame
12
21
23
22
24
24
26
7
28
18
19
To Next Page
