REAR AXLE
Page N-3
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings
Axle Shaft Replacement
Carefully insert the axle shaft and bearing through the oil
seal. Rotate the shaft until the spline engages with the
differential side gears. Install the outer snap ring.
Coat the outboard spline of the axle with a commercially
available anti-seize compound. Install the brake hub and
drum, thrust washer, nut and new cotter pin (Ref Fig. 9
on page N-3).
Tighten the castellated axle nut to 70 ft. lbs. (95
Nm) torque minimum, 140 ft. lbs. (190 Nm)
torque maximum. Continue to tighten until the slot in the nut
aligns with the cotter pin hole. Do not back off on the nut install
cotter pin, to do so will result in damage to the hub and drum
assembly.

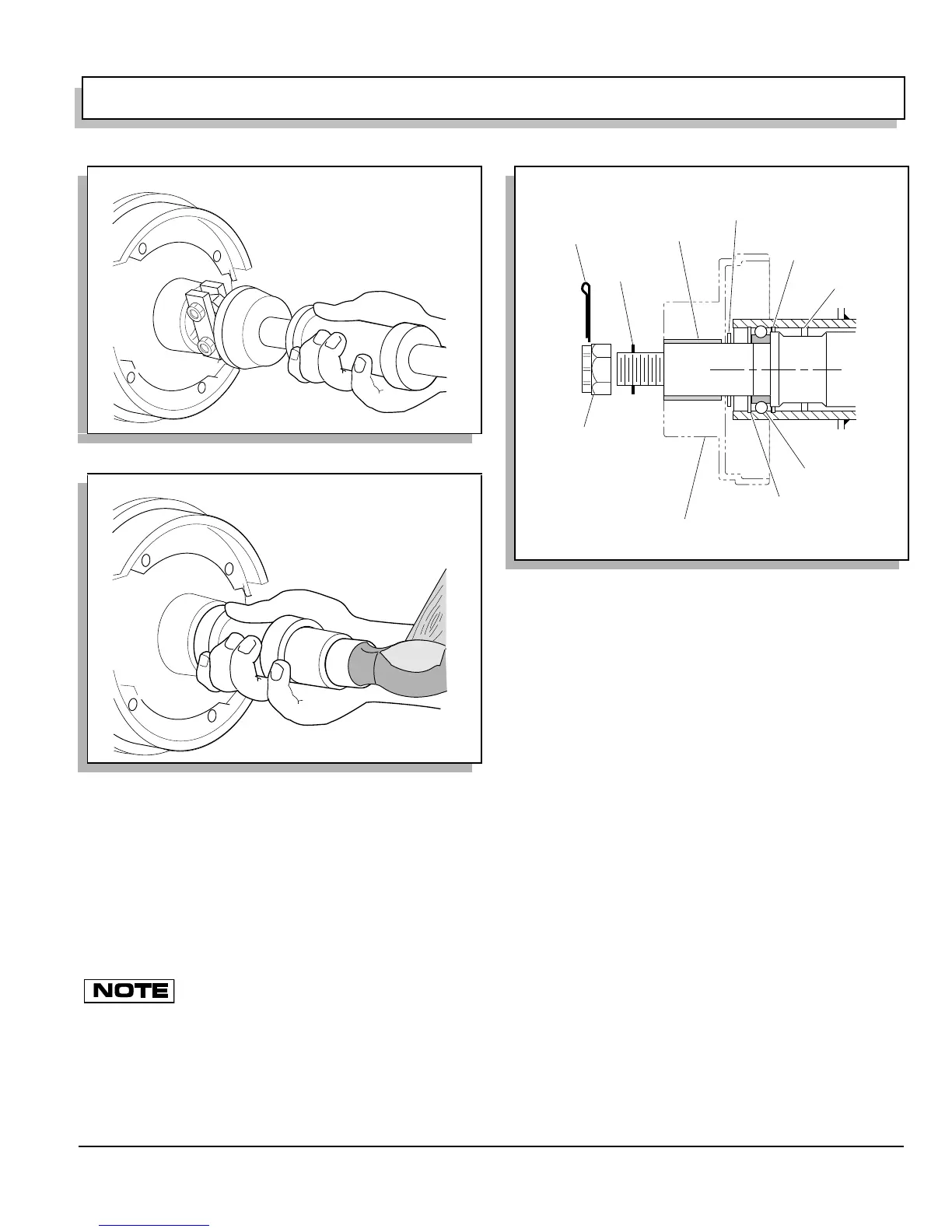

Fig. 7 Removing Seal
Fig. 8 Installing Seal
Fig. 9 Cut Away of Outer Bearing and Brake Drum
Washer
Inner Snap
Ring
Seal
Bearing
Outer
Snap Ring
Brake Drum
Axle Nut
Cotter Pin
Lock
Washer
Spline
