EC5000
- 14 -
- 15 -
unit:mm
Installation and Wire Layout
2

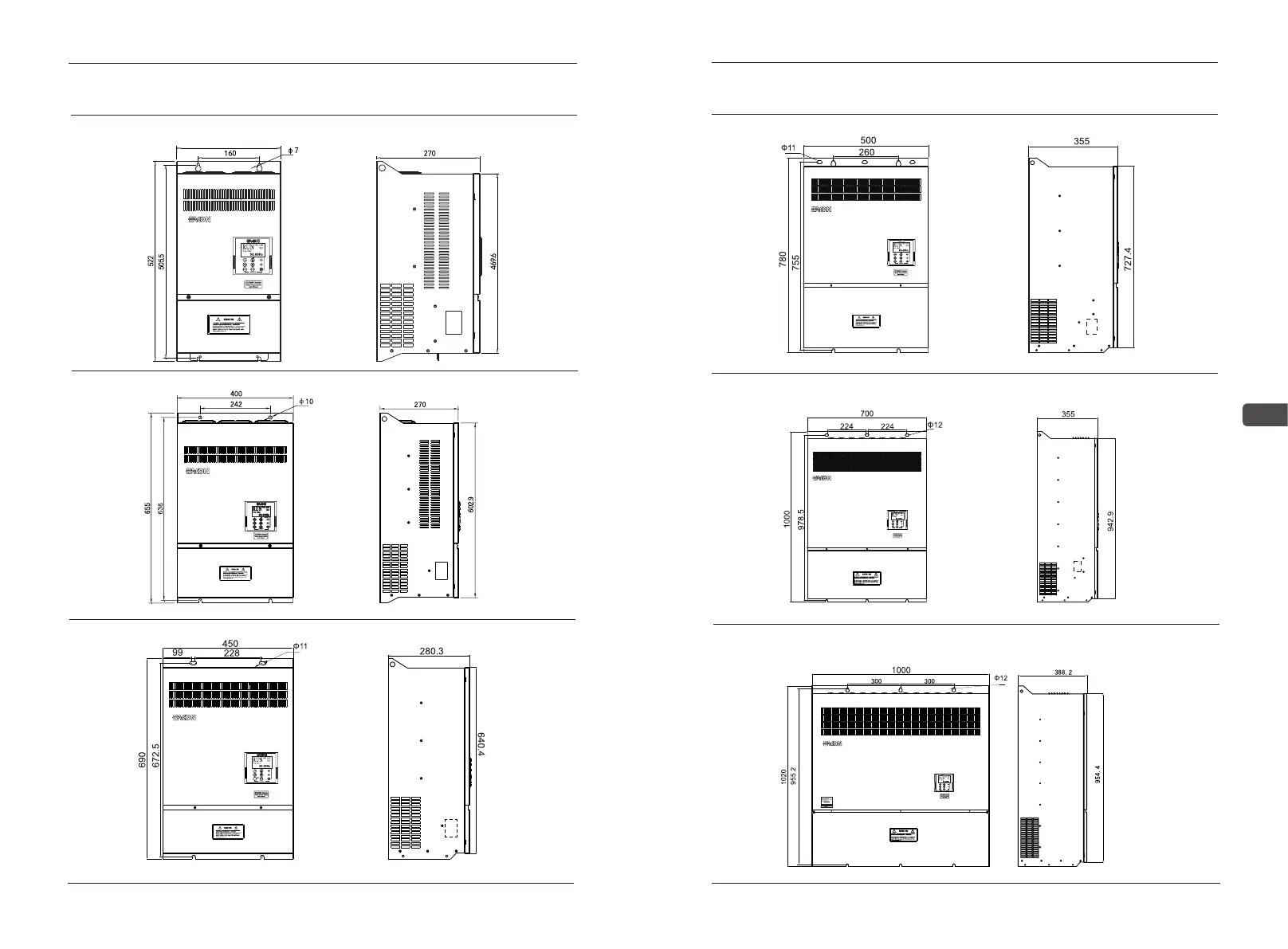

Frame90:EC501060G185P43B、EC50185G0220P43B
EC5000
unit:mm
Installation and Wire Layout
Frame60:EC50045G0055P43B、EC50055G0075P43B
Frame70:EC50075G0090P43B、EC50090G0110P43B
Frame80:EC50110G0132P43B、EC50132G0160P43B
FrameA0:EC50250G0280P43B、EC50280G0315P43B、EC50315G0350P43B
EC50350G0400P43B
FrameB0:EC50400G0450P43B、EC50450G0500P43B、EC50500G0560P43B、
EC50560G630P43B
Notice: The base is optional
Notice: The base is optional
Notice: The base is optional
Notice: The base is optional
Notice: The base is optional
To Next Page
