EC5000
Installation and Wire Layout
EC5000
Installation and Wire Layout
- 24 -
- 25 -

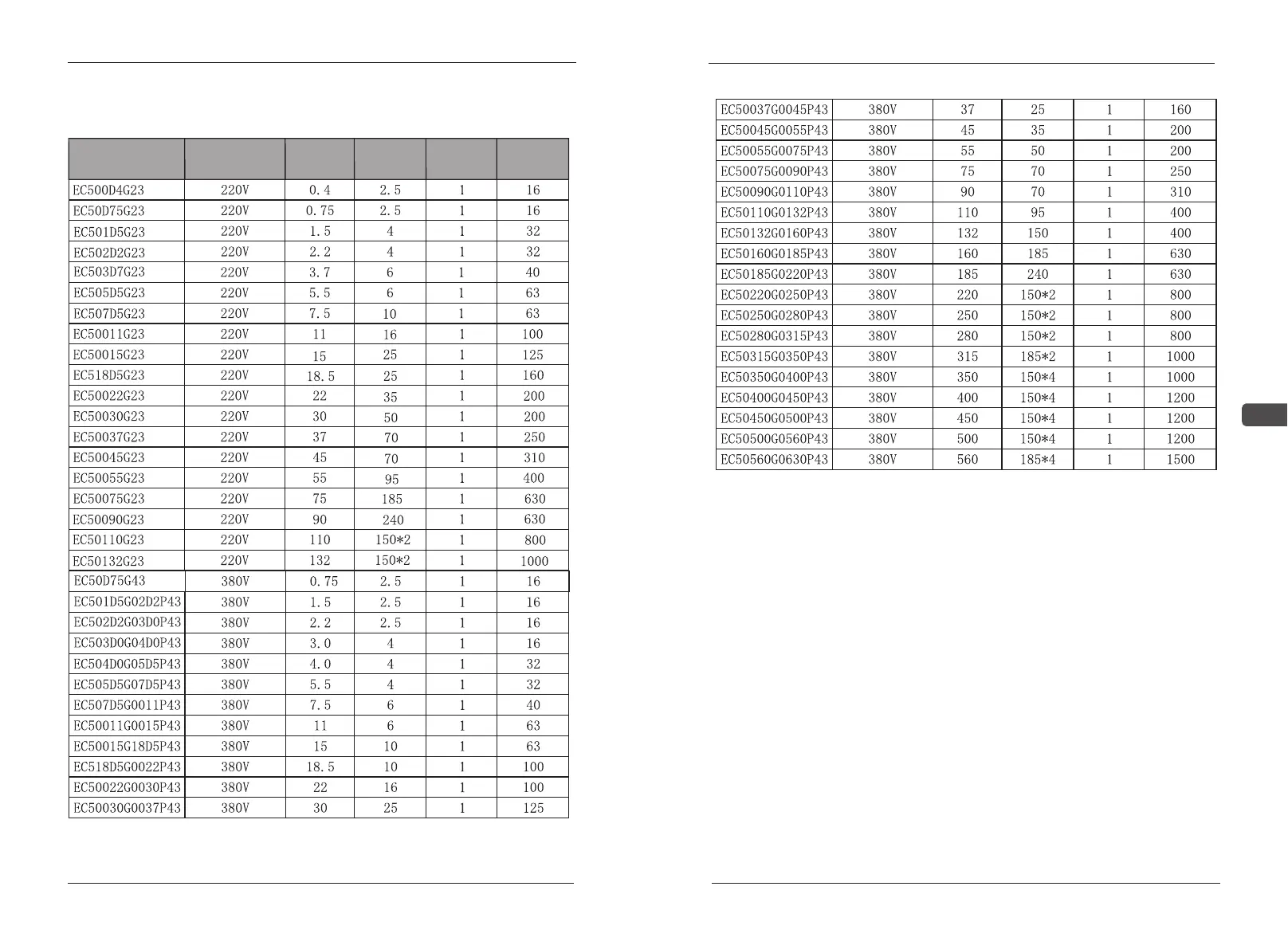

The main wiring diagram of EACN AC DRIVE
Motor
KW
Diameter
of main
wire mm²
Diameter
of control
wire mm²
Air
breaker A
Input Voltage
KW
Type
2
