EC5000
- 54 - - 55 -
Description of Functional Parameter
5
EC5000
Description of Functional Parameter
setting
Select running order Select frequency order
From control panel
From control circuit terminal
From serial communication
From serial communication
From serial communication
From serial communication
From serial communication
From control panel
4
5
6
7
From serial communication
From terminal FV&FI
8
A04 Display units setting limit：0~3999 factory default:0
0:0.01Hz unit
1：0.1% unit
2~39: 120*Motor Frequency/(number of motorpole)=r/min
40~3999: Set the decimal point position at the fourth bit value 3~1 bit
determine the setvalue under 100% frequency
A05 Stopping method setting limit：0~3 factory default:0
Select suitable way to stop:
0:low down and stop in first time (factory defaults)
1:slide to stop
2:slide to stop in first retard time
3:slide to stop in second retard time

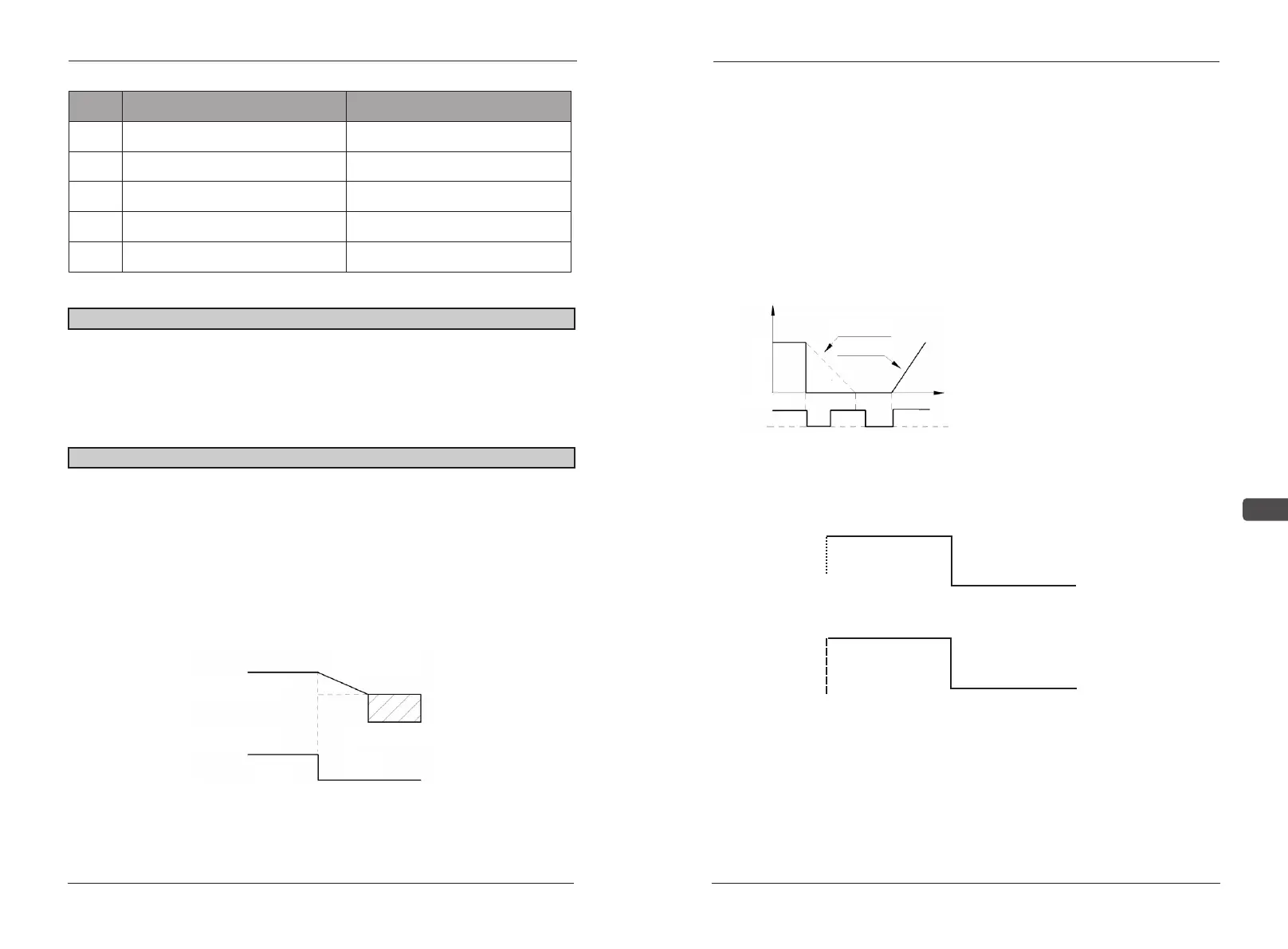

SETTING 0:low down and stop in first time (factory defaults)
Minimum output frequency
（frequency start of DC brake ）
Deceleration tim
Run instruction
Stop the DC braking time
ON
OFF
In running order OFF in right and opposite direction, motor retards in
retard time 1(A19), and brakes to stop by direct current. If short brake
time and big inertia capacity,there will be over voltage(OU)error during
retarding. In such circumstances, just extend retard time or install an
optional brake resistance (Can be installed in EC5000).
Braking moment of force:
Without brake resistance:20% of motor rated moment force.
with brake resistance:150% of motor rated moment force.
SETTING1:slide to stop
SETTING2: slide to stop with first retard time
Select increase/decrease speed 1(example)
AC drive stops when receiving STOP order and retard to stop. AC drive
receiving running order and runs after certain time of retard to stop but less than
C04 (Min.stop time). AC driver stop running during C04 time.
output
frequency
Run instruction
Deceleration time 1
Accelerating time 1
Glide
Motor begins to slide when cancel
right(opposition) direction running
order
ON
ON
ON
Output frequency
When the stop command
input AC drive output
disconnect
Run instruction
ON
OFF
