Description of Functional Parameter
5

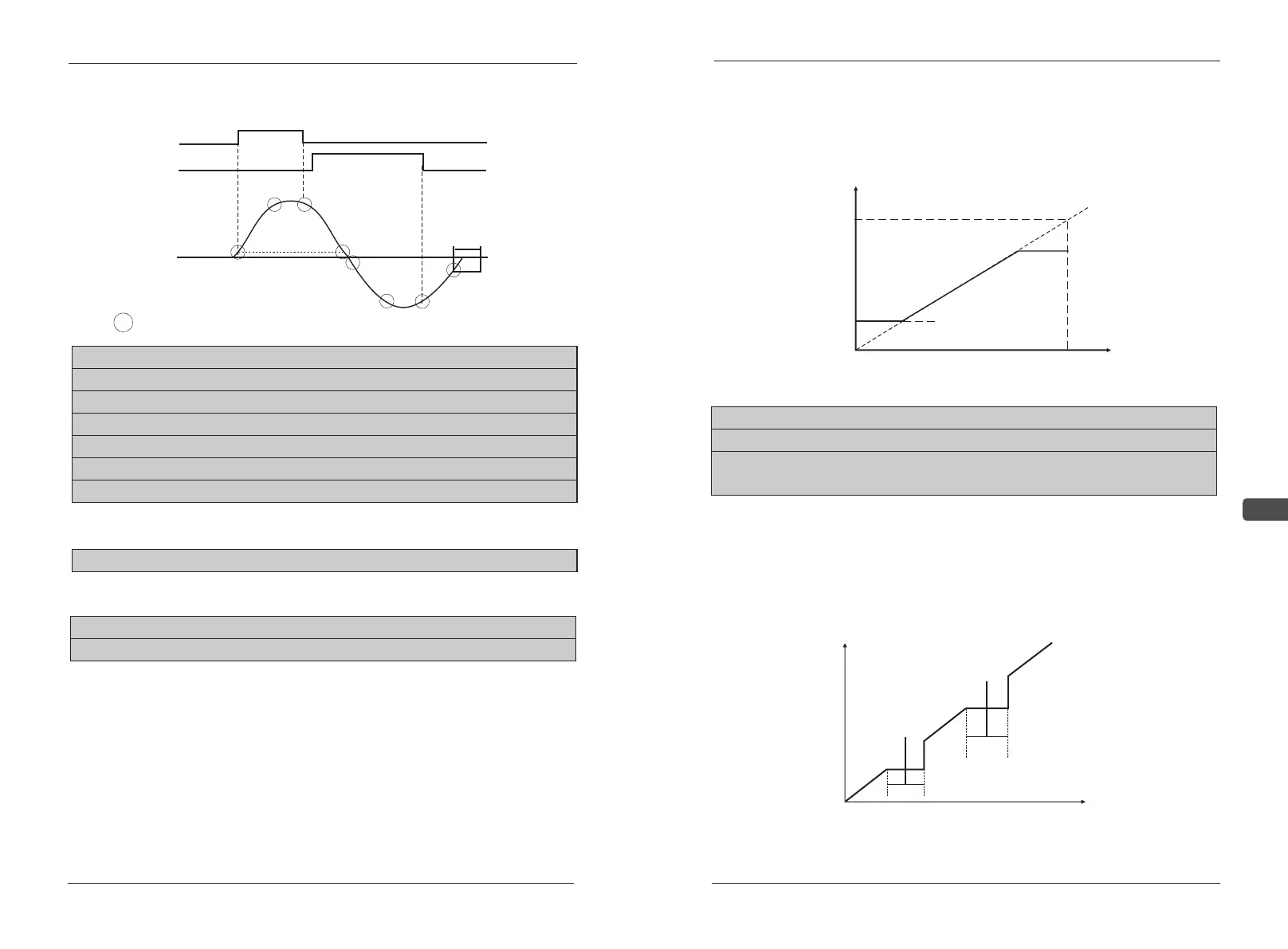

A37 Jump freq 1 setting limits:0.00Hz~400.00Hz factory default:0.00Hz
A38 Jumpfreq 2 setting limits:0.00Hz~400.00Hz factory default:0.00Hz
A39Jump Band width setting limits:0.00Hz~25.00Hz factory default:
1.00Hz
This function forbid or jump the critical frequency for motor to avoid
resonance. This function can also used for the dead area control. Set this
value to be 0.00HZ, this function is not working. Set jump Frequency 1 or
2:A37≤ A38-A39 if this requirement can not be meet, AC drive shows
constant setting error “PAF”.
Inner frequency order
Upper limits
frequency order
Lower limits
Frequency order
Setting frequency order
(A36)
(A35)
The frequency assigns
Output frequency
A37
A38
A39
A39
EC5000
Positive rotation
Run instruction
Reverse rotation
Run instruction
output frequency
Minimum output
frequency
Decelerating
DC brake time stop
Minimum output
frequency
Decelerating
Accelerating
S shape property
Accelerating
time
A27 Frequency1 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
A28 Frequency2 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
A29 Frequency3 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
A30 Frequency4 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
A31 Frequency5 setting limits:0.00 Hz ~400.00Hz factory default 0.00Hz
A32 Frequency6 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
A33 Frequency7 setting limits:0.00 Hz ~400.00Hz factory default:0.00Hz
Select multi-pace frequency 1 ~7 by ON/OFF combination of terminal
function SS1、SS2 or SS4 inner control multi-pace speed.
A34JOG/frequencysetting limits:0.00 Hz ~400.00Hz factory default: 6.00Hz
JOG/START Frequency order is valid when multi-function joint terminal
Input selected to be jog/start order or key jog start order.
A35 Freq Upper Limit setting limits:0%~100% factory default:100%
A36 Freq Lower Limit setting limits:0%~100% factory default:0%
Upper limit Frequency: Set the up limit Frequency with unit of 1%
max. Frequency
Lower limit Frequency: Set the lower limit Frequency with unit of 1%
max. Frequency
When Frequency order is 0, AC drive continue running under the
lower limit. But, if the lower limit Frequency is smaller than min.
Frequency output(A16), AC drive doesn’t work.
Description of Functional Parameter
The value of Parameter A35 must be higher than the lower limit of the output
frequency of Parameter A36. 100% is the setting value of Parameter A11.
The upper limit of output frequency = (A11*A35)/100
