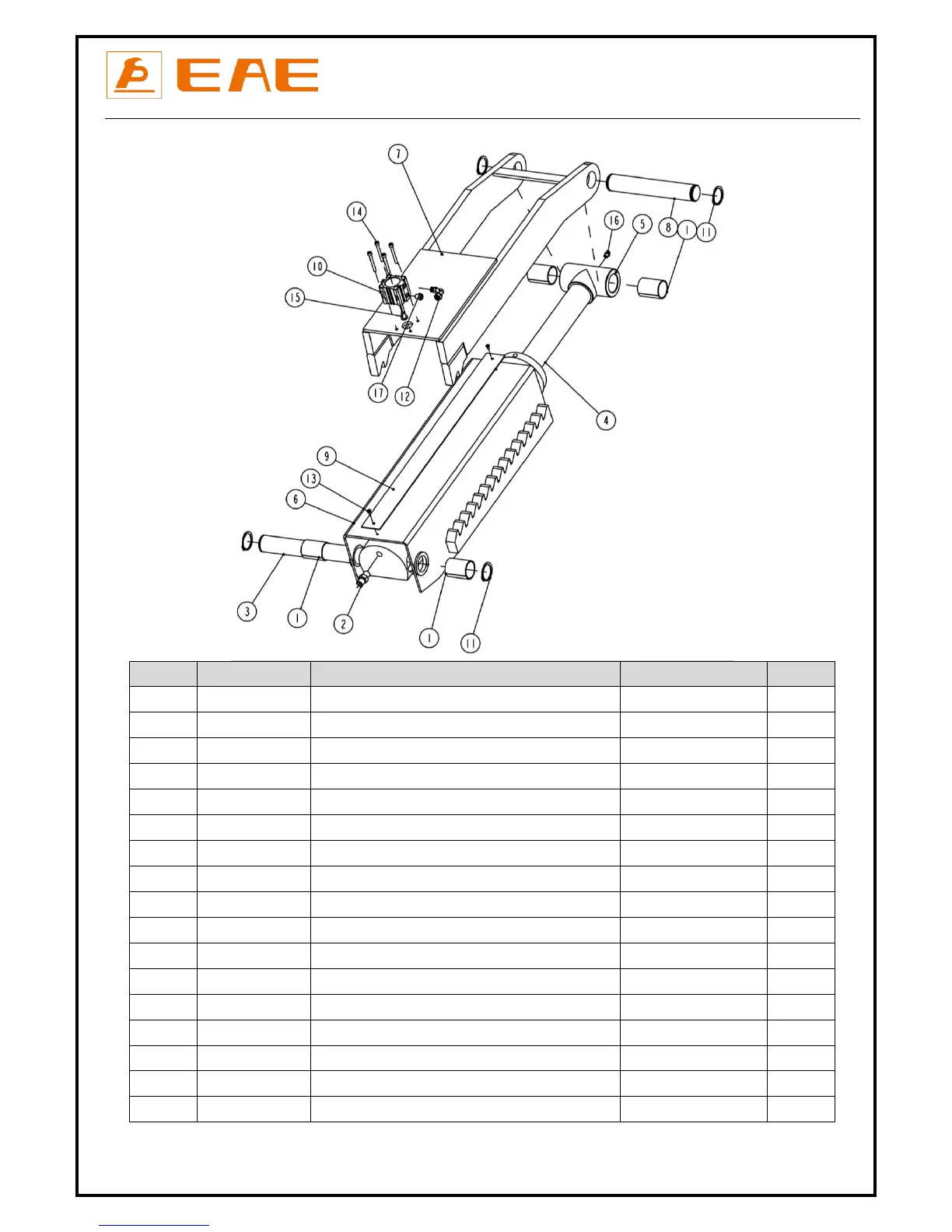

EAE EE-6503V2 - Page 32

Installation, Operation and Parts Manual
EE-6503V2
32
Pos.
Code
Name
Specification
Qty
1
205101030
Bearing
3550-SF-2X
4
2
615019006
Straight throttle valve
6501-A4-B15
1
3
410200101B
Rotate shaft of oil cylinder
6503-A3-B1
1
4
615020002
The secondary oil cylinder
6503-A3-B2
1
5
410203403
Oil cylinder connector
6503V2-A3-B6
1
6
614020212B
Sheath for secondary oil cylinder
6503V2-A3-B3
1
7
614020213
Mechanic lock assembly
6503V2-A3-B5
1
8
410203251
UP shaft of oil cylinder
6503V2-A3-B8
1
9
410203290
Stainless steel pad plate
6503V2-A3-B9
1
10
310501001
Pneumatic cylinder
CQ2B32X20
1
11
204301012
Circlip
D35_GB894-2
4
12
310102024
Quick pneumatic connector
KLL8-01
1
13
202103006
Cross socket flat head screw
M4*8
2
14
202109014
Hex socket cylinder head screw
M5X45_GB_T70_1
4
15
202110004
Hex socket button head screw
M8X12_GB70_2
1
16
208106001
Straight oil cup
M8X1_JBT7940_1
1
17
310201003
Silencer
SLM01-R1-8
1
