EAE EE-6503V2 - Annex 2: Hydraulic Diagrams and Parts

Installation, Operation and Parts Manual
EE-6503V2
27

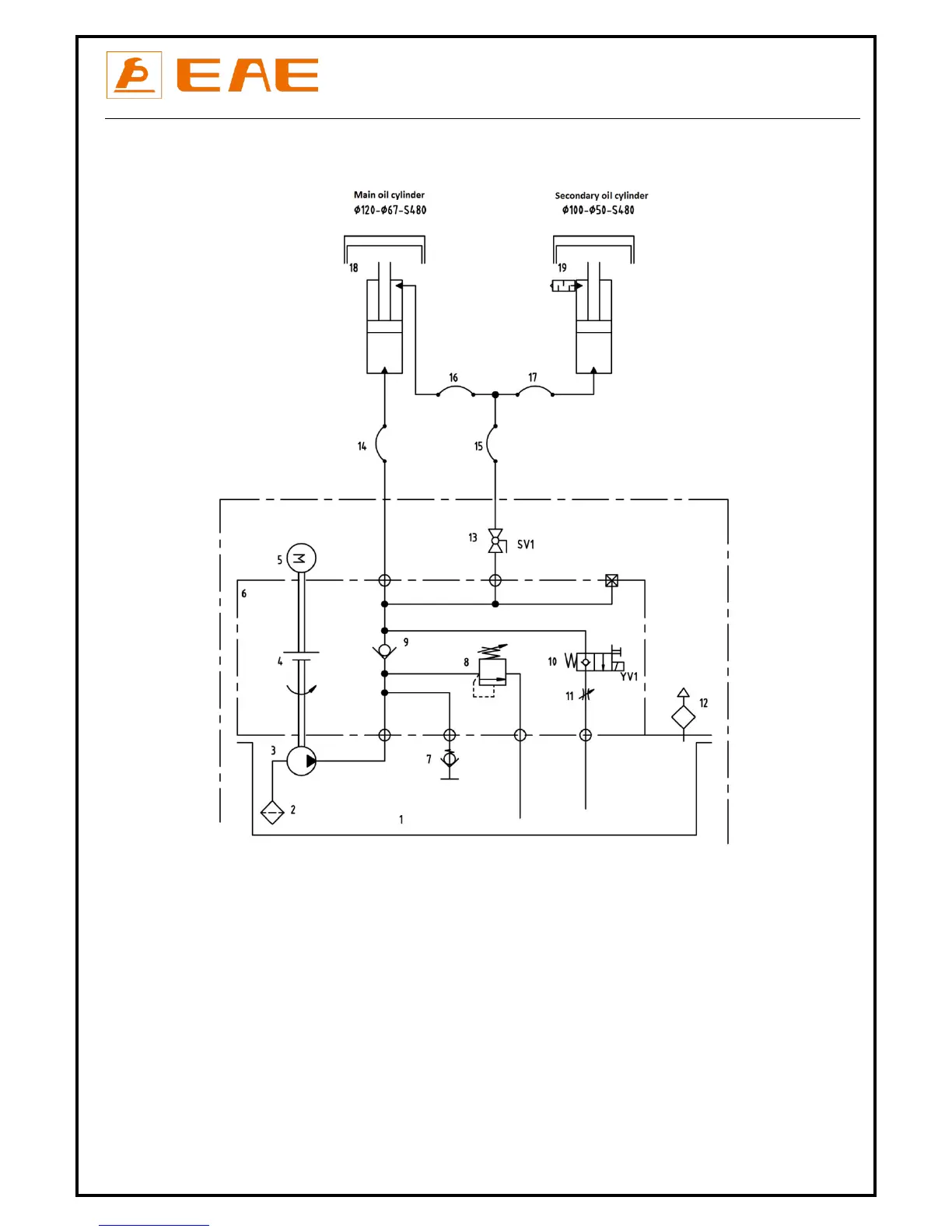

Annex 2, Hydraulic diagrams and parts list
1.Oil tank
11.Flow-control valve
2.Oil filter
12.Oil tank cover
3.Gear pump
13.Leveling ball valve
4.Coupling
14.Rubber oil hose
5.AC motor
15.Rubber oil hose
6.Hydraulic block
16.Rubber oil hose
7.Cushion valve
17.Rubber oil hose
8.Over-flow valve
18.Main oil cylinder
9.Single way valve
19.Seondary oil cylinder
10.Solenoid unloading valve
