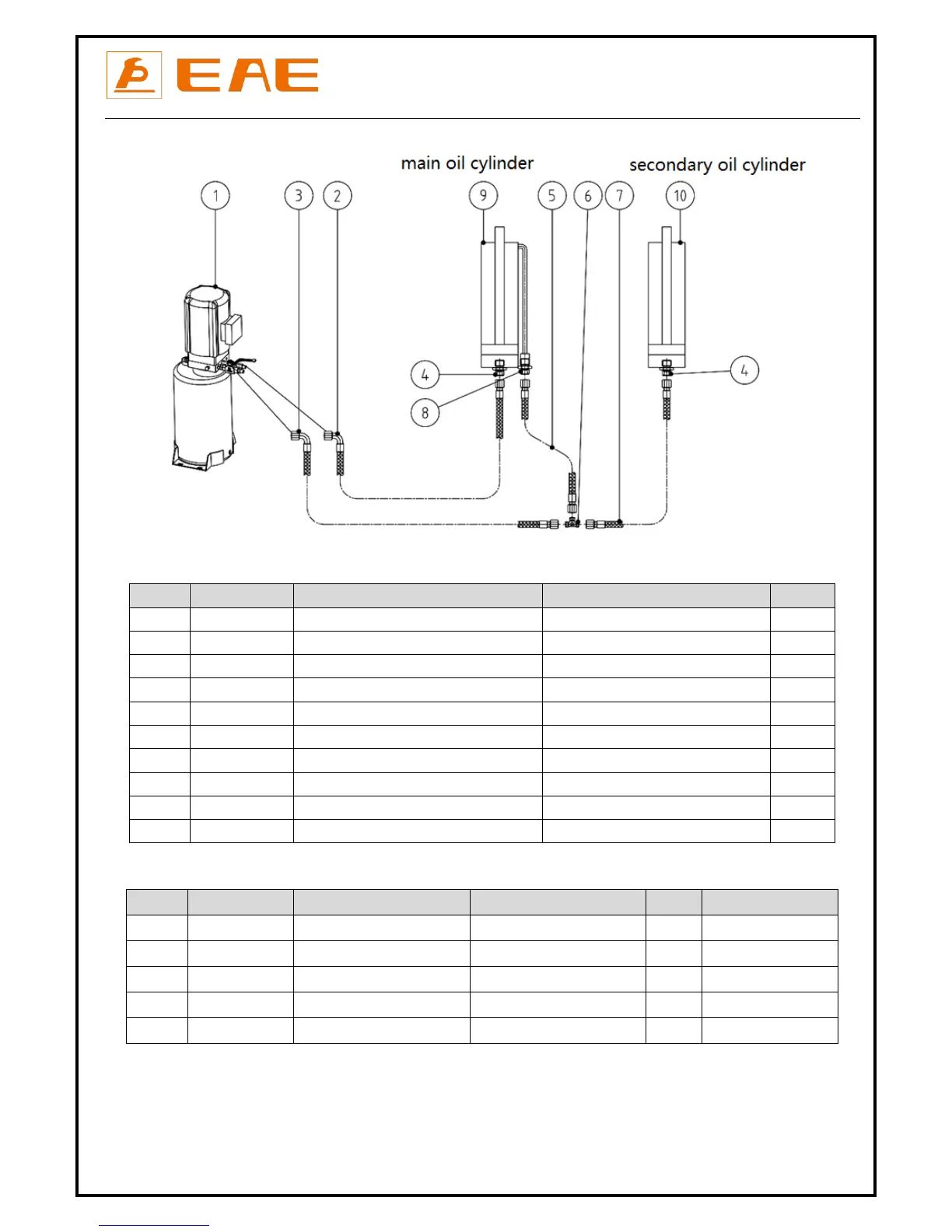

EAE EE-6503V2 - Page 28

Installation, Operation and Parts Manual
EE-6503V2
28
Pos.
Code
Name
Specification
Qty
1
Hydraulic power unit
2.2kW
1
2
624001061
Rubber oil hose
L=4200
1
3
624001052
Rubber oil hose
L=3800
1
4
615019006
Straight throttle valve
6501-A4-B15
2
5
624001056
Rubber oil hose
L=350mm
1
6
410210181
Three way connector
6603B-A9-B7
1
7
624001037
Rubber oil hose
L=1900
1
8
615019005
Connector B
6501-A4-B16
1
9
615020001
Main oil cylinder
6503-A4-B1
1
10
615020002
The secondary oil cylinder
6503-A3-B2
1
Seal Rings
Pos.
Code
Name
Specification
Qty
Remark
1
207103009
Composite seal ring
KGD120*95*22.4*6.35
1
main cylinder
2
207102004
Y seal ring
SD67*77*6
1
main cylinder
3
207105018
Dust proof ring
DH67
1
main cylinder
1
207103010
Composite seal ring
KGD100*75*22.4*6.35
1
secondary cylinder
2
207105007
Dust proof ring
DHS50（50*58*6）
1
secondary cylinder
