Installation, Operation and Parts Manual
EE-6503V2
31
Pos.
Code
Name
Specification
Qty
1
321004006
AFC Air filter combination
AFC2000
1
2
310101015
Pneumatic connector
KLC8-02
2
3
123010201
Air hose
DE8
1
4
310102015
Pneumatic connector
KLL 02
4
5
310201002
Silencer
SLM02 R1/8 (M8)
3
6
310401001
Pneumatic directional valve
3V210-08DC24V
1
7
310103006
Three-way connector
KLE-8
1
8
310501001
Pneumatic cylinder
CQ2B32*20
2

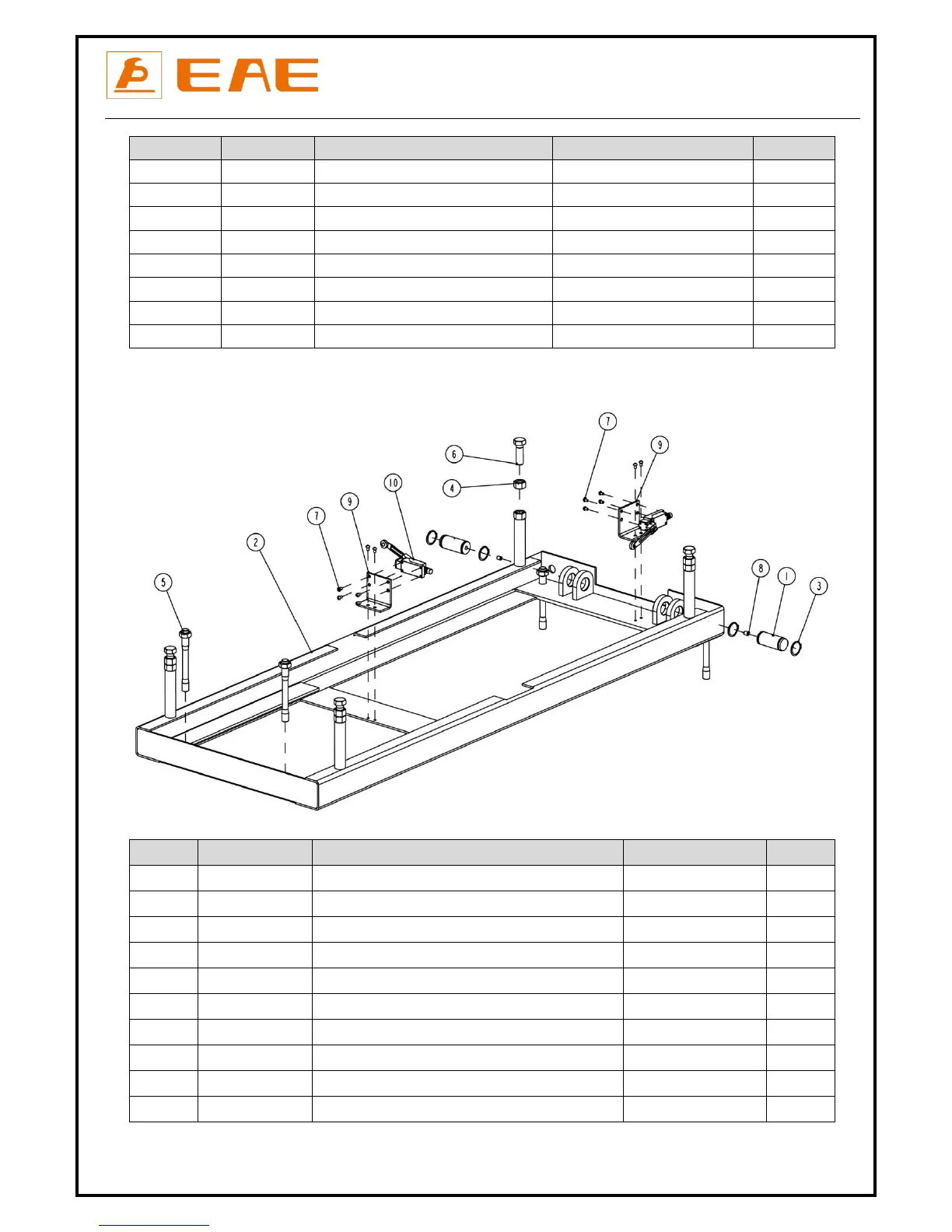

Annex 4, Mechanically exploded drawings and parts list
Pos.
Code
Name
Specification
Qty
1
410200031
Shaft A
6503-A2
2
2
614020211
Base plate
6503V2-A1-B1
1
3
204301011
Circlip
D30-GB894_1
4
4
203101009
Hex nut
M16-GB_T6170
4
5
201201005
Expansion bolt M16*120
M16X120
4
6
201102041
Hex head full swivel screw
M16X50_GB_T5781
4
7
202101020
Cross socket cap head screw M5*8
M5X8_GB818
12
8
208106002
Straight oil cup
M8YP_GB7940_4
2
9
410470271
Installation plate for limit switch
TSS30-A8
2
10
320301011
Limit switch
TZ8108
2
