EAE EE-6503V2 - Annex 3: Pneumatic Diagrams and Parts

Installation, Operation and Parts Manual
EE-6503V2
30
Pos.
Code
Name
Specification
Qty
320201006
Motor (415V)
415V-2.2KW -3PH-50HZ-2P
1
320201001
Motor (220V)
220V-2.2KW -1PH-50HZ-2p
1
320201002
Motor (230V)
230V-2.2KW -1PH-50HZ-2P
1
320201003
Motor (240V)
240V-2.2KW -1PH-50HZ-2P
1
320204016
Motor (380V)
380V-3.0KW -3PH-50HZ-2P
1
320204017
Motor (400V)
400V-3.0KW-3PH-50HZ-2P
1
320204018
Motor (415V)
415V-3.0KW -3PH-50HZ-2P
1
10
330301001
Cushion valve
HZYF-C1
1
11
330302001
Single way valve
DYF-C
1
12
330304001
Over flow valve
EYF-C
1
13
330305002
Throttle valve
-
1
14
330307001
Two-way ball valve
GE2G1/4111AB
1
15
330308006
Solenoid unloading valve
DHF06-220H/DC24
1
16
330401005
Oil sucking tube
YX-BL-*
1
17
330402001
Oil back tube
YH-D
1
18
330404001
Coupling
YL-A
1
19
330403001
Oil filter
YG-C
1
20
330201005
Gear pump assembly (3Ph/2.2KW motor)
CBK-F220/CBK-2.1F
1
20
330201007
Gear pump assembly ( 3Ph/3.0KW motor)
CBK-F233
1
20
330201004
Gear pump assembly (1Ph/2.2kW motor)
CBK-F216
1
NOTE: The motor is different for differnent voltage or capacity.
Please check with our customers service people when order spare parts.

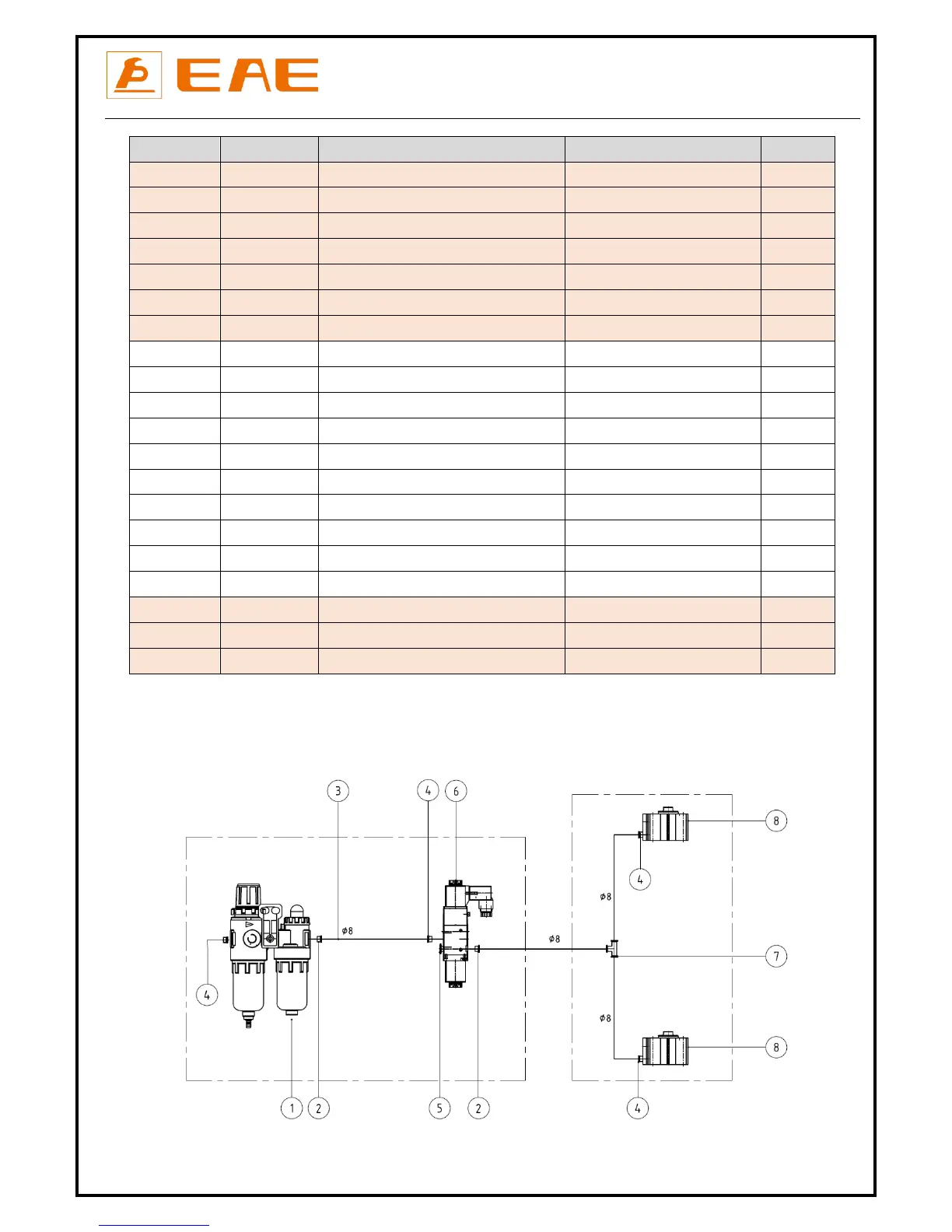

Annex 3, Pneumatic diagrams and parts list
