Operation Indication
Status LED of the pressed rocker button will
be on for the time period selected at “Light
Duration of LED” parameter at “General” tab.
Separate Comm Object
Enable/Disable
Only visible when “Function of LED” selected
as “Status Indication” or “Inverted Status
Indication”. This communication objects is the
input of confirmation for status LEDs. If
selected “Enable” respective communication
object should be linked to an appropriate
group address
Table 5
4.2.1.1.2# Communication#Objects#
!
No
Object Name
Function
Data Type
Flags
1
Rocker1 – Telegr.switch
On/Off
1 bit
DPT 1.001
CWT
On/Off telegrams will be send to group address that is linked to this communication
object.
3
Rocker1 – Status
Comm.Obj.
On/Off
1 bit
DPT 1.002
CWT
Confirmation for On/Off switch telegrams will be received from this communication
object. If these communications object visible, it must link to an appropriate group address.
Otherwise status LEDs will not function correctly. If status confirmation not to be used the
communication object should be disabled by
“Separate Comm Object” parameter.
Table 6
4.2.1.2'Switch'and'Dim'

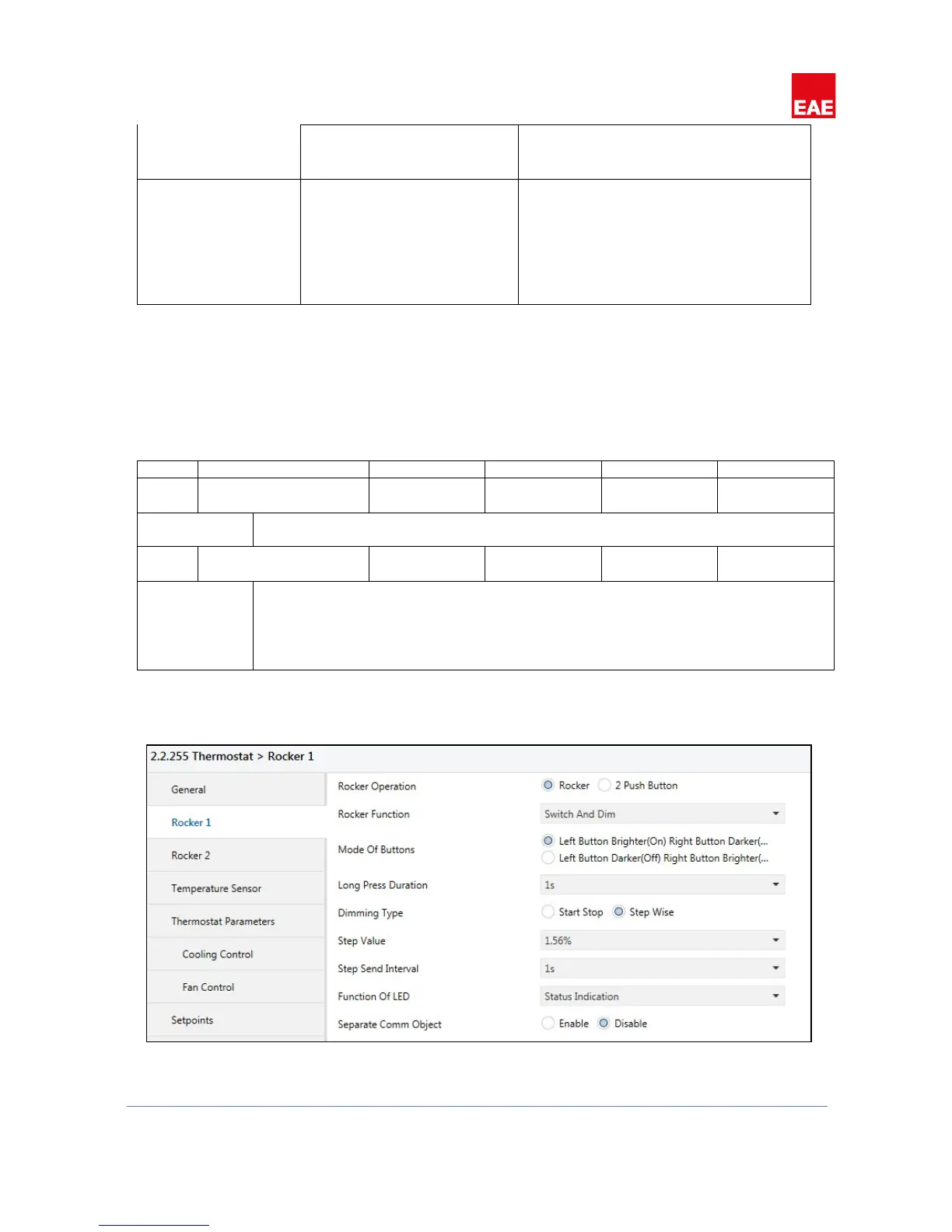

Figure 5
