Eagle Access Control Systems Eagle-2000 series - Output Connections; MAG Lock Solenoid Connections; Alarm and Power Outputs

Slide Gate Operators / Eagle-2000 Series / Eagle-1000 Series

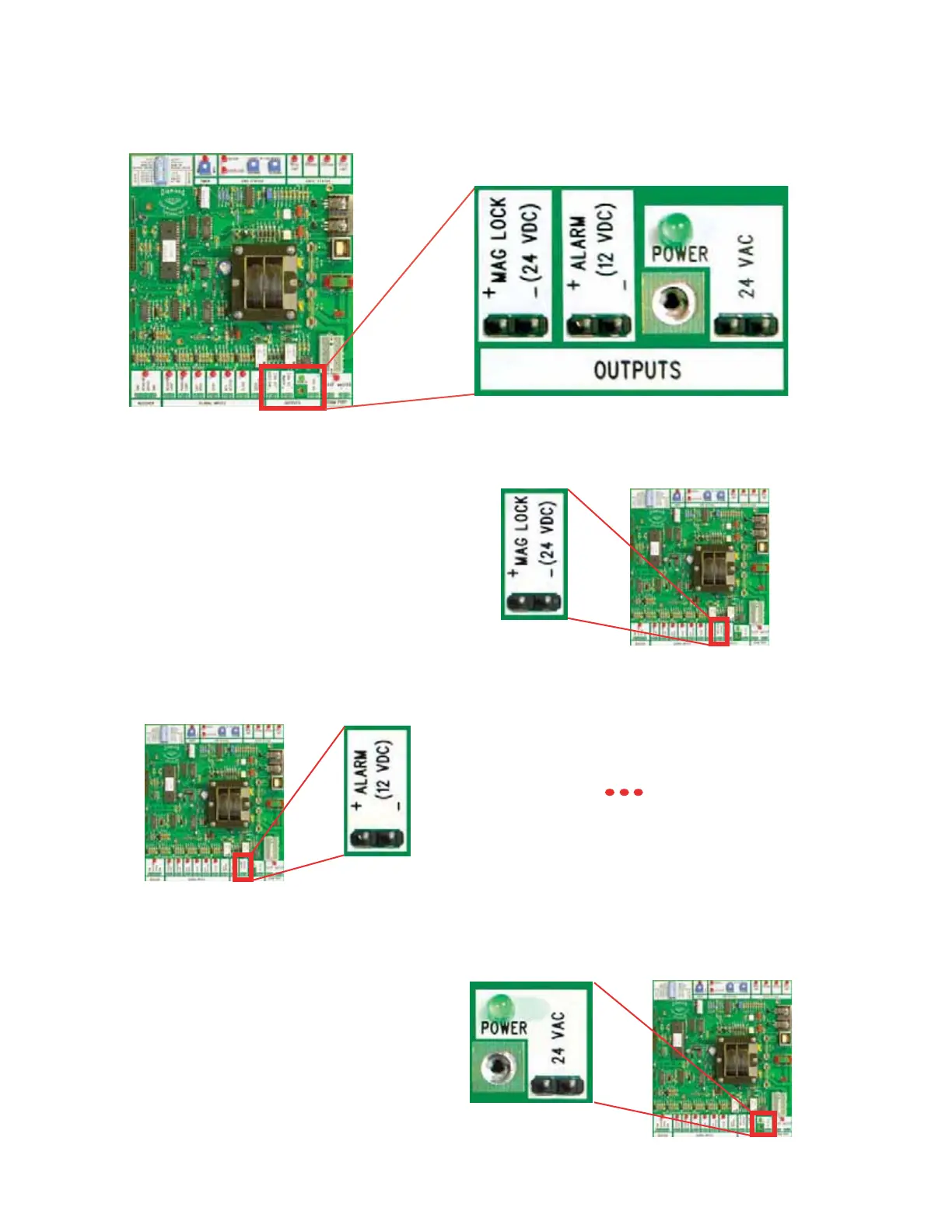

Describing The Output Connections
____________________
Alarm (12 VDC)
Power (24 VAC)
MAG Lock Solenoid Connections (24 VDC)
The Eagle Diamond Control Board
provides a 24VDC and relay output
for MAG Locks or Solenoids.
The Eagle Diamond Control Board
provides 24 VAC Power, which
can be used for loop detectors
and receivers.
Distributed by AFW Access Systems • www.AnchorMiami.com/afwas
(15)
Safety Alarm: If the gate hits an obstruction
twice while closing or opening, the system will
shut down for 5 minutes. On the Diamond
Board, you have two options of reset mode.
Selecting the "off" position will require a
"manual reset" of the board if the previous
happens. However, by selecting the "On"
position, the system will automatically reset
itself.
Entire Output Section
